Sign-in & Sign-up

Customer Sign In Flow

Introduction

MENU Ecosystem has two different Sign-in/Sign-up flows:

  1. Email
  2. Phone number

The Sign-in/Sign-up flow that customers will go through is depending on the Brand's authentication method settings. The brand's authentication method is set on Brand creation and can't be changed later.

For both flows customer's email is the main customer identifier and that is the reason why the customer email needs to be unique. The main difference between the two flows is that the Email customer auth flow starts with the customer providing their email address and the Phone number customer auth flow starts with the customer providing their phone number.

Choose the Sign In method Provide the Main Identifier (Email) Provide the Main Identifier (Phone) Provide The One time password

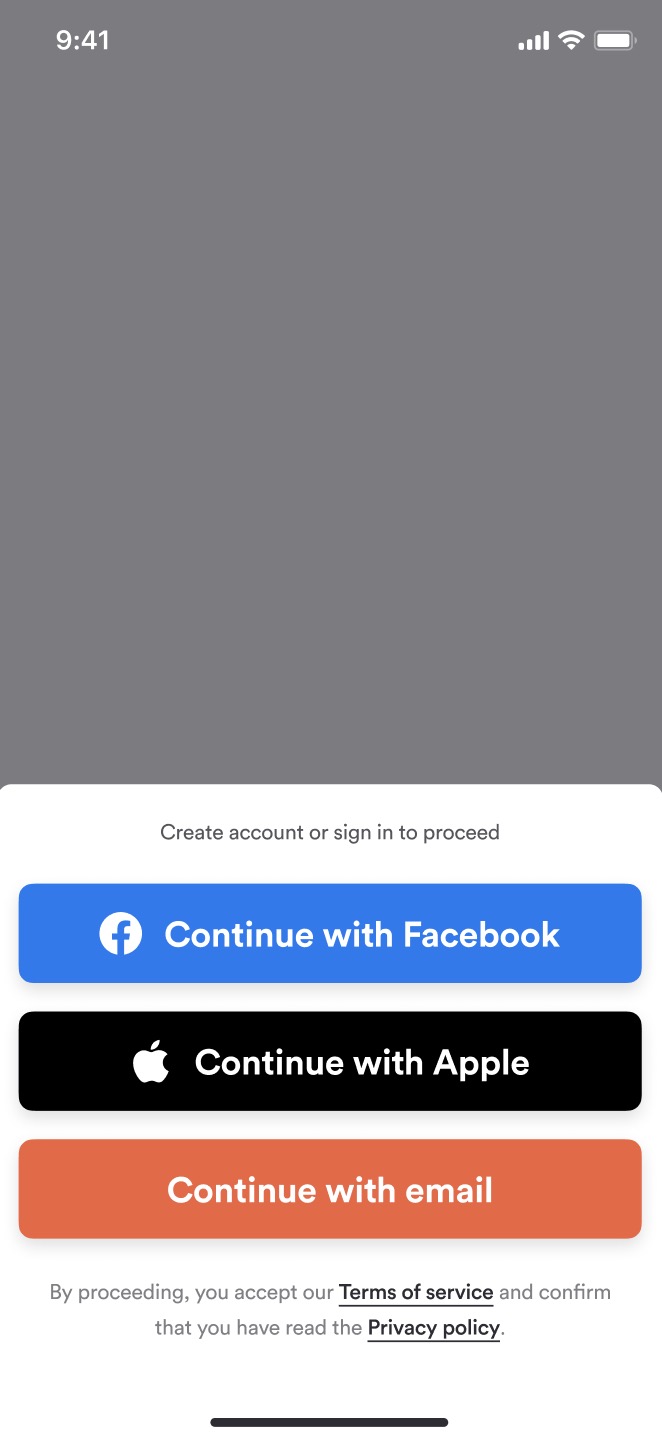

Choose-Signup-method Image

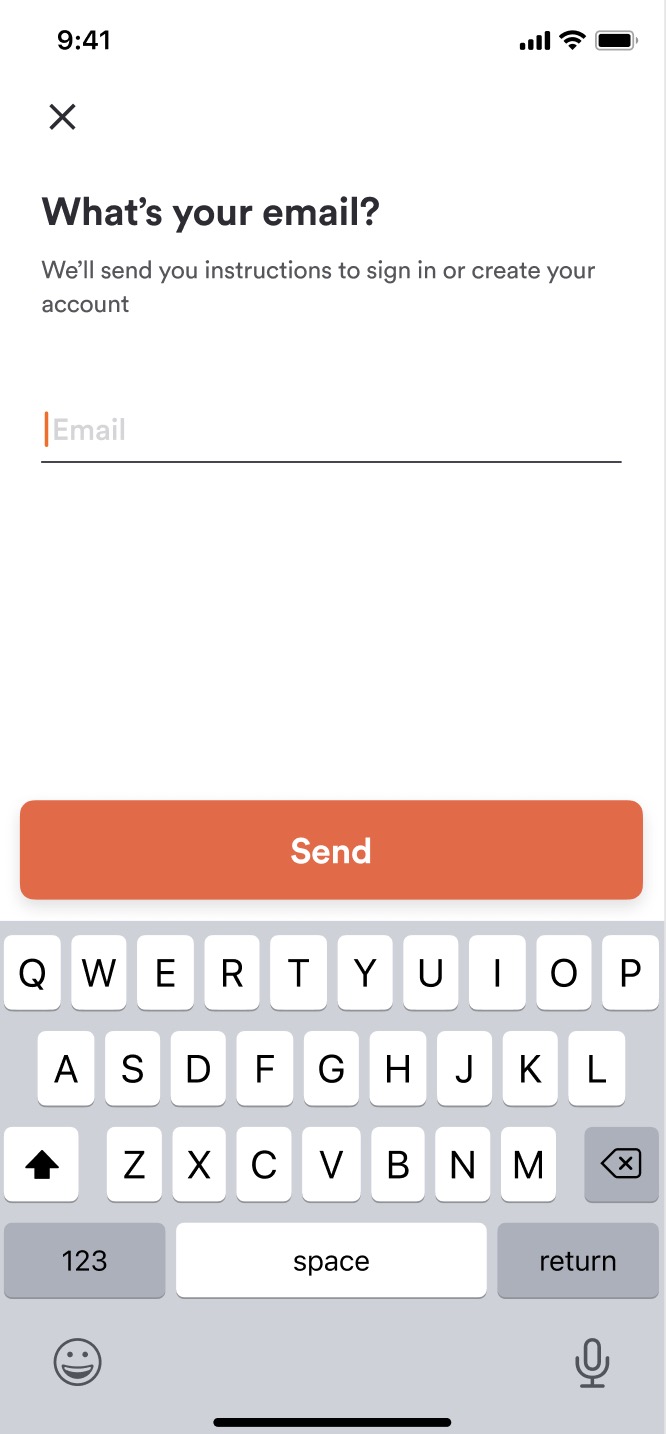

Main-Identifier-Email Image

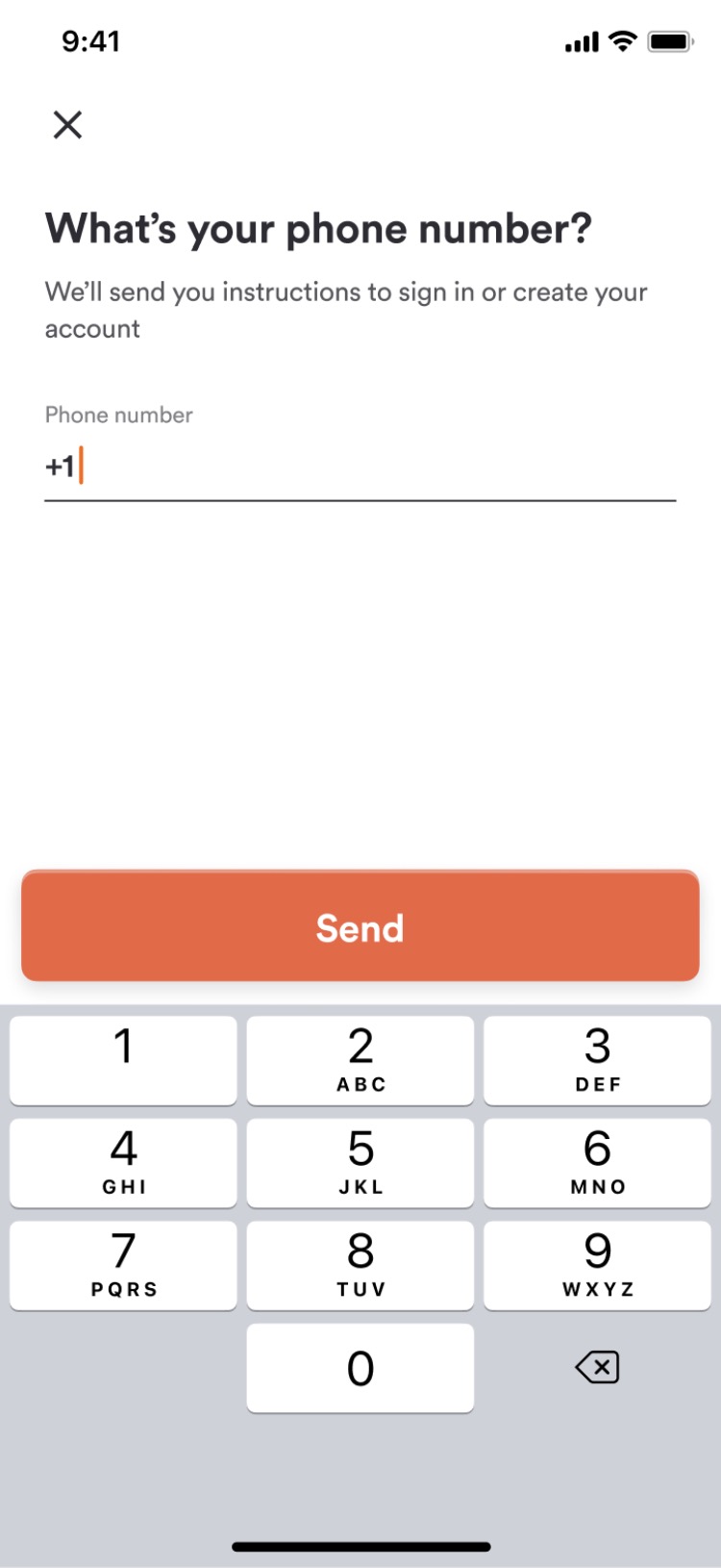

Main-Identifier-Phone Image

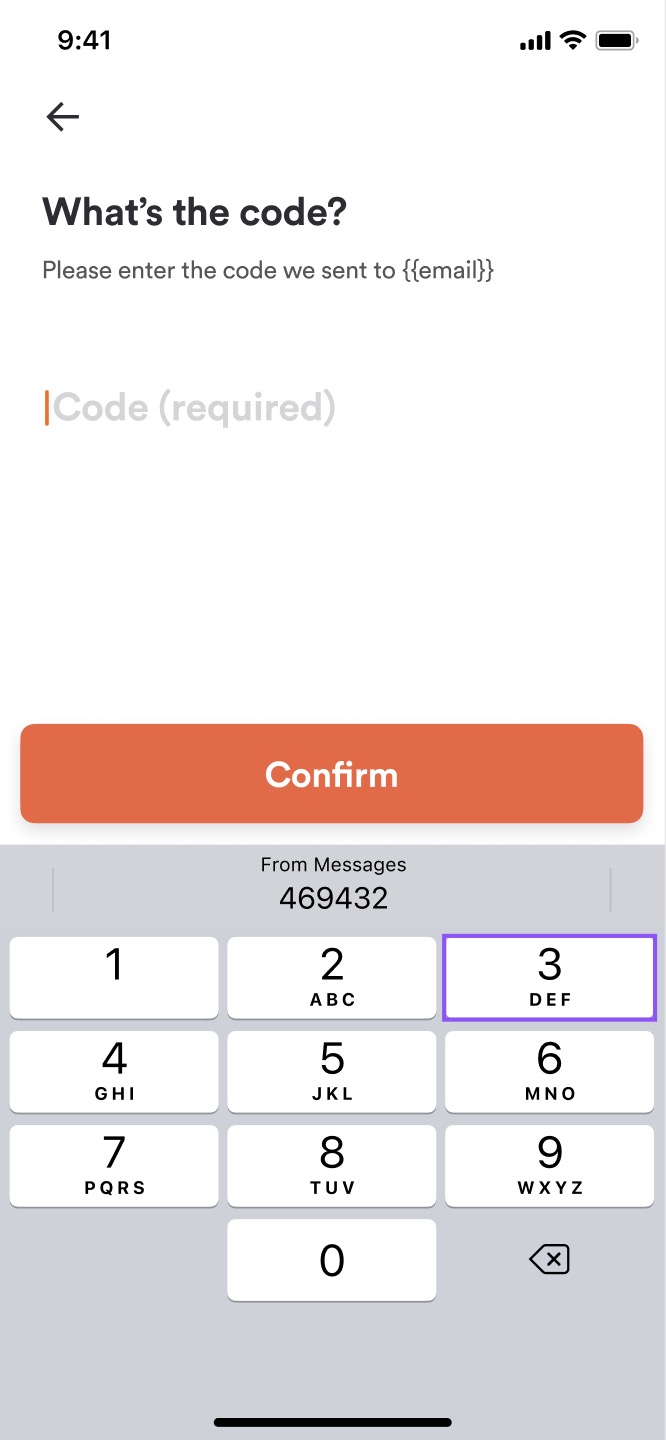

Provide-OTP Image

Check if the customer account already exists in the system

For brands that use Email customer authentication method, to determine if the customer already exists in the system pass the customer email in the body of the following call:

customers/check-email

Request

Attribute Type Example Value Description
email varchar "john.doe@gmail.com" Customer's email address
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/check-email",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "email": "john.doe@gmail.com"

  }
}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "exists": false,
    "is_social": false
  }
}

Attribute Type Example Value Description
exists boolean true Provides the information if the email is already used for a registered account.
is_social boolean false Provides the information if the email is registered using the social identity provider.

If the check email call returns the information that the email that the customer provided already exists in the system, the customer should be taken into the Sign-in flow and if the email doesn't exist in the system customer should be taken to the Sign-up flow.

For brands that use Phone number customer authentication method, to determine if the customer already exists in the system, pass the customer's phone number in the body of the following call:

customers/check-phone-number

Request

Attribute Type Example Value Description
phone_number varchar "+15852826524" Customer's phone number
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/check-phone-number",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "phone_number": "+15852826524"

  }
}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "exists": false,
    "is_social": false
  }
}

Attribute Type Example Value Description
exists boolean Provides the information if the phone number is already used for a registered account.
is_social boolean Provides the information if the phone number is registered using the social identity provider.

If the check email call returns the information that the phone number that the customer provided already exists in the system customer should be taken into the Sign-in flow and if the phone number doesn't exist in the system customer should be taken to the Sign-up flow.

Please note that phone number format validation will check if the phone number is too long or too short, does it starts with a '+', and if it starts with numbers that are not country code for any country and rejects numbers that are not formatted according to those rules.

Sign in for a Brand that uses Email customer authentication method

Before logging the customer in we need to request a One time password that will be sent to the customer's email. This is done by passing the customer's email in the body of the following call:

customers/passwordless-request

Request

Attribute Type Example Value Description
email varchar "john.doe@gmail.com" Customer's email address
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/passwordless-request",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "email": "john.doe@gmail.com"

  }
}

Response

{
  "status": "OK",
  "code": 200
}

You can resend the code to the customer by calling the same route.

To sign the customer in, OTP needs to be passed together with the customer email in the body of the following call:

customers/login

Request

Attribute Type Example Value Description
passwordless_email varchar "john.doe@gmail.com" Customer's email address
passwordless_code varchar "053631" One time password that was sent to customer's email
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/login",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "passwordless_email": "john.doe@gmail.com",
     "passwordless_code": "053631"

  }
}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "customer_account": {
      "id": "0ff757dd-9b8a-4750-89ad-03ff531ae923",
      "type_id": 1,
      "reference_type": "CustomerAccount",
      "first_name": "Jonh",
      "last_name": "Doe",
      "email": "john.doe@gmail.com",
      "phone_number": "",
      "locale": "en-US",
      "state": 1,
      "demographics": [],
      "optin_status_email": 3,
      "optin_status_pn": 3,
      "has_pending_email_change": false,
      "has_pending_phone_number_change": false,
      "is_social": false,
      "social_login": null,
      "updated_at": "2023-08-24 15:33:27",
      "created_at": "2023-08-24 15:33:27"
    },
    "token": {
      "value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzZXRSZWZyZXNoVFRMIjoyNjI4MDAwLCJpc3MiOiJodHRwczovL2FwaS1wdWJsaWMtcGxheWdyb3VuZC5tZW51LmFwcC9hcGkvY3VzdG9tZXJzL2xvZ2luIiwiaWF0IjoxNjkyODkzNTkxLCJleHAiOjE2OTI4OTcxOTEsIm5iZiI6MTY5Mjg5MzU5MSwianRpIjoiT0VsUnNpMXFMYzFaRUkxSCIsInN1YiI6IjUwOTA5NjUiLCJwcnYiOiJjYzMyOTIxYTE1NDgwYTExN2Q5YmJjNzJjMGUxMjU2YTY4NTI0NThiIiwiYXBwbGljYXRpb25faWQiOjIwMTUsInNlc3Npb25faWQiOjI4MjYwfQ.fmHQbNHH4Cd4l1HaWHzavJwGTAImtE2HsC6a3_QUHZc",
      "ttl": 60,
      "refresh_ttl": 2628000,
      "issued_token_type": "access_token",
      "token_type": "Bearer"
    },
    "dlc_access_token": null
  }
}

Attribute Type Example Value Description
locale varchar [5] "en-US" Customer's location used to show the appropriate translations.
token CustomerAccountToken resource More information about token refresh here.
dlc_access_token "en-US" For brands that have Punchh loyalty integration enabled, contains JWT token resource and for brands using MENU loyalty integration it's "null".

After the customer gets logged in we should check if the customer accepted the Terms of Service and Privacy Policy by doing the following call:

legal-agreement-acceptances

{
  "method": "get",
  "url": "https://api-public-playground.menu.app/api/legal-agreement-acceptances/check",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json",
    "Device-UUID": "1287796"
  },

}

Response

{
  "status": "OK",
  "code": 200
}

If the response is false we need to make sure that the customer accepts the Terms of Service and Privacy Policy before we let them continue using the platform:

legal-agreement-acceptances

{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/legal-agreement-acceptances",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json",
    "Device-UUID": "1287796"
  },

}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "legal_agreement_acceptance": {
      "id": "c2635178-1ec0-41d4-9a0b-f85ed7f0659c",
      "device_uuid": "1287796"
    }
  }
}

Sign in for a Brand that uses Phone number customer authentication method

Before logging the customer in we need to request a one-time password that will be sent to the customer's phone number. This is done by passing the customer's phone number in the body of the following call:

customers/passwordless-request

Request

Attribute Type Example Value Description
phone_number varchar "+15852826524" Customer's phone number
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/passwordless-request",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "phone_number": "+15852826524"

  }
}

You can resend the code to the customer by calling the same route.

To sign the customer in, OTP needs to be passed together with the customer phone number in the body of the following call:

customers/login

Request

Attribute Type Example Value Description
phone_number varchar "+15852826524" Customer's phone number
passwordless_code varchar "053631" One time password that was sent to customer's phone number
{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/customers/login",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json"
  },
  "body": {
    "phone_number": "+15852826524",
     "passwordless_code": "053631"

  }
}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "customer_account": {
      "id": "cbe252fe-3757-4b53-9e3b-c13ee84f65bc",
      "type_id": 1,
      "reference_type": "CustomerAccount",
      "first_name": "John",
      "last_name": "Doe",
      "email": "john.doe@gmail.com",
      "phone_number": "+15852826524",
      "locale": "en",
      "state": 1,
      "demographics": [],
      "optin_status_email": 3,
      "optin_status_pn": 3,
      "has_pending_email_change": false,
      "has_pending_phone_number_change": false,
      "is_social": false,
      "social_login": null,
      "updated_at": "2023-08-03 10:22:42",
      "created_at": "2023-08-01 16:09:10"
    },
    "token": {
      "value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzZXRSZWZyZXNoVFRMIjoyNjI4MDAwLCJpc3MiOiJodHRwczovL2FwaS1wdWJsaWMtcGxheWdyb3VuZC5tZW51LmFwcC9hcGkvY3VzdG9tZXJzL2xvZ2luIiwiaWF0IjoxNjkyOTYwNzQxLCJleHAiOjE2OTI5NjQzNDEsIm5iZiI6MTY5Mjk2MDc0MSwianRpIjoiaEN4MUFERzNPT2RpbnlOMCIsInN1YiI6IjUwOTA1MjciLCJwcnYiOiJjYzMyOTIxYTE1NDgwYTExN2Q5YmJjNzJjMGUxMjU2YTY4NTI0NThiIiwiYXBwbGljYXRpb25faWQiOjIxNDQsInNlc3Npb25faWQiOjI4MjkzfQ.kdhLb6c5QEGxs1j2oqcVJFmxQ3xAAB81-CPaXmaW0FY",
      "ttl": 60,
      "refresh_ttl": 2628000,
      "issued_token_type": "access_token",
      "token_type": "Bearer"
    },
    "dlc_access_token": null
  }
}

Attribute Type Example Value Description
locale varchar [5] "en-US" Customer's location used to show the appropriate translations.
token CustomerAccountToken resource More information about token refresh here.
dlc_access_token "en-US" For brands that have Punchh loyalty integration enabled, contains JWT token resource and for brands using MENU loyalty integration it's "null".

After the customer gets logged in we should check if the customer accepted the Terms of Service and Privacy Policy by doing the following call:

legal-agreement-acceptances

{
  "method": "get",
  "url": "https://api-public-playground.menu.app/api/legal-agreement-acceptances/check",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json",
    "Device-UUID": "1287796"
  },

}

Response

{
  "status": "OK",
  "code": 200
}

If the response is false we need to make sure that customer accepts the Terms of Service and Privacy Policy before we let them continue using the platform:

legal-agreement-acceptances

{
  "method": "post",
  "url": "https://api-public-playground.menu.app/api/legal-agreement-acceptances",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json",
    "Device-UUID": "1287796"
  },

}

Response

{
  "status": "OK",
  "code": 200,
  "data": {
    "legal_agreement_acceptance": {
      "id": "c2635178-1ec0-41d4-9a0b-f85ed7f0659c",
      "device_uuid": "1287796"
    }
  }
}

To keep the customer logged in customer tiken needs to be refreshed. You can find more information about refreshing the customer token here.

Sign Out

To log the customer out use the following route:

customers/invalidate-login

Request

Attribute Type Example Value Description
Authorization HTTP header string "Bearer {customer_account_token}" JWT Token of Customer Account
{
  "method": "get",
  "url": "https://api-public-playground.menu.app/api/customers/invalidate-login",
  "headers": {
    "X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
    "Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
    "Api-Version": 4.38.0,
    "Content-Type": "application/json",
    "Device-UUID": "1287796",
    "Authorization": "Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzZXRSZWZyZXNoVFRMIjoyNjI4MDAwLCJpc3MiOiJodHRwczovL2FwaS1wdWJsaWMtcGxheWdyb3VuZC5tZW51LmFwcC9hcGkvY3VzdG9tZXJzL2xvZ2luIiwiaWF0IjoxNjkyOTYyNDUxLCJleHAiOjE2OTI5NjYwNTEsIm5iZiI6MTY5Mjk2MjQ1MSwianRpIjoiRk4wY0xJdU5FU0VxNThtYiIsInN1YiI6IjUwOTA1MjciLCJwcnYiOiJjYzMyOTIxYTE1NDgwYTExN2Q5YmJjNzJjMGUxMjU2YTY4NTI0NThiIiwiYXBwbGljYXRpb25faWQiOjIxNDQsInNlc3Npb25faWQiOjI4Mjk5fQ.BW6FiRxXNsCMO1nUs2ec22NGU8y-xsVoAKskQpSrnok"

  },

}

Response

{
  "status": "OK",
  "code": 200
}
