Adyen Overview
Setup & Credentials for Adyen
In order to connect your Brand to your Adyen account for processing eCommerce payments (from Mobile, Web and select External Channels), there is configuration that is required to be set up in your Adyen account.
- The following credentials need to be provided to your Success Manager:
- Client Encryption Public Key
- API Key
- Client Authentication Public Key
- Default Merchant Account
- Live URL Prefix
- Merchant Account (per Venue or Company / Franchisee, depending on setup)
Storing Tokens at a Company-level
By default Adyen stores card tokens (cards that your users save to their account on Mobile and Web) per Merchant Account. If you plan to use multiple Merchant Accounts for your Brand (in order to wire funds to different bank accounts based on the Venue where a transaction is made), you need to reach out to the Adyen Support and ask them to configure your account so that card tokens are stored at a Company-level, rather than per Merchant Account.
Client Encryption Public Key
-
Log in to your Adyen account
-
Navigate to Developers -> API credentials
-
Click on Create credential
-

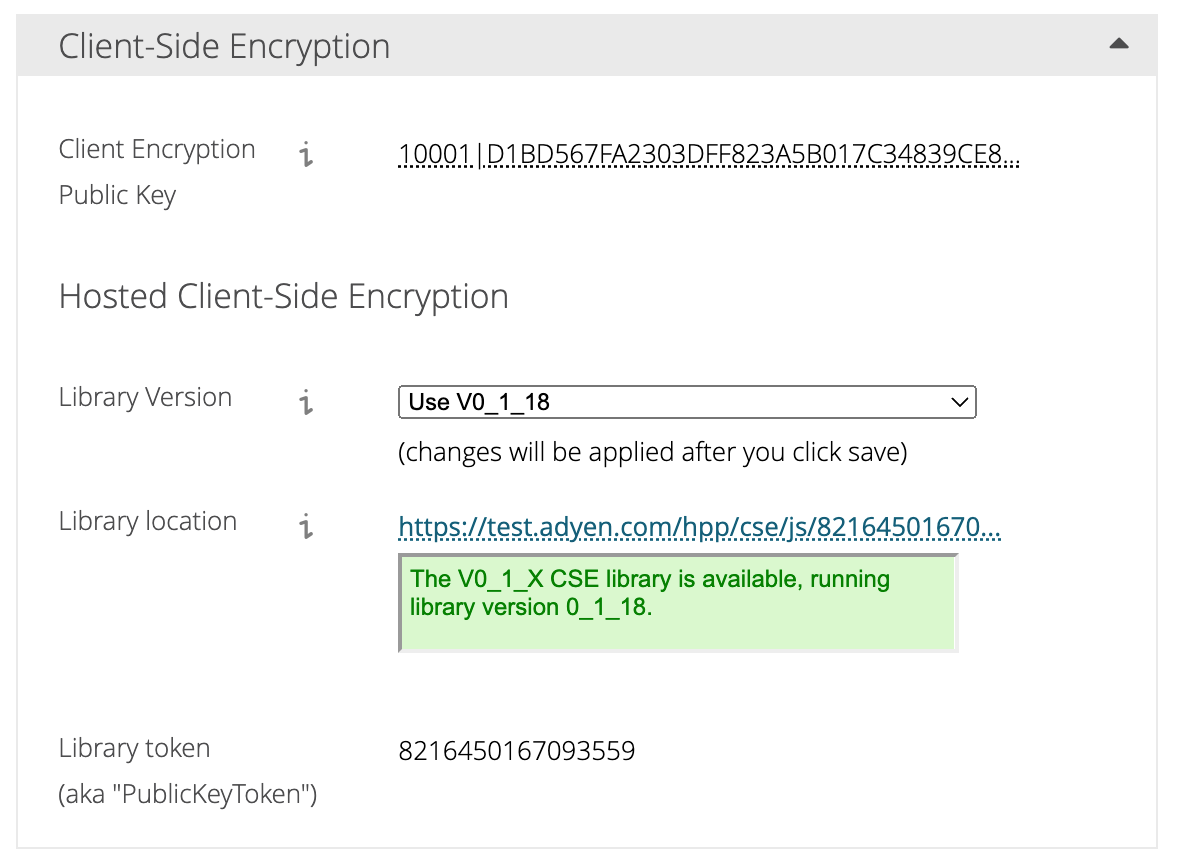

On the Create New Web Service User page, click on Generate in the Client-Side Encryption section. Make note of the Client Encryption Public Key (copy it to your machine for later usage). MENU is using this key to client-side encrypt cardholder data. This public key is not secret.
Client Authentication Public Key
-
Still in Authentication section, click on Generate New Client Key and copy it to your local machine.
-

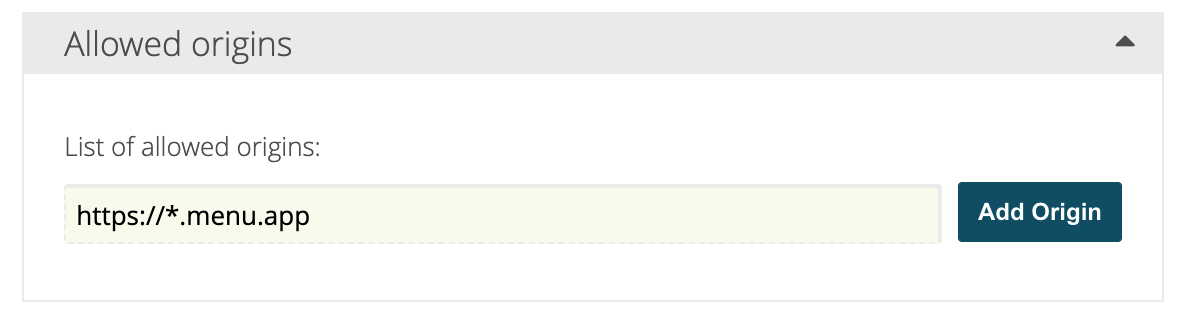

In the Allowed origins section, enter the name of the domain where the application is hosted (e.g. https://.menu.app or https://.mydomain.com) and click on Add Origin
-
In the Roles section, make sure to enable all needed roles (typically all listed)
-

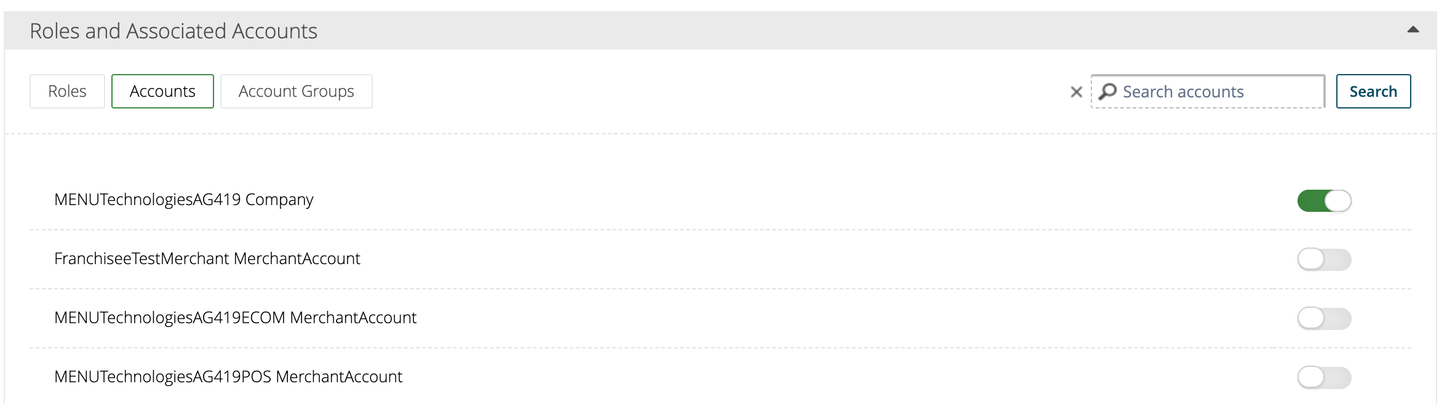

In the Accounts section, make sure your Company is enabled as well as all the Merchant Accounts that you'd like to process payments for. Likely you'll want to enable all of them. Note that in case you add Merchant Accounts later on, you'll need to edit your existing WebService user and enable the new Merchant Accounts for the user.
- Click on Save at the bottom of the page
Default Merchant Account & Merchant Account per Venue
Per Venue payments can be processed through a different Merchant Account.
The Default Merchant Account is the Merchant Account through which payments will be processed in case no Merchant Account has been configured for a Venue.

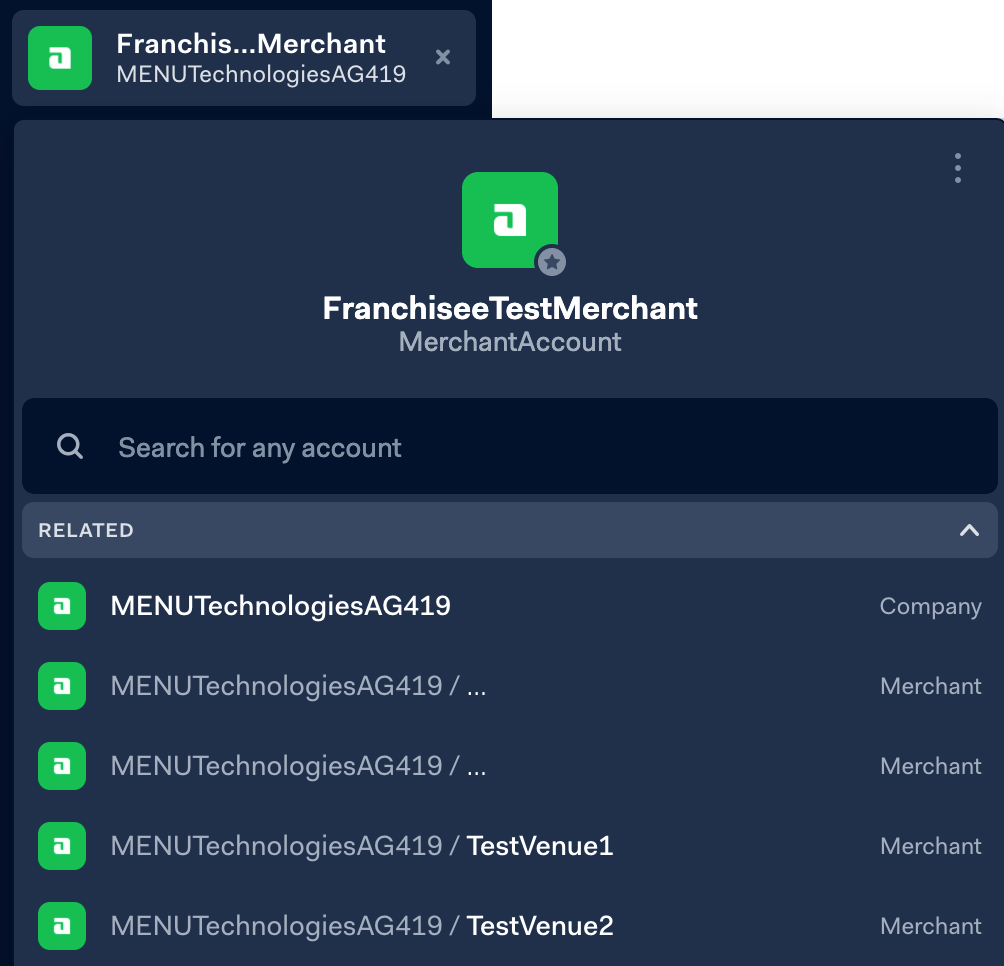

To see a list of your Merchant Accounts or to select a different Merchant Account, click on the name of the current Merchant Account in the top left corner of the screen.
Live URL Prefix
-
Navigate to Developers → API URLs
-
You will find a list of URLs on the page. For the Action Authorise, your Live URL Prefix are the characters shown before .adyen.com.
-

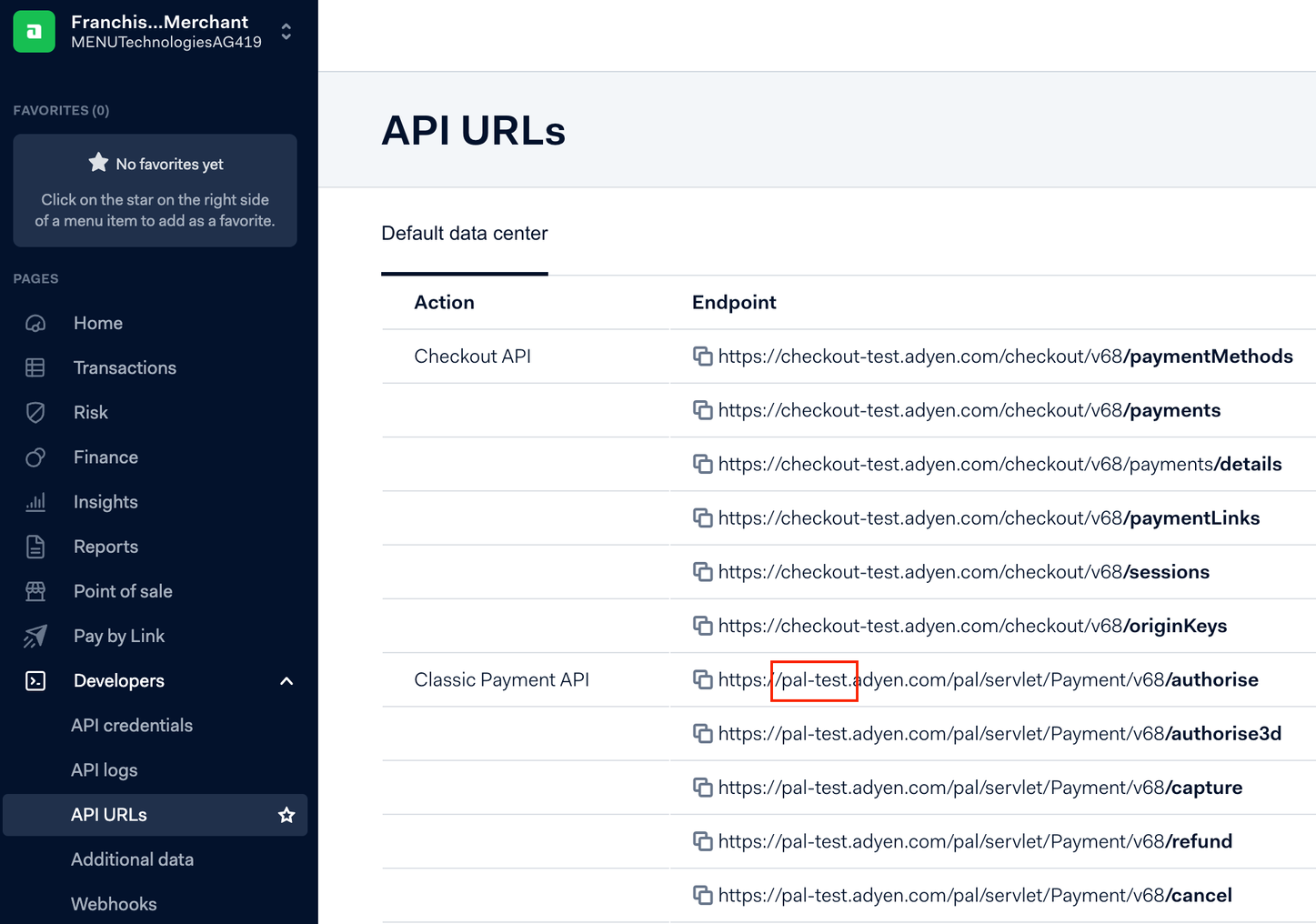

In the screenshot below, the Live URL Prefix is pal-test.
Additional Data
In order to integrate Adyen with MENU platform properly, the additional data must also be configured:
-
Log in to your Adyen account
-
Navigate to Developers → Additional data
-

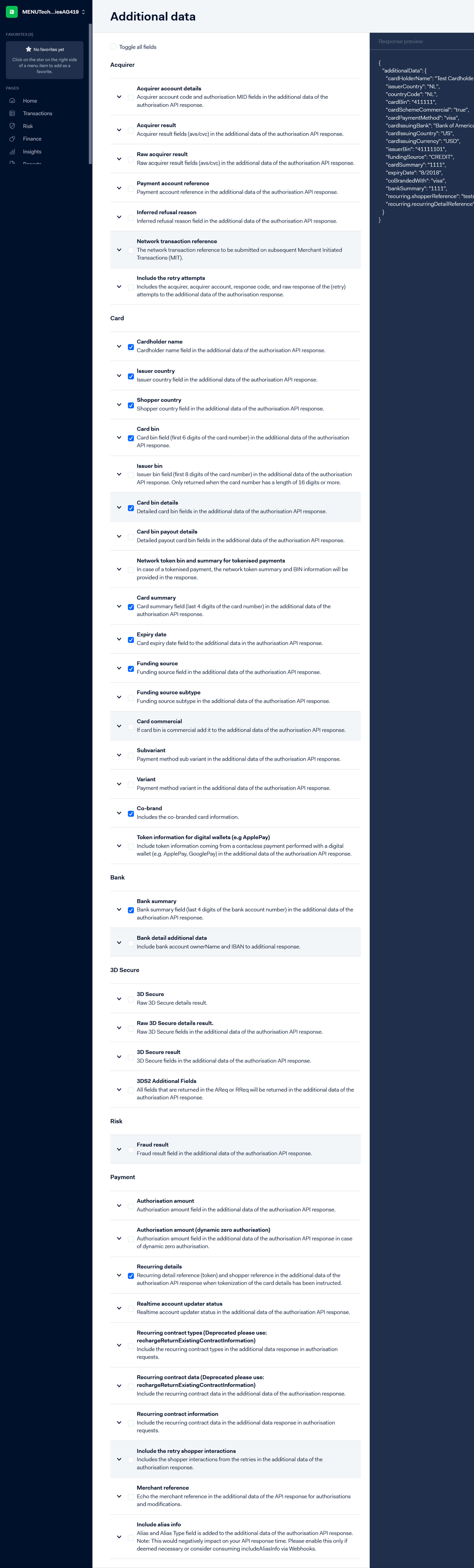

Toggle the additional data checkboxes as shown in the screenshot below
Map MENU Orders to Adyen Payments
In order to relate orders in the MENU CMS with the payments in the Adyen Dashboard, one can use the Merchant reference.
The Merchant reference has the following syntax patterns:
| Merchant reference | Meaning |
|---|---|
mt-card-[number] |
This transaction is a card registration (or vaulting). The amount is typically 0 as there is a zero-amount payment transaction issued to validate the card.number is a randomly generated number (not our UUID). |
mt-order-[UUID] |
This is a payment transaction for a purchase. UUID is the unique ID of the payment in the MENU system. |
[nnnnnnnnnn] |
This is a payment transaction issued from a Kiosk. |

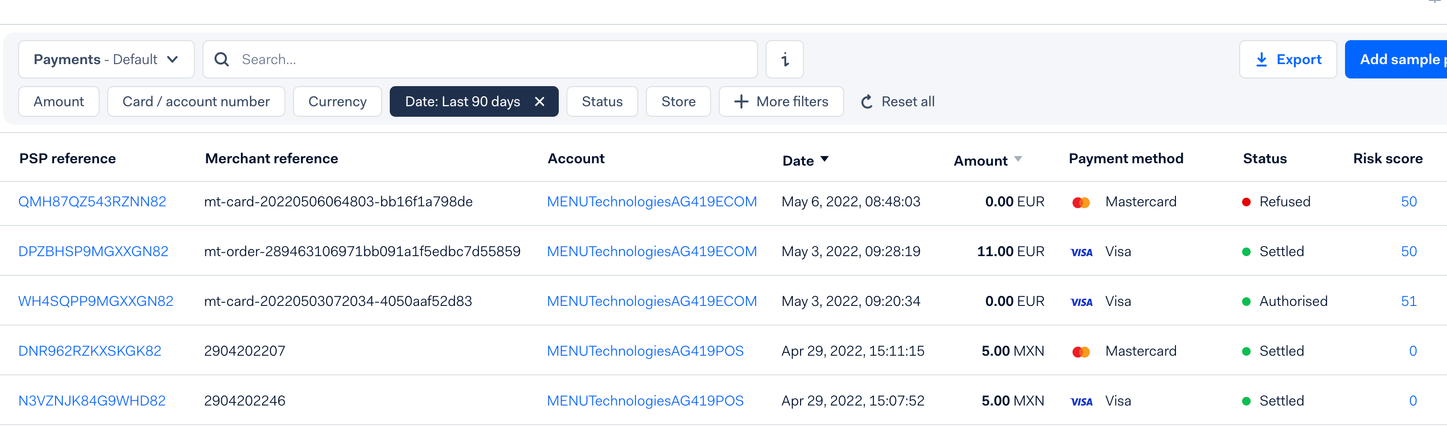

The following screenshot shows an example from the Adyen dashboard.
[API] Adyen implementation
Payment Method Registration Flow
- Client app initiates the flow by calling MENU API generate token endpoint
{
"method": "get",
"url": "https://api-public-playground.menu.app/api/payment-processors/generate-tokens",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
}
}
}
Response
{
"status": "OK",
"code": 200,
"data": {
"tokens": [
{
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"token": "15955907545f1ac86212653",
"additional_info": null
}
]
}
}
- After collecting card information, Client app has to encrypt data with Adyen Mobile SDK and send the request on MENU App store payment method endpoint.
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/customers/{customer_id}/stored-payment-methods",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":
{
"payment_method_id" : "85688223-b4ee-4c0f-8593-513c182ef7b1",
"payment_processors": [
{
"id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"properties": {
"token": "15955073795f1982b37de39",
"encrypted_card_number": "adyenjs_0_1_25$LErvTHwlFs3ghKKBvpaHSI4AW9dXmKHI7uFvi1wOmgX0aYKs+qH+aE4af4NxeM4VvthsL2QP4ASpgA6n/2k7Fews4x2Ot0RaHXMmPC/XQA6Dm5wLS4y/t/o4Tryoh0jM+tLYshEmDFxCypb/O2qiQ0BIkjlXCJ+3pRt1Uj+HNrgWZ0ZHz+VW3iHXyRiBbm2HOdCr86D0WDzmaMASc2aanoLEqnB19zm2ZX0KL98CIdQsVUGE3n6qVCnDFYY5nyQl6sA0hmKCMa9oBFJRlOyhcOiSnutvCSRhkbnhpH1pf40ETGojYSZ3pJTMev+WlPbtPTrDThh+QRGbqrHnL0ldIg==$PK5Y4o3B+2yH2D/EbaHcPpOU7MfQatjCiRg2CT9BI6TbjeVOAXDFQQ108bEXVEMDwdj/fh8rAbKlPlDrf3K+OVIGFg6u6FUA7RFG7pdh+fMNTgDF3To3T/M3N+XhGPGvz3AYFZI8Rjis06zwCEwE9fdxV5WXdb+JtTHmWgXbFbZn8VRIzFW/M0T6U0elIuqaa6wHSNO1Zr69XFYaTJrsdPZ7/sdAMarYGXLn/Pr59QPQHJzDGnfEELPHVcVsdrKOAtriDwIaITJcYzdpQHOCKCrZsKOOiLlfX9b71xK+GwoDUVRNgWJaswp6ekyMp9fKQg+6AHlbLCwNzPE0adNVw1hghMW0CpAgKv/imjmfU1YJdgqR49DQ5+BTmiEmCPgpgIg87bqddnZRo4Bq/2PWV7TVZTph1S/+15P5u9Ntn6abxoRsB05Dhnao6+1KLxwAPiVMXAFeFJTdPZKZ+WnYdp3okMVpQYH+j+iPmiYJ1zkWwoAelsAZXdxC70Fhh6h4VObZa/M2RggXlo5kQJu0O/Tv9bw2YW1E+oxgYoJOVS815vcU6/7XWtodhtS1/Ww4+KHWrDxXg6J+hHNEpJsQXoA7SbFYHTXcKmMHIaMFsjcm8TC2xN+Om5hzTWCnuFgUVGgPOhmeFGj4mZm/VWnRSEW6z4+yQ2Fql6N7gZANWSIHaltiScP3HMHd/bR7fz8fRBX4tkYJ4WYVAvyUuvscma7YHndIyge9BMN5uxQTt0Yd7XNXRheEUnXQqq+l5CAV3Glx2dM/PEryIa1jrEBCGbbIVfkpHRuQo6YVDahQ297j9oDuhqSxrJueypEI86xUt//ZXpJ/dxcSbyWtEE9evxfYsX14S9rKV6PzhdPM2IASDTrsdFJSNp0Olo6H1MR30uRrEw3rJyO8XRz265xSaqnfsZtdwxpzdzbp8GPHonzKPIEM4bQdo2aIb5z1onEmUs1AbiJJWwUwq0ZC7VgWMpuJoKh0WArFJi5e1udBtQ2D0BgbW4DuSWvflZBCwFEWWkeT7H8QAbREmYvIYnAEuUPewXUAsNUnrpaf0RYxP4oOeXONxWZMC9HOs0O5s7pBm+fhDinJXCJsrok9soXW3AsG13qhWR+fHNjyaGZI/fKidmUd9YD0U17qv6zxeYmumJgJwYNSaEWHtVZTZMyRgN1yzVMQX1I73+ZOmBhq9vNIY8nNUg+e9nV3QkHbaLfGgkwU",
"encrypted_expiry_year": "adyenjs_0_1_25$EqFO2ebNPKxopCkwL5zF+4uuu5Qd9ftr3a0bhFJTlY+xtjOAKV0EGZom9e9xbAQE9AnSHWzo9JRb3rPQJhSwEnP/kqVrYwmIzJ41XFq6ilQuw5/YivfS8W+5euKssIbGCtfETmVy3dyzrvrRDwhEOqM6BBvbH9kMhIOvaCcuYJIh0VIr0Q2I2QWd354L2gjxIkuVU2iFhyzG5Z9fOlQHFq29AK4TNgdI90QxWlRTUln8bckqdH6OflqyEiDNcb/mrc5xGJhw/4yJjynfdf0urL8XDV/PfxkeFxAbpiwmrOMnxGwPNj6IHScj1MxHBDXEF4MFrJAi8bHEZDBtqe78Iw==$Puh84mZjXh0Fo5H9ZnRF3Q97Sv/3NEIFNGJEmZZKKENW020WIfJCRIeU43v/AVDKpk6kJikSf5DgvJuk9HCvginDtnMcLeK+sqdRYgRVSeCgB44WX/tVXJaZ05xircOtwJl+A2WGCxlTeZFr28Jz35/G7FPPnkbNvHUTH94n6CiqArh3TSYyFlxs2nayLfM6y5wOF8N6LczNVx6kWxC2/XQRZDIZBYM8USktpeUzuaEhr9T3BAMAF8XM+kQnyR9z+qwo1/KsbwhF3KCZIEpnvdSo6UEzeoDF6NA44JBW+PCcPxiaCCG2xgIwBC4iJqwpadP8vrgv7g5hm22lPtz2hK8TbFVYctPunHoLp4MCP7tg1LTdBOcKf/8JtteX/s9l9EWfcdJYfjXjINDv4HDU0F0iqDzTZrDdZ7wasxtpv238BXvnzXa3B104O+aOxeR9OdTvKEFbHShgpA==",
"encrypted_expiry_month": "adyenjs_0_1_25$jNa72datXROYRMlsw0+9QU1r46U1RemKcFdp5tTkkhSHvPrVh000hypYC4Xbm2oyTHCoEDkITA3SvD3KTCrR/QuP8BSnHXmUQTKGq0QOxd3nXxVyV8zXMhso7p3ro115UIIhudHL0EIahuJNIAJCHIiD15dnSVMlG58rpAq/3maCsqTqh0ur6Rv0KMbOQwnIhUcSzGnYARk9MRpcyaaclREuvWkv5PfRIVLTp75GGUmAHDMaApIpd/VlgSZGQhpHGRiN8t1U9bmBDEnEB2qGUJsVEHG55hBmGs8k3yhDguvS1BhZUcMaG8l2IPoBSkWFF6wlbj1cKvVj0rMypIv79A==$HTpVDsHsBvkAYiXmxURNKf4Yla5lLnutiWzcZ8hl3MacoY3LTe9WwVoIlFRWOJgO8Wq4c3L1cKvJSxw3deQtN9tBlp7sh1s6zcZw7I6lH/Mr13HPeU6jgWvuyh2ycSu/kCjaxqQoi2AricAOqTjAjbOh9oudznqvCLjClyzgWjQjcBy3MPMd2MNa5ZDf0rCDcR83mMUqT8EnrdlHJ3DR5M9g0M/0raXFJ2TeLnm12EuBcNpwFjLqj+gj+LstbauyeeWSLCbVy6h5m9AwE3P0WoyZJG5nEe0hkCaXDRYrfCzTW7H3rujfaw/vuUZiiMKzeZOh8NWftynCNviXTpS724GB7OWLBZs86S9THln1wrEAvHEO1yHmyuYCddMZlNCqZhWsL2mCIQ9nUVGNlWLBTpH+10Mu1H4Zz8WXZes7Rk2DM10GnjGkSix5UZQ0tj15FCYB702RrFoA",
"encrypted_security_code": "adyenjs_0_1_25$jxb5fZTXLsu057nmeytyPyDb43l8gej4kZs1fJkZkm7TOkAEk/W6uMchGREaNTplaLS0rOm9RrlvisGnw2NwvfYFVmiyY0BsW2StsB0WNis+Tsr9MyHvQkOnwbFgGi6RNot0X7P/6CkTN96ZmU5a5sCFUpZiMPwCnkg58a/pj237Mz6Ux5Dy8+EX2A7BhVg3l7ENZGYR65ySRVjp5B/m8PrAfSxukn+i6OfgmaVg0sEgY61uAYyg78/HQU3QxinTzUdHXOgFQRhZo1elbTkEGQTNSa5zp95PEwSovxWceQ2dj98X333fcVarcX2ZkxgPb3rtVww8KNM/NVBwGsl4IQ==$SOiuQ2Ld9az0RyKhFEu9ccIzbIG4gL8VrGQ3Gfy3gysGZM+ts0Jq4hRb/AtdpXsEzvicuIdXAmzAhgwgB60Zpm+tksMtMP3elkZSJCRDztNozSoCTWlZAwLnp0GaKkjFCl+wFH/yy0smlyZc6hegzBhPaAkhtz7UICqgerQMupWG2mf6hBfKsRFg5pwL2DvagA7SH/JzDmhml9rluFtPdhZIwRSdSJkeiH3+ksWu68kfn6jDZuuzhM+/Ps80X1Rlu5r3JAcsDa0MAjayCWI7b8RS7Uw3mibVjzRJOyNDLlxVH50PbYZ6jzbWbHdIrYK4DtQkelJ8Et+E/59CSV/6VXUn6jK7rf7zhr82d7YMDrvkVRiSp06JtZRoYPU4zXwsTgnfP5vSmF66xYdmTfGmOiquc47hhH5u3xlDJHxRGhbdgFtcrZaI8YEcCgzIRBYRpEA="
}
}
]
}
}
Menu Backend sends a 'zero amount authorization' request to the Adyen api, where shopperReference is a token previously made on generate token route.
After validating that the card was successfully inserted, MENU backend returns all stored payment methods to the Client app.
Guest Payment Flow
Request
- Client app initiates the flow by calling MENU API payment init endpoint with all the required data (venue ID, order amount, encrypted credit card data, etc.);
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/payment-processors/init-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"venue_id": 2,
"payment_info": {
"payment_method_id": "85688223-b4ee-4c0f-8593-513c182ef7b1",
"amount": 1256,
"encrypted_card_number": "adyenjs_0_1_25$knSiI/X9awytEmA9xBE0JPBzEHGf6k7m9Oy899QTcEj10YY42mWE2BYcgA0jnCxMlWbd1rWYIKhiMgiWDsdTP6IlNXltHqAWKspna79COEestKAUwxOcmfI1U5jeKOMhX2YjcMVZAJd/CU2xGohM5B+VsTwyuUyA7sT6kKZrBXUJGitdNlvFsBmC0iyTLjeZJh9JFH8kjKWhsr/JNF+0qIW2DtV2arnbVKXEXce7UiMSfnqhCVfgTUIsSIfa/cHxtQBltLdofDfNmzYWmwsbeOtQHpgJT6i4DZTZfyE/l8VxH4bLmuUQ8Bws7iIpvX7QdcrJN4gmm5AeIYpCwxIjiQ==$gD8FLPxVZQ/qydBQ6T48V82EMEZpqiaD870A0togK3zDFXILkI1YQK8vhDvb04mRjEoS4F0TsW97OlY17L3Nz/6MflBxfp49xTNokVGffA56TPRkc4fNJjDu4rxXN1KDKF8nMj1PSuBwerSzSeYPQtLkg/4lQP3WCxO0+x7prpdDfbb0wb4ANVwUZgMBPe/cb+BaPSL+3ZvQKp6vMgS2yrATlvQnS6xTm4NZIuB6DkcnD5NVK13gLs+VM5102kWDiMvFuPuswKX9h7Y7tAWPFMYL+F/D9bZgu0I8EF8rF9xFdRQrEaRjEaSUlp35ZEieyfojyQtn94gyvU+pOSY0PMY1M4MSDMurE58lPGed7ncoeYEueeUl7xR5dfFpkW9mumZyvP4H+nlizMa40bXOS5vg2dru+xbfgvwlGxBuvdAD14gakBQV6HEYNxJG0PCSWlsmv4XWQ4VrJxFT0YC6skdz3wPS6qYO4LjFJeXsnN/QCwdklt8sy2OQioaVOJ8lkHWB0GRmO8cuRYDwq/5llDTzrG5IkEpKWUV8ujMoIW2sF8o=",
"encrypted_expiry_year": "adyenjs_0_1_25$Ci6PC/UEclg9TNN6y651pv37vbmQolEUP3ruq2pBDK474sgR/1rKfu9Su5ybir/ggLNx3fbR+hyVj9rpWPZ3EctB8QziVezts2iDgITkcRrKoQ4oJLrpOWhIFjAiV5qQuQeIGUI2TlIwk4RV3HrM7kOx7eJdubsgF5OmZwcBGBesupVuK9h3y/LQnVUHMQg3c5qlLxt60DXgahS/g+6IWByDTvS241znSf4IzFjhgOAhyyIlmSIg/eeWYDk4sskbcqBwrbDCJCsMBfVrwK4ZblJ33dv3UPvq257YVVEd5hW/nNZeZvGwlZEK0KPQ/CtOj5xc8DlHr1wbwa37h9nslA==$i46o59lZ8FnHgpD+6tSYt/bX2dsiAdUP5zK5G34/hQ+e7L2fKNlW/lMs5bgexZzdjekKbWjSmaduoXYCPzP2+NAVZlgu2pw79pcVwyd7ps8XYxCxurdcKxihg5DiRRYkw29xvOIuNiM/Xkl2T3YuR066BCcBBu3REFc0HlkM1IvT7gBYI3DMyBeKGsDkM9/R2DZMKVOCf2q/dNi9dKfpZ4R+XU8KUecHTierH62Q+4vJZPYUNxf1DJMuqGgZSFysic49hgQ5Bi9nBjYRoWHTjhA77964ZIDX0nVjFyqm/iBxuyPLK+I6dNn4Zpw6UyXdDUhPc4oDXH84d5pwbfVur5k53XQZLE+1VDWsCrdawE4YEqvaUiTJgifIGKlvLCwycPn0lhCIwspSyY8mAd+/7pe2no9/haRVyCIOq/bhaosQJnn7FqCC9Gb2HnPsQGHRUX2x3aiYQama6Q==",
"encrypted_expiry_month": "adyenjs_0_1_25$axdlq5UGkAICODeRofB0rcoFjThqgfXi/cFcq644J89vNebe+btwBXq1tyMYoLEYvrg3m6XLCDv023AxowuR4RO8idua3B6LxR1oFGONU0jQvKB3+tWyk6ZKs/GiIJx+NsswQf/Oz56sqcaH02cwr+xchkykerIx6X3Ingy3KmItJzp0Z2Ede69lIcSt3rQgd4Jx1Zs27kWKrK8U8/AnR9KF4jX42BFs7CO3JApirIKgahoW5lFAwCjUfF0pUTJRU6RMFCGPKuu/3vEGNkuATAfyJ0boCONSOT3je0q6pjl+dpUnhx7Zm5QHv+qLtZlVxCUvOXYw1nhd7EjxR8aqTw==$CS23V1vyXc3FATc+6DcwAWpsj4WVu2LrqX+lQDQazluJ2sa6E/E9ww5yVOt2lCwCN0gIhQE4IR8Leov3SK8mdVfLU8r2JOEtmAObsVAbTWso2HZdXfkhQpPQtVRLP0QgPbdF9FxasNdWR1JBeJmTOexp85/gygEwgFvboEdtuJKpmKnxStMy+xV/yUkDqMO3ejgc4zIIdz7WAXlD6/NSAJS3cyw222RJJLxA0aLgQCQuWxCuuvmasHmVst/t6twDm8g5hoerH3My0/CbbbtYOJ83YqlRjlAxEhDgTe6//JllpEEtJmOBgUktuce+zO+xwuZggIfiTOl9rQZnkCiz8vO0qxYLBYv7TWyUJrIal9GCR2vmRBs7vCQEUvYS+EOUwVOQqQDR0T+rfWidkmAC6DIag9NBb0K7iwOQNe7e9A7y6MNOc+N5/+iuEwxftZL/YXdNCgfBAY51",
"encrypted_security_code": "adyenjs_0_1_25$KsnfRNz/cY9qy0sXhkd6W0SJ4vtaVQZyytF45QOJEnSRDJv6LLd0LeCuOhQaYUcKalhCN4OFnpU/Y00QbzRX1quu5LbO/fX5mH+U6rjOVrZqTI+RrXhng3RfLHdjC6xs6nW9bFZ1fpQqsiH4h7yi+AM6imYZRqi8gZWE3cDQM4rY2NaN5MVtoaoiZXCTPMsocutMC5QG4lawbPPGN0G/NRUQBCry3Xz+3rTrNkpHCJk3V7P3HBtJ87kYAL1qlb+UKCIxxdNO0ABeIOgY9kNmK4Le/xUIvq9XWuMhMFir7OxixObOlVj2jOv88c6egE9Py4+oaBl0TMAbwX9R9tqMqQ==$0w/E4c1i/gqBrg376oCzz5qMRi9dH//oD5DE2NE7XbqHFqWDoPVtyWDJ0YkDA+V7aqFyx5d9t9R06fMDx1x8KeSh/DLYMhPBxSayB3QXyyl10yP8xRtuAwdAYE+pNeg2UgCjEmJ88Jj/2mohxSYyCvep+ZXw3gVEinhK8d8WdneK9NOKHssYjcxq3MG8vjFNgp/jGnyCDZbhZBiDD/S4dPpVkrUPVFgrt34oQqfLYKHgCHfXwJ9DTygzSpQ6m0lEbE3FUX+eRu/6H8R6Q82AtVXg+gfxQ+tEQOz7xc+fy6Ou787ZXTM0qPzkHd3Eyshmcz0MkZnG/XpdkIzvVHHmVVBIkL7GPUzb7MLx2Wv2bIsI8g2pGS51CZ9X2QkFLRzQwcFOUcGP37WBTwSzvhZu3BuC1HHBOvyTk/sYl+QcIA4jURvaUUudg6dVIDkyQ0tJS7Pq9RtnCJxOz/A07ZqHuyFsHg=="
}
}
}
| Attribute | Type | Example Value | Description |
|---|---|---|---|
Authorization HTTP header |
string | "Bearer {customer_account_token}" |
JWT Token of Customer Account |
payment_method_id |
string | "85688223-b4ee-4c0f-8593-513c182ef7b1" |
Payment processor UUID (received on Init Application API call) |
encrypted_card_number |
string | Generated by web/mobile app | |
encrypted_expiry_year |
string | Generated by web/mobile app | |
encrypted_security_code |
string | Generated by web/mobile app | |
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_type_id": 11,
"payment_init_hash": "94eb252e930e1cda48faa08f5508408f"
"additional_info": {
"approval_url": null,
"approval_action": null,
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2738F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3934F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653",
"client_authentication_public_key": "test_client_authentication_public_key"
}
}
}
Request
- Frontend then sends order request.
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/orders",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"singular_point_id": 5753,
"order_type": {
"id": 6,
"customer_phone_number": "+381 21 123-45-67",
"pickup_asap": false,
"pickup_at": "2020-07-28 21:00:00"
},
"menu_items": [
{
"price_level_id": 507,
"quantity": 2
}
],
"customer_info": {
"first_name": "John3",
"last_name": "Doe3",
"email": "johndoe1@gmail.com",
"phone_number": "+381 64 432-01-92"
},
"payment_info": {
"payment_init_hash": "85688223-b4ee-4c0f-8593-513c182ef7b1"
}
}
}
MENU Backend sends authorization request to the Adyen api. If authorization was successful, MENU Backend returns order response.
3DS Authentication
Configuration
There are 3 levels for managing 3DS in Adyen: Default Authentication Engine, Dynamic 3DS Engine and 3DS API request preferences.
By default, Authentication Engine handles the PSD2 SCA compliance. It will not trigger 3DS for out-of-scope transactions or if the issuing bank does not enforce 3DS. Authentication Engine will also handle requesting for an exemption whenever applicable.
Important: For the test environment, 3DS is enabled by default. For the live environment, 3DS is always enabled by default for Maestro, MasterCard and Visa, as well as for all other card brands when Adyen is used as acquirer. If Adyen is not used as acquirer in live environment, then Adyen support team must be contacted to enroll American Express, Diners, JCB, etc.
Dynamic 3DS Engine allows for setting up rules to determine which payments are sent for 3DS authentication and which should be processed without 3DS. There are two Dynamic 3DS actions that could be assigned to a set of rules: 'Always', i.e. use 3DS whenever possible and 'Prefer not' for not applying 3DS authentication, unless the issuing bank requires it. Dynamic 3DS rules override default Authentication Engine logic.
For managing 3DS on a transaction level, following 3DS API request preferences can be send in the body of POST /payments request: additionalData.executeThreeD, additionalData.scaExemption and threeDS2RequestData.challengeIndicator. Transaction level 3DS preferences override both Dynamic 3D Secure and Default Authentication Engine rules.
Important: MENU is using combination of all three available 3DS management levels. When 3DS is disabled for the Brand and Venue, additionalData.executeThreeD: false is sent with the request which overrides both Adyen Authentication Engine and Dynamic 3DS Engine and prevents any 3DS related actions. When 3DS is enabled for the Brand and Venue, no 3DS related additionalData is sent with the request which means that 3DS will be applied automatically by Adyen Authentication Engine, unless the action is overridden by Dynamic 3DS rules.
Important: On the Adyen side, there is a configuration related bug that makes browserInfo attribute required for 3DS v1 requests even if the request comes from the native/mobile app. Solution is enabling browserInfo auto-fill option in the account configuration. This cannot be performed regularly through the Adyen backoffice, but should be requested from the Adyen support. At this moment (December, 2020.) the issue still persists for 3DS v1 and according to the Adyen support, they are working on a fix. 3DS v2 flow is not affected by this bug.
3D Secure Native Flow
In 3D Secure Native flow, the card issuer performs the authentication within the client app using native SDK components. The shopper's identity may be verified using passive, biometric, or a two-factor authentication approach.
- Client app initiates the flow by calling MENU API /payment-processors/init-payment endpoint with all the data required for initialization
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/init-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"venue_id": "6b76962a-7a42-4cf2-999c-1aa78c2547f4",
"payment_info": {
"stored_payment_method_id": "550adfa0-68d6-11ee-8c99-0242ac120002",
"amount": 1256
}
}
}
In case of a web app, browser info with the following properties is required in initialization request body as well as redirect URLs:
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/payment-processors/init-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"venue_id": "6b76962a-7a42-4cf2-999c-1aa78c2547f4",
"payment_info": {
"stored_payment_method_id": "550adfa0-68d6-11ee-8c99-0242ac120002",
"amount": 1256
},
"device_info": {
"userAgent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.110 Safari/537.36",
"acceptHeader": "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8",
"language": "en-US",
"colorDepth": 24,
"screenHeight": 723,
"screenWidth": 1536,
"timeZoneOffset": 0,
"javaEnabled": true
},
"urls": {
"redirect_success": "https://web-app.menu.app?x=1"
}
}
}
MENU backend sends POST /payments request to Adyen API including threeDSAuthenticationOnly: true parameter that instructs Adyen not to authorize the amount, but just perform the authentication. If transaction resultCode in the response from Adyen is AuthenticationNotRequired, no additional authentication is needed. MENU backend responds with additional_info.approval_url and additional_info.approval_action set to null which allows client app to go to the order create step:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"additional_info": {
"approval_url": null,
"approval_action": null,
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
Otherwise, if transaction resultCode is RedirectShopper, IdentifyShopper or ChallengeShopper, further authentication by the client app is required. Authentication action specific data is returned from MENU backend to the client app in additional_info.approval_action attribute and should be processed by the client app SDK:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"additional_info": {
"approval_url": null,
"approval_action": "ewogICJwYXltZW50RGF0YSI6ICJBYjAyYjRjMCFCUUFCQWdDcXJmd3d4U3M4NDYyUUlQS3VJUmZpQk8ra283aFVCdEs3WVlkaFRTeTRVQUE4UzNNdDZnWVJ0UW9ZYXlISEpLYXA3ZDYvY0pLY1l5d0prQUJhYVNWSnJNZ083OXJrQmhyOVA0R2JVaXNkb2xkUHBjRlV4blB2ZGE0akgwcjl0bFBpNVZxdllRMWVUUVZsT3dscmlkMTlxb0RwM0tjOU5TQVZLWGRQQXZzZTVKdklQQUhIS0RjdWlUWFViYzhneUxMWTdseFVhZVl1b1BDWUdxQ3FwZnQxNmdqSnB4Q2N5VlR3UmNSMHBBbGJ1U3EzaTgxbTRwOW9mTWg0MWpzZkNOTHEwUXFMeStoSlg5R2wrZ1pOTXlEZXVSb0xtdzBWTCtYdVhBQ3Nwd1JQUzBYRTg5M1NsaUVzT3psRkxxTlp2SlJXTEpuQjlEaFY1OXhlaU9BMHN2L1hsQ1haWFJXZE83dmJMVWYvK1NMb1ZrRnVtZVpFUGtRQ0NtbndPVW5wM0xHREtGN2VUOGRLMGlaTHc1VTBUK1BPend6YlZlWFJ1eHptRVZmeVhrNmdxS3pzK3ptNXBnQlN2NGlPZWJFdUdqamJFUkQyTEVzekZWc0swaDJ5dTE3M24xcC9PelBJM0tIUW9OQVExNkwvcnVHOE8zSlBKbTJib3pReHNpZWJ5Ti9NL3Zrbk9vWk1UYW5hWGs3WTNVZERURUhuUldVOWN4KzR3RVFBSWtnd2ppbUF1QkcxNDJtcFZ0dFl5cjBHUzJHY3NmV1psazltQlJZNHdoak1wU0xiVDAxZkFGa0F0aEIxSHVjdkFGdklFVEpiRmtEUWdwM3A4SERhanp6c3lxS1pOWE1FZU5obmltQUxCTTFQWHlNTCtRVFRkdHlYNEM0Z2JJK1ppeE9HR0JERmUwQmV1d1BlYVl4SzFpNXlWYkx5QUVwN0ltdGxlU0k2SWtGR01FRkJRVEV3TTBOQk5UTTNSVUZGUkRnM1F6STBSRVExTXprd09VSTRNRUUzT0VFNU1qTkZNemd5TTBRMk9FUkJRME01TkVJNVJrWTRNekExUkVNaWZSSktzamErY3djUGkxSXdvbzR0MjRSQ3VvVHNxS3NLTUw4ZTJhS3ExeGZWNDZvSmhtSDAxdHhCSWlsWkRuSlhhb29ibTlEWGduRzQ5cFIyR29Sdk8vWXFEVVN4cFN1M2JQU04ydjdmU1lYUW0rdFBrbXhNS2dLeC8yZDFqRzdlRTBxTTNWejJZcEJDV2ZTQXNvZVhtVTdDTDdGa3dmVlEzaXo3aE94VVdjNHBtbjM2Q0tGSm1jRW5WeDR5YXRGdmtvYXFnd2VLVEN5blBxTC9zaVBocFNRSXJBZzBqSlhvN2kvVFhwSktRdkNQSEdiSU02cTVUaHlSdzJsS2d6TTJkODFxYy83TTJtaCtvSHlsRWp1OTFadUNzajRkU3AyRUJuNTd6blo0RjhrS0JaYmRNMWhMWWF5SmVVbi85QnNLMUh6QzNsUnB4d0Foanp0Z3JoRXl0czljcVhaQTYrMi9RQlE0T3lLTEFvM3ZIakhKeWIxU3BMM0RJWU0wbHhmS0hKZnJGZUxad3NPak14MjFNQTBLdjlvZG96eS8vRUgreVdnSXpIZ1pRa29LS0RlekVwNlM3RmFnSVRsK0pabFFHUFpzai8yZ1pSY2dpRTVhV0xQajVoQkZRR2E5MFhQNjJGMStYeGh6UlFUVG0ydTBCUDZ0OVBWQ0poOWowQlN3aFVOZDF4Yi8wRDBPV1hyMTFxRlZiSm85eExqRVpsYTF0ajhJQWV6dllxMUtwTWRyeW13SFRXcm8xTyswbkpia2N3a0RJaWNSbnlIQWZVb1gvUHhwWm83Mmo3ZHhOSCtXOHMrL1dUdTdobXd4TDNSYXRHd1hacVBtQ0c4ckEyVDAvaDZiVU5pT3lFc0RmTkhLcnRDZXB4bENjbE5PL01WbDEyVGFOLzc2YzdqQmZQbjBXeDJLSVkvTjBVckJPM2JzaGVsUVVnaC9rakNTNXNGRUNBb1dmUjhoRnlMZ3hOcVdGbUJPanV5V3ROTjRDdS9wMXloTGhsMTgwUGFGeVdSbU1CenJHdDg0SUtxOHFTQnNya1BYNmtRVGVRQWJ2aG1BVG45ME90eDJmcTd4WmNvMXZic24zUEJIVjh0c1JrM1VyTUs1T3dBYmlySGdlUXFuYzhxaVBZRjdBQ1pCeXpwNmwxZXY3UjhQdGRrcllPTGx1TDFUcHpzU3ZobE5FcWJ2aW44V1lyY2RpTlRLaWErRVdlY1pWc0k3QURlV05zMXMybWo2YnBxbDFrbEs0czNCYnhhbGo1cjhSaWp3YVZyNFB5NE9FN1lZME1CUjhTQ3FCTlZ5QmRTV2RDcnQ3SFlDVDROemppUnRONGlOeTBUZzEzUUFwVFNmOHVTUG1JeDJMdVpnTXJVM3Y3RUZ5c2RJUmNoSHE0OGVqOGw5Y0tDVDZzWllrWGRpSWxNMTJuZ3ZHUWRIc2M4MGh3WUNQK2VlRVhOTHBGQVNHcmpZRmZHVzl0RWRXNjM2dHRVMnhVaFBjOXJtaFdYV1BPMkdpMUg3WXYzZldrUzAyMStPWU5mQ2hvOGovSENzQW14TFpXbjRVZEt4TDg0cnJPWTJSWnc5UjZkNGcxR3VSUGllbTlqb0sxcDhRd3RXSEJLeGxGS2hMZTRuU1JZNDdZL29SYk5DaXA1T2RKNnNDTG5hVjRWb045NldPaVR4elRTblZ1YXJNZEdiRFhjYVd4VEpDcmpyalFIa215TDBPK25jM2dYZ1ZyRVJ0RTFDM0NNUUpuQ3JxT3dINjJ4L3dkZ3J3dmI4b2VsQ1pyV2pxRkc1QWVyTWM4eStJandJc3MwQ0JPNUFiRXFVQ3g0MUxsL1RyOWhDUXFiemNrZFFHcERKeFdvY214ZGNlWHRtOTl0QVJPTUdBaUFYODNmVmJmOC9HR21JZDRGQndGdk9Yb3l4NENjUzJFY2VVRWo5VG8rMjYvd1QvMjd1ckpETTdMQnBBVzdnNms2ekZhelRIYWdPUnhoOGlPNXJtMVVXcTIweDA1L3haQVIxc1l3alpvb2FzK3FRR2lDZ2d1ejIvOHltNHcwYnRLRSs5RjlzWFkzdjdKdHZYYVJ0T1QwL2x2SkRYOUtiaTFVTU1RUkhYWEg2c3NvNTJJWldCdng2L2FGZlVpWHZlSVdjRVV4RjYrR2NOY0lCRlJwdEg2NEcxMDNhOWlwejBQSjJHbEl1VUoybjdMMEp4R2ozV1dSK0ljRDQ4alJYcHJDN1ZOVUEzRWIrWURQSENaRXRhZk9ORlZqWXFJeWdPZDkxajZZQjFtOWMzMTFyU0pnMGJhUlVTTzdNT0hxZ1BwRzd4aWFyRjUyTSt3bmRQU1NSUmU4eUtqTHBWR1IwRjk5N3VEOXEzak8xNU9kZmUvR2ZEeXByUE5tMmYvQ0dHMXZOK09JQ0NWZnNIazU3ZmYwRkhiMGxCZlZxOExQVzcvR1FjT1hRZlY5RUZsVHAxQnJZM1RocFlxYnc2TlpNUU1jNWtBamF1eTNRQmhkSDF0Y2E2VE9tak1ndnMxdXU4cThRK2c1RnRaOGpISGtpUjJlNWZZc3VPUWVGNjF6MlhGdHhueTJvMFk1c1VrRHpmcnhBUlJIWW9LdnQ4bmMwNysrYlVyeVlyMVJJSmJnN3hkYnVmYkJDbG9QMkcwVjFJb3BFampBdEhITk5yV2ZIVndtNW10dTJxZ2wrRWkxWVk3NGpQWURmQ0F2OWJyYkQrOXlwbmg5Y2ZQUWsvSVp0dk4wUG1pY1cydkN1UTBtU1FGMXJqbk96cVNDUTB5NU9JR0dTTmRxY0JGZ1VVSDZMOUhXWkVIT3hmTE5SbEFBc3hINW5VWFpDQmZ0RjJFNjdFdHFqQ1dBVTVJb1lxT3E4cTVPeEdTR3JtNFRYUDNJVENJUzlaamlVcDhNVEFkRGJ6MWlRRndqNEkyNEE4RUQzVElIT0ZiaE5zbiswT0p3RnFpZVBQWmE3TzdDVExqSGpnWEIrdGFWWVoyRnpzaDFFTWo4NGppektQQy9CeVp0VEpTM0VxRXA5anBqNGhKQTF6andnTG1IdVpFU1BqZUdITVZTeTVxT1BtS1JnZy9WckR0OWJXbVc1dVk5SC9YbFV1ZXFOMTZCRU5teno0MGE1L1liWlBxSk9YeURqOStWM2dkcENZU3ovdFZEWDdlQTF5dEtJT1Zuelk0WC9OTS81R09EZzB5c0ZBSVVzZUFiWTA2eHFmOEFhdTNpTmpVYWJjcEFNcWloLzVGZWwxRWtZLy85VjJrRmFyWTEwbFM4STk4YS9weEZnQlJBc2FGRGx3ZmZ3UUxyRG9jZGE2UmFBd2sxbFFzcmkxd21FdktkK0Z1ZlZ2bHBycGhiWmRSRWQ5RDYxbjJqNzRaU0g2b0Vra0tMQTlwdlFXU1gyRXJGMUdVK1BQMW8wOVVkUmlFWXh3S0FKNlVpNWdHODcwR3Z5VXhjZWZabUc3SDNRZlBzdEV6VU45V1M1cDFJWlBUYmUzejU4aGhjd0cwbE5JOEZGaTBxV3ZZYnhkU3gxVldxMWErTlM4bzFORXV0RVRkL3AwV25tc0tidkpJdlNRbEhodDBLRFJRNGxjaGVIRVdJZXhQRjhvdlkvS3Rhd0psVEhGYWM0SnUvMkZZby9TUmdWcGtMVWcyWE1tWC9qaWI1eTBqaG1zRUpXVEN2Y05kcnliZkN6MG9UWVpxcW10TjVXQjVlM0QwY1IvMnJ4cFZ3SXE1S3hNNU9SWlBLY0xaa1FEZVNndG9GMGovQUtUZS95bDNhNTZpZ1hTcFR5ZXg4dDhYUUNxQmZycnYxaFFpNEY5R1BFbVRhMmRoNHUrRmRmTlJTK2JTWVZGczVjTVhTNW5sejRxdHlrazBjOFdYeGRWamhNNk5LRFFlOXJVckNGcXpNUXBFa1dMaWMzMkwwcGNpS0s3clNaR1hsamZ0WTR6NnBybjdlRDZqNHZmMGdUMG52Sjg3WFd2RG9Ud3BUMlV4M2dYT1VscUxaV2NqWXFDTkFnbGdIdGxXcE4yYXhodDJTZndrUmIwSnZZS1F4SnZsdmJjb2lxeWtjNXVla3M4b0JZdkNXNUpCUTdldCtkcWRPbys3dU1tOWowU3JOQlU1QlEyN3NBTWI1SmQzb0ZVUEpqVFhibTE3cjNWbkxiYVB3UE9KK1VPTG8wY3ZJZDBjdW5qbitBa2RwWkV1ajNLTzIyMEpGMERHT0doRmlBRTg5KytBUGZXNnBlWEdWZDVZQ1pzNVNuckpHR0NVNjZxYkxOWnJwSU5IVnlSbHBNYkNORzd6QXljSFZvRjQ3Qy9YcHFiaDgxZUZDQzZneE5HTzJCWGo1Mi85RzJ4N0VWMnBaVVpNdUhGTVpvOGhyT3V2ci9GS0hnM3RzTUZDQVF1bXgxb3pZWE52eDJYSnAxeUk0UUQ4OFJnaXNLVkpoeGt2T1A2VjZtT2xZNVordEg0K2NLWkNrY2EvNWQ3WUVoSXpMOERCazZsSG54dGo5SzF6aElINUlLdVdrNW02cE44bkl5WktJNFhTRWZjbE9LdVhQbSsrZTYrWHptRE1aa0hoVFBZbUdRVUM1TG4xYnFPWktWSnJRQitzS3dpQ0RObGFib0V0SjhBNkdMa0lMN0N2QzNLTUJIVTBlWkc3d3dqSUk2bTMxeXF3OFlUUjhoZnZ6VzZpancwczZjZzNMTnJjdmhEUmRhK1o0a05QZW1aRTFnbUI0WUJ4TVJHMVI2b2w0YmFybXZidk5YNUd2dDBzNUpiTTIvNk1PT2NHY2hmR2wvckFHR2pSd291cEU2WitxcER6dTgxdmtUNk81cktIbFJwQU1DNE8wZVg5R3FidzVsN3pHdTdoS2lJaVlsTWFmL2NWOVZqSytYMFUzajZEc1dKQ3ZEcmtmT2MvZFpJQUV1MkhaVlg4b2RCNVFrTnRXa05qVlhvaXhVTW5DYXlJb3BBd2N0eVJrdXpNSEY4NlU4d25SKzIxNkNPbSt6L240NjVReHBXYXJrTDFWU2g4b1lBVjM0UmRPR2cyRkFPV1JMdDR5MVF4eXlhc21wQ2FreC9kaTRpVG5xbDdWQVNBWnYxRGtNb21ZTUFibWIvL3QyUHpRendvZWpSbDVSTitPRW9zTUFyTXBXb3V6cFM3c0d1cStuM3pGSHVNdkJ6YW1aajdJcWY4Nkd5RTE5RHo4b3MzbzY3S0J3RXJ4dTZVMVd4dzBQL0VtaWx5S09aZk05V1cvcS8ySXE4UGJKcUFZNFlkTmJBekttbmUwL0dlVjJnNTluZEl2VHNJY05hZzJJV0RLUGF2ekdtaVJacXVKbEYyMXk5eTQrc0hHK2x1QWszV292VjViNGI3b0E0aW8yVG5qbkJGVTR1SFhTUndJRXB6RGIycEt2d214TWF1NVRKZzFGMUpGYVR0VTkwSmkvOXZhMzBEYmVOeFRNd29CRUg0MlhQR1VTNTN0R1VWTERQZE1PcTdQakM0MjR4ZG1QM0c3ZXEremMwaWlQK1FVYlZhT1Z5Z3Y2MXErR2k1ZW9WamE2Q1RKL3JrcmZYc0RrOTZVOHhBaWYzWHlKLzRSOGlSRjRIdnlTSWpTdW9mVGtkSnRZM2VYeEg2R0lGaVNwN0RjVFJPbVhIMzhyTEVWdW4zWXVDeTNkMVZmakpZeUJXUXlLYU5KOEl2T2toa1JraVYyTDd3KzFVaDBFYTVsY0ZIZTlub1FwNGw5Q0E5cjY2WThQT3N4Q1VnK0dtOE9TNUV2d0M1RCt5RmdIakpzaStwZ21WM1V5RlpkdWYwb2xLWEdUTEJKNkFaeXdOdFQ5R2xFZHdublZwWkMxcGtmMStHdnBPRmJiUXhxK3JVOUE3Wml1RVdkcE0yU0o3MXpyRFMzWXhqM0V1M2ZLamZjQVVOMU11b2luREdDSVdNYStVQk52VXlQem9uNXJSeGRJUCtWdzBLcXg4Rm1jc3paR2pRVTl6TVBWUFRvQ2NDcnNxTWFWSVZERkgzY0VqT2lQTWtLcjVJTHdyTFlEenQvTUh6L3pTRlRvT0VEZUp2Uk5uR3VvNEJ3NVk4K1pwbVNWR2ZHM3M5VWx6ME5tNGZyNkx0dUdXdDRkZUk0RlRUMG9DWjMwdXVUek53dnZHMFZleVNRYW1JN3lxSUxOck8wSGVDSU8yU1FibXlpTkFKMnBLT0dpcENCN25meFI2Y0w0ZDE2QjNKd2s3aDRLdXdlQm5kcXVTVWFwRUtCcjQ0VEhabFB0OXJlaVVCQmNONC9FNGJoeWJrWUx1aHU0S1I0dmkrSEVCUEc0MEhJMFBiMTlIZGZndlVNQ29VajZvRlFzWjI5MmMwZ2ZCMDhrQXR4TGpBcUpjRGQrNVhaODNiMSsxcGtITmJsU0hEbmw3RlVqbkNVMDVja0kvbFM5a2tXbDRJSVB3ck9saXpkKzQ5cEdaalpWdFpka0F1dUY1YkdEYlBPQ2lOandPc2xKNnhQM0dINW1EeWoxWUt0UC9IVGVSUHZIbWRGVXViUUJsTGZiejFjN2p3eTdxYkh4cEJZdmIwem1tVThER0pQZDZaVGc4aG90TDZuKzl0bFd1WmpSSU9ndWNpY2dGSE9tblB6NVFWMTFvNXdlM1JaYm9qOXVGcWRyNy84UHNuRUZnaUpMZlRDaU16ZHY3ekhBN1VzNDZFWW9ORVlFOThZbWMzZ3Q5ODBTbHFoNDRVTkNDZWRzSUw2MS9MQjYwVmhwcWtmTE56Y201MUw4WFhmYmJ3dnQ4Yk9adDB1WDJQUkVRV1NOVStwN3crN0t5dUtDaS9xNFZ4d0swRUJaN3Ezb3BXMlBCbUZ0MGxMZGlYd2pYMnp3NWJxekJqQXlpL1dxZVI0eFZmTFJXazFIRk9neGJ5Q3Bhd2d0UHR4Rk5KeDFCTDB0akozUWtpYUIraVE4QTlITjJKdXZWSUptck9Pam8zWFhPbTVEUXBZczZJOUV2RmN2YlRlb3VsWmpuZzYyejZjVDlWMlh0QmpQSE5neUI5VGRrMnpEeFhsaDZJWXQySDR2bmNnQXBkY3ZPU2g2MjNETmxnaFZFQk9DUVJFVnBZZm9EVjZtQWZJRE81SjNrdkJ1Nktjd3RZRlJ6dFF0QndnRGpsNG5OU3RQaE9OSGpNZmxneDFZeHhGMjJvU1YwVDFvcU5OdkRxTkJNbFVqZWtjenNRVDl4Nk1YajFabXptNlBaeGxkSWVkRnFjdUtWNmpNaTh6K2JuQnptMEV6TGtaK0IzMFZCSkQvVEFsQTg3eHNSbjJtb1FvRUlSVmYxODlMekVIYTdRRmpZaEtrT0p2YVdocmRVNzZsWTVueEMwdDZNTGhIa1FCa01zMEtaOHBLR1RwclkxcFBUU2RReTRpRW9ROUw5UFdHYjA2L3o3czVhaGtwWlZlanVBdHZTYkpoUkE3aCtXdjlTb3pJcnVpQk5JeHUzd2d0SjBQdFhrRFg5dmRTUldNdGZHeEpSbW05TWRHeTNSVk5TNGN3VmYzUnV5K0VqR241OEd4VDB0THFvTkIvbVlMQXJ0VlVGR0hLYVJWSjRhTXlmRWh0VUhpT001ck5DL09vMTV2b0FmRjYrcC9lV2dXN0FHMTlBM2dXN0VTTzNHMzltRlJ2eld4LytaZjQzb0RqMlBUU2c3U3hzWWFzOFp3c01CeitRYmppS1JYL1dTL1BhYWJsemR4eHMyNmNrS0JVNUhqV1c4NDFjVVQ0TTBYeVllWDlBZlZkZ1hlQUVIRmFOZ1FIN0JZSnV0MlB0Y2RCUDRJWlp0dlBDN0pFMS9TSVpzQjU2YTJPNFlNbDlrV250cU02QmUyNnVLdEVoeTJPckliV0dpWHNHZkd5Zzg3U2lmLzNpZHF3Z1VsR01xWENDUmpuRjlOcC8xeEpBZ1FKR2l0YUE2bmZRcTk4RFVESFhCeTBjZnlraTJoa2lrNDVSMUY0dENud2RORC8wVGpzRVJMNzJCbE1vVzFlMEtpeVhvOG50YW9YZTNjb0NxNVNhVXdiQ2F4Wm5yM1lNYWNrQlFlazkyU2c2MlpFT3VSLzVpVTFPOE1TWlptNTM0ZmtOYjFzWkNoV1JtWkQxOGJEUjRBdW01UFVJSGxiTHlCaTBMUDR0SklON0lyVVU0NFFlbHI0OEU4czVjUGZqeVpQN0pUMGJMdDhKQVAxdnRLKys5WUtCdXJ4N21RUUlSeTRzOXVwWTljWmNJWkRNWW8xbGRrMW5mNDIxdS9lMEd6QzBVR0UwazAxSWw5RitGcC9HOGkwdVB3ZHRrWFpBU2k5MUppbWhaREk3RTNoQTBEaHVKZ0NnSW1jUXg4ZHlnVkZ6c3gybXVFT1BPWlk2QitkRDVsRlJjYUxlVzZiNFMzbVdOMnZVb3d2Smo3eXRQUmtYbVFDekR6VjRvQzhTZm85eHNKcSt1Szk4VU9iU2tPSHFJRzFTcW45OUpiaGREZ0RvTnF6RXB3OEZOYkFLQkxHRkZLU0ZLNlBiUlB1U0t6WnZ0SzZ3RkE4UjE5ZGJ4WDN3WXVvMVVLNFpFNHJqS1ByanU3NE4yMzVHdlNwNUp2bEs0RlFVdnFVVmdPcEE1djZ6dXk3b3dSbk9uQkVHNUtoYjZKNTVPTWRlaldBNWlqL0pXNzZhd3ZvSVZaOC9MbGFXdlo4Rk5rWld2R2VQVTdTeWJYS2t1aTNJbGZxV1B1WlBoaTYvaUVjNjRQbjg2MkpiODUrcEJPOVlVcXlhTW5RY1RKVS9UdzNFeERBcjAxVUZZNXJ5cXZSK3pUaFdTT0ZSSkg5emNCYlF3dElpQ3p3WEVsRWl4UG1aVTFJVFpZTUJGQ3N6NU4xK0tTd1NYSjRqbW5OQTJ1bjNucjFPSHNmeHAzQlhZMlBwZ1BBaklIVUpSaGFVbVlyMTNGMy9kZ0dPMU9IbE1sajBUSTg2YUFRUkEveWg4cVh5aCtwSTdLRUJvTjJrZ2RxRGpYU0grejhLT3o1TDR5aDc4Rkg0ZVhpaG1wOXpUUEVOTVpYTXIySTlxT1c1WlNMUHNpdGVNVTlXK0lnWjZtRGdURktrK05ERnMxYURDVFFGWlhoTHp3ZVlKQ2k2YnlmTWpUS2tJVFcyZ1ZzY2RacTBNSzZwcG4wV1hyeUNXZys4Nkh2RmdlbW1oMktQRVF5cEtXU0RRZGI2VzRZbGxOaUo4VTgwQjJZL3QvNW5odnkyalhTNlZPMnphcFRTanNkOW1LU003R1IwaSt2Zm9LRW82M0dhSllpSDhuWndXbjZtbG1zbGUyZUhvSDEwS0R6RGtDbUhVYVFtZ2NjMy80SFNKQlZ2a2RSRTE1YXVXOWJRcStjSThzUEJFWWZ5WWJlNThKdjZxUmxkNUpTdlFNWnJ1b2JZSWFvWldOSW42UDNZOXZNV3ZNSjlqV3dQUkFQMGVzSTRoWVdwRDYvaTFZcjVCaFJ1RDI0MHVOYURLa2U5THdHdktvRGRGbEVzckxwUkpkUi83WVB5bVYxdEs2Mmg5WUw0czRZc1AvLzByY1RveERqVnZMcWluUVNrZjVGSzQwTE55ZUhjcDhhc0dlekVQbjIrSFphd1lib2Vxbjh0REF4N2tBdnFmQWpMUGlSTmZRU1JxUXFLOGltY3JKWTR0YW9DQTc2R1ZYa0FtNHdXN1B5R3VrVk5NWjQySDRPMkw1dDhhSlUyZGtRV3VObmtVNVpWWXJBVVdtSXpMVFFyZml2VWVwckxTVHNMM08vYzU5RzlZalE1L09KaitnTU1pSy84U25naDVjRXJUSWVZSFR0c25udUxHMkRnYlp5Mll5Z1NGMmt0RUdWUnZ3UzNGdnEvdHA4QWU0ODROUDFnMzVLQ25pbENqUFE1WHAxbXVwYlRUdldLUnVNSXU3RWtMb1p2OUgzV1daV1dCMlVvT0d1N0x3YTVLdjNLdlB1T0ZId3JaanRHZ2hZSWd1U204U2R1YStkdHRlcnMxY0FkazYxSFFpaFdyWUo5N0U2K2NQell0NzdvT25OdnpORGF3aFpGak9ldmg4dW9Cc0dBOG1qNGlCN3ZrUFdBM0tYekMxZGovcVNBdU9YczE3RFMxekdSbTlTVkV6cEF3UmUyZytBbVhZLzN3bE9FN0pwS2JTTVM1blAvc0pRQzBKL3RYaU1YSURNOExCUkJsWFErUDZ4RGtScU1mWWl2QTQyMU5ZNXQvQWVLSVpvdUNpTUFXQ2tEUDNoM1U1NmE3bEVodmZCZTgzQXNaRVRGRkZjRTJFbEtORDZ6bkJIZzhKeWJXY1hTWE9XVjVBUW56MFRaY21uV0h0MmVsVGY3NlBBd21WbjVzM1ZaSTYvakxWaHhvT09pREd0QjRLUFJ5Z1dTZXp1Z1JsaW1GQmQ3K2VPMUpVPSIsCiAgInBheW1lbnRNZXRob2RUeXBlIjogInNjaGVtZSIsCiAgInRva2VuIjogImV5SjBhSEpsWlVSVFRXVjBhRzlrVG05MGFXWnBZMkYwYVc5dVZWSk1Jam9pYUhSMGNITTZYQzljTDJOb1pXTnJiM1YwYzJodmNIQmxjaTEwWlhOMExtRmtlV1Z1TG1OdmJWd3ZZMmhsWTJ0dmRYUnphRzl3Y0dWeVhDOTBhSEpsWlVSVFRXVjBhRzlrVG05MGFXWnBZMkYwYVc5dUxuTm9kRzFzUDI5eWFXZHBia3RsZVQxd2RXSXVkakl1TnpneE5ESTROall5T1RVeU1EVXpOQzVoU0ZJd1kwaE5Oa3g1T1RWaU0xWjVURmRPZG1KWVFtaGlibXQxV1RJNWRDNUtNMlZZVld4YVpXNXZVV05xZGtWT1kwZE1SVmhSTlc5dWJqVTFRWE5wWlhadWVWTTJWVmRWWHpsQklpd2lkR2h5WldWRVUwMWxkR2h2WkZWeWJDSTZJbWgwZEhCek9sd3ZYQzl3WVd3dGRHVnpkQzVoWkhsbGJpNWpiMjFjTDNSb2NtVmxaSE15YzJsdGRXeGhkRzl5WEM5aFkzTmNMM04wWVhKMFRXVjBhRzlrTG5Ob2RHMXNJaXdpZEdoeVpXVkVVMU5sY25abGNsUnlZVzV6U1VRaU9pSXlOakl5WVRKbU1DMWhNalEwTFRReVlqQXRPVFk1TWkxaU1EVmpaVFU1TmpNNU9URWlmUT09IiwKICAidHlwZSI6ICJ0aHJlZURTMkZpbmdlcnByaW50Igp9",
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
- where approval_action is actually base64 encoded string that contains JSON action object returned in Adyen server response:
{
"paymentData": "Ab02b4c0!BQABAgCqrfwwxSs8462QIPKuIRfiBO+ko7hUBtK7YYdhTSy4UAA8S3Mt6gYRtQoYayHHJKap7d6/cJKcYywJkABaaSVJrMgO79rkBhr9P4GbUisdoldPpcFUxnPvda4jH0r9tlPi5VqvYQ1eTQVlOwlrid19qoDp3Kc9NSAVKXdPAvse5JvIPAHHKDcuiTXUbc8gyLLY7lxUaeYuoPCYGqCqpft16gjJpxCcyVTwRcR0pAlbuSq3i81m4p9ofMh41jsfCNLq0QqLy+hJX9Gl+gZNMyDeuRoLmw0VL+XuXACspwRPS0XE893SliEsOzlFLqNZvJRWLJnB9DhV59xeiOA0sv/XlCXZXRWdO7vbLUf/+SLoVkFumeZEPkQCCmnwOUnp3LGDKF7eT8dK0iZLw5U0T+POzwzbVeXRuxzmEVfyXk6gqKzs+zm5pgBSv4iOebEuGjjbERD2LEszFVsK0h2yu173n1p/OzPI3KHQoNAQ16L/ruG8O3JPJm2bozQxsiebyN/M/vknOoZMTanaXk7Y3UdDTEHnRWU9cx+4wEQAIkgwjimAuBG142mpVttYyr0GS2GcsfWZlk9mBRY4whjMpSLbT01fAFkAthB1HucvAFvIETJbFkDQgp3p8HDajzzsyqKZNXMEeNhnimALBM1PXyML+QTTdtyX4C4gbI+ZixOGGBDFe0BeuwPeaYxK1i5yVbLyAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifRJKsja+cwcPi1Iwoo4t24RCuoTsqKsKML8e2aKq1xfV46oJhmH01txBIilZDnJXaoobm9DXgnG49pR2GoRvO/YqDUSxpSu3bPSN2v7fSYXQm+tPkmxMKgKx/2d1jG7eE0qM3Vz2YpBCWfSAsoeXmU7CL7FkwfVQ3iz7hOxUWc4pmn36CKFJmcEnVx4yatFvkoaqgweKTCynPqL/siPhpSQIrAg0jJXo7i/TXpJKQvCPHGbIM6q5ThyRw2lKgzM2d81qc/7M2mh+oHylEju91ZuCsj4dSp2EBn57znZ4F8kKBZbdM1hLYayJeUn/9BsK1HzC3lRpxwAhjztgrhEyts9cqXZA6+2/QBQ4OyKLAo3vHjHJyb1SpL3DIYM0lxfKHJfrFeLZwsOjMx21MA0Kv9odozy//EH+yWgIzHgZQkoKKDezEp6S7FagITl+JZlQGPZsj/2gZRcgiE5aWLPj5hBFQGa90XP62F1+XxhzRQTTm2u0BP6t9PVCJh9j0BSwhUNd1xb/0D0OWXr11qFVbJo9xLjEZla1tj8IAezvYq1KpMdrymwHTWro1O+0nJbkcwkDIicRnyHAfUoX/PxpZo72j7dxNH+W8s+/WTu7hmwxL3RatGwXZqPmCG8rA2T0/h6bUNiOyEsDfNHKrtCepxlCclNO/MVl12TaN/76c7jBfPn0Wx2KIY/N0UrBO3bshelQUgh/kjCS5sFECAoWfR8hFyLgxNqWFmBOjuyWtNN4Cu/p1yhLhl180PaFyWRmMBzrGt84IKq8qSBsrkPX6kQTeQAbvhmATn90Otx2fq7xZco1vbsn3PBHV8tsRk3UrMK5OwAbirHgeQqnc8qiPYF7ACZByzp6l1ev7R8PtdkrYOLluL1TpzsSvhlNEqbvin8WYrcdiNTKia+EWecZVsI7ADeWNs1s2mj6bpql1klK4s3Bbxalj5r8RijwaVr4Py4OE7YY0MBR8SCqBNVyBdSWdCrt7HYCT4NzjiRtN4iNy0Tg13QApTSf8uSPmIx2LuZgMrU3v7EFysdIRchHq48ej8l9cKCT6sZYkXdiIlM12ngvGQdHsc80hwYCP+eeEXNLpFASGrjYFfGW9tEdW636ttU2xUhPc9rmhWXWPO2Gi1H7Yv3fWkS021+OYNfCho8j/HCsAmxLZWn4UdKxL84rrOY2RZw9R6d4g1GuRPiem9joK1p8QwtWHBKxlFKhLe4nSRY47Y/oRbNCip5OdJ6sCLnaV4VoN96WOiTxzTSnVuarMdGbDXcaWxTJCrjrjQHkmyL0O+nc3gXgVrERtE1C3CMQJnCrqOwH62x/wdgrwvb8oelCZrWjqFG5AerMc8y+IjwIss0CBO5AbEqUCx41Ll/Tr9hCQqbzckdQGpDJxWocmxdceXtm99tAROMGAiAX83fVbf8/GGmId4FBwFvOXoyx4CcS2EceUEj9To+26/wT/27urJDM7LBpAW7g6k6zFazTHagORxh8iO5rm1UWq20x05/xZAR1sYwjZooas+qQGiCgguz2/8ym4w0btKE+9F9sXY3v7JtvXaRtOT0/lvJDX9Kbi1UMMQRHXXH6sso52IZWBvx6/aFfUiXveIWcEUxF6+GcNcIBFRptH64G103a9ipz0PJ2GlIuUJ2n7L0JxGj3WWR+IcD48jRXprC7VNUA3Eb+YDPHCZEtafONFVjYqIygOd91j6YB1m9c311rSJg0baRUSO7MOHqgPpG7xiarF52M+wndPSSRRe8yKjLpVGR0F997uD9q3jO15Odfe/GfDyprPNm2f/CGG1vN+OICCVfsHk57ff0FHb0lBfVq8LPW7/GQcOXQfV9EFlTp1BrY3ThpYqbw6NZMQMc5kAjauy3QBhdH1tca6TOmjMgvs1uu8q8Q+g5FtZ8jHHkiR2e5fYsuOQeF61z2XFtxny2o0Y5sUkDzfrxARRHYoKvt8nc07++bUryYr1RIJbg7xdbufbBCloP2G0V1IopEjjAtHHNNrWfHVwm5mtu2qgl+Ei1YY74jPYDfCAv9brbD+9ypnh9cfPQk/IZtvN0PmicW2vCuQ0mSQF1rjnOzqSCQ0y5OIGGSNdqcBFgUUH6L9HWZEHOxfLNRlAAsxH5nUXZCBftF2E67EtqjCWAU5IoYqOq8q5OxGSGrm4TXP3ITCIS9ZjiUp8MTAdDbz1iQFwj4I24A8ED3TIHOFbhNsn+0OJwFqiePPZa7O7CTLjHjgXB+taVYZ2Fzsh1EMj84jizKPC/ByZtTJS3EqEp9jpj4hJA1zjwgLmHuZESPjeGHMVSy5qOPmKRgg/VrDt9bWmW5uY9H/XlUueqN16BENmzz40a5/YbZPqJOXyDj9+V3gdpCYSz/tVDX7eA1ytKIOVnzY4X/NM/5GODg0ysFAIUseAbY06xqf8Aau3iNjUabcpAMqih/5Fel1EkY//9V2kFarY10lS8I98a/pxFgBRAsaFDlwffwQLrDocda6RaAwk1lQsri1wmEvKd+FufVvlprphbZdREd9D61n2j74ZSH6oEkkKLA9pvQWSX2ErF1GU+PP1o09UdRiEYxwKAJ6Ui5gG870GvyUxcefZmG7H3QfPstEzUN9WS5p1IZPTbe3z58hhcwG0lNI8FFi0qWvYbxdSx1VWq1a+NS8o1NEutETd/p0WnmsKbvJIvSQlHht0KDRQ4lcheHEWIexPF8ovY/KtawJlTHFac4Ju/2FYo/SRgVpkLUg2XMmX/jib5y0jhmsEJWTCvcNdrybfCz0oTYZqqmtN5WB5e3D0cR/2rxpVwIq5KxM5ORZPKcLZkQDeSgtoF0j/AKTe/yl3a56igXSpTyex8t8XQCqBfrrv1hQi4F9GPEmTa2dh4u+FdfNRS+bSYVFs5cMXS5nlz4qtykk0c8WXxdVjhM6NKDQe9rUrCFqzMQpEkWLic32L0pciKK7rSZGXljftY4z6prn7eD6j4vf0gT0nvJ87XWvDoTwpT2Ux3gXOUlqLZWcjYqCNAglgHtlWpN2axht2SfwkRb0JvYKQxJvlvbcoiqykc5ueks8oBYvCW5JBQ7et+dqdOo+7uMm9j0SrNBU5BQ27sAMb5Jd3oFUPJjTXbm17r3VnLbaPwPOJ+UOLo0cvId0cunjn+AkdpZEuj3KO220JF0DGOGhFiAE89++APfW6peXGVd5YCZs5SnrJGGCU66qbLNZrpINHVyRlpMbCNG7zAycHVoF47C/Xpqbh81eFCC6gxNGO2BXj52/9G2x7EV2pZUZMuHFMZo8hrOuvr/FKHg3tsMFCAQumx1ozYXNvx2XJp1yI4QD88RgisKVJhxkvOP6V6mOlY5Z+tH4+cKZCkca/5d7YEhIzL8DBk6lHnxtj9K1zhIH5IKuWk5m6pN8nIyZKI4XSEfclOKuXPm++e6+XzmDMZkHhTPYmGQUC5Ln1bqOZKVJrQB+sKwiCDNlaboEtJ8A6GLkIL7CvC3KMBHU0eZG7wwjII6m31yqw8YTR8hfvzW6ijw0s6cg3LNrcvhDRda+Z4kNPemZE1gmB4YBxMRG1R6ol4barmvbvNX5Gvt0s5JbM2/6MOOcGchfGl/rAGGjRwoupE6Z+qpDzu81vkT6O5rKHlRpAMC4O0eX9Gqbw5l7zGu7hKiIiYlMaf/cV9VjK+X0U3j6DsWJCvDrkfOc/dZIAEu2HZVX8odB5QkNtWkNjVXoixUMnCayIopAwctyRkuzMHF86U8wnR+216COm+z/n465QxpWarkL1VSh8oYAV34RdOGg2FAOWRLt4y1QxyyasmpCakx/di4iTnql7VASAZv1DkMomYMAbmb//t2PzQzwoejRl5RN+OEosMArMpWouzpS7sGuq+n3zFHuMvBzamZj7Iqf86GyE19Dz8os3o67KBwErxu6U1Wxw0P/EmilyKOZfM9WW/q/2Iq8PbJqAY4YdNbAzKmne0/GeV2g59ndIvTsIcNag2IWDKPavzGmiRZquJlF21y9y4+sHG+luAk3WovV5b4b7oA4io2TnjnBFU4uHXSRwIEpzDb2pKvwmxMau5TJg1F1JFaTtU90Ji/9va30DbeNxTMwoBEH42XPGUS53tGUVLDPdMOq7PjC424xdmP3G7eq+zc0iiP+QUbVaOVygv61q+Gi5eoVja6CTJ/rkrfXsDk96U8xAif3XyJ/4R8iRF4HvySIjSuofTkdJtY3eXxH6GIFiSp7DcTROmXH38rLEVun3YuCy3d1VfjJYyBWQyKaNJ8IvOkhkRkiV2L7w+1Uh0Ea5lcFHe9noQp4l9CA9r66Y8POsxCUg+Gm8OS5EvwC5D+yFgHjJsi+pgmV3UyFZduf0olKXGTLBJ6AZywNtT9GlEdwnnVpZC1pkf1+GvpOFbbQxq+rU9A7ZiuEWdpM2SJ71zrDS3Yxj3Eu3fKjfcAUN1MuoinDGCIWMa+UBNvUyPzon5rRxdIP+Vw0Kqx8FmcszZGjQU9zMPVPToCcCrsqMaVIVDFH3cEjOiPMkKr5ILwrLYDzt/MHz/zSFToOEDeJvRNnGuo4Bw5Y8+ZpmSVGfG3s9Ulz0Nm4fr6LtuGWt4deI4FTT0oCZ30uuTzNwvvG0VeySQamI7yqILNrO0HeCIO2SQbmyiNAJ2pKOGipCB7nfxR6cL4d16B3Jwk7h4KuweBndquSUapEKBr44THZlPt9reiUBBcN4/E4bhybkYLuhu4KR4vi+HEBPG40HI0Pb19HdfgvUMCoUj6oFQsZ292c0gfB08kAtxLjAqJcDd+5XZ83b1+1pkHNblSHDnl7FUjnCU05ckI/lS9kkWl4IIPwrOlizd+49pGZjZVtZdkAuuF5bGDbPOCiNjwOslJ6xP3GH5mDyj1YKtP/HTeRPvHmdFUubQBlLfbz1c7jwy7qbHxpBYvb0zmmU8DGJPd6ZTg8hotL6n+9tlWuZjRIOgucicgFHOmnPz5QV11o5we3RZboj9uFqdr7/8PsnEFgiJLfTCiMzdv7zHA7Us46EYoNEYE98Ymc3gt980Slqh44UNCCedsIL61/LB60VhpqkfLNzcm51L8XXfbbwvt8bOZt0uX2PREQWSNU+p7w+7KyuKCi/q4VxwK0EBZ7q3opW2PBmFt0lLdiXwjX2zw5bqzBjAyi/WqeR4xVfLRWk1HFOgxbyCpawgtPtxFNJx1BL0tjJ3QkiaB+iQ8A9HN2JuvVIJmrOOjo3XXOm5DQpYs6I9EvFcvbTeoulZjng62z6cT9V2XtBjPHNgyB9Tdk2zDxXlh6IYt2H4vncgApdcvOSh623DNlghVEBOCQREVpYfoDV6mAfIDO5J3kvBu6KcwtYFRztQtBwgDjl4nNStPhONHjMflgx1YxxF22oSV0T1oqNNvDqNBMlUjekczsQT9x6MXj1Zmzm6PZxldIedFqcuKV6jMi8z+bnBzm0EzLkZ+B30VBJD/TAlA87xsRn2moQoEIRVf189LzEHa7QFjYhKkOJvaWhrdU76lY5nxC0t6MLhHkQBkMs0KZ8pKGTprY1pPTSdQy4iEoQ9L9PWGb06/z7s5ahkpZVejuAtvSbJhRA7h+Wv9SozIruiBNIxu3wgtJ0PtXkDX9vdSRWMtfGxJRmm9MdGy3RVNS4cwVf3Ruy+EjGn58GxT0tLqoNB/mYLArtVUFGHKaRVJ4aMyfEhtUHiOM5rNC/Oo15voAfF6+p/eWgW7AG19A3gW7ESO3G39mFRvzWx/+Zf43oDj2PTSg7SxsYas8ZwsMBz+QbjiKRX/WS/Paablzdxxs26ckKBU5HjWW841cUT4M0XyYeX9AfVdgXeAEHFaNgQH7BYJut2PtcdBP4IZZtvPC7JE1/SIZsB56a2O4YMl9kWntqM6Be26uKtEhy2OrIbWGiXsGfGyg87Sif/3idqwgUlGMqXCCRjnF9Np/1xJAgQJGitaA6nfQq98DUDHXBy0cfyki2hkik45R1F4tCnwdND/0TjsERL72BlMoW1e0KiyXo8ntaoXe3coCq5SaUwbCaxZnr3YMackBQek92Sg62ZEOuR/5iU1O8MSZZm534fkNb1sZChWRmZD18bDR4Aum5PUIHlbLyBi0LP4tJIN7IrUU44Qelr48E8s5cPfjyZP7JT0bLt8JAP1vtK++9YKBurx7mQQIRy4s9upY9cZcIZDMYo1ldk1nf421u/e0GzC0UGE0k01Il9F+Fp/G8i0uPwdtkXZASi91JimhZDI7E3hA0DhuJgCgImcQx8dygVFzsx2muEOPOZY6B+dD5lFRcaLeW6b4S3mWN2vUowvJj7ytPRkXmQCzDzV4oC8Sfo9xsJq+uK98UObSkOHqIG1Sqn99JbhdDgDoNqzEpw8FNbAKBLGFFKSFK6PbRPuSKzZvtK6wFA8R19dbxX3wYuo1UK4ZE4rjKPrju74N235GvSp5JvlK4FQUvqUVgOpA5v6zuy7owRnOnBEG5Khb6J55OMdejWA5ij/JW76awvoIVZ8/LlaWvZ8FNkZWvGePU7SybXKkui3IlfqWPuZPhi6/iEc64Pn862Jb85+pBO9YUqyaMnQcTJU/Tw3ExDAr01UFY5ryqvR+zThWSOFRJH9zcBbQwtIiCzwXElEixPmZU1ITZYMBFCsz5N1+KSwSXJ4jmnNA2un3nr1OHsfxp3BXY2PpgPAjIHUJRhaUmYr13F3/dgGO1OHlMlj0TI86aAQRA/yh8qXyh+pI7KEBoN2kgdqDjXSH+z8KOz5L4yh78FH4eXihmp9zTPENMZXMr2I9qOW5ZSLPsiteMU9W+IgZ6mDgTFKk+NDFs1aDCTQFZXhLzweYJCi6byfMjTKkITW2gVscdZq0MK6ppn0WXryCWg+86HvFgemmh2KPEQypKWSDQdb6W4YllNiJ8U80B2Y/t/5nhvy2jXS6VO2zapTSjsd9mKSM7GR0i+vfoKEo63GaJYiH8nZwWn6mlmsle2eHoH10KDzDkCmHUaQmgcc3/4HSJBVvkdRE15auW9bQq+cI8sPBEYfyYbe58Jv6qRld5JSvQMZruobYIaoZWNIn6P3Y9vMWvMJ9jWwPRAP0esI4hYWpD6/i1Yr5BhRuD240uNaDKke9LwGvKoDdFlEsrLpRJdR/7YPymV1tK62h9YL4s4YsP//0rcToxDjVvLqinQSkf5FK40LNyeHcp8asGezEPn2+HZawYboeqn8tDAx7kAvqfAjLPiRNfQSRqQqK8imcrJY4taoCA76GVXkAm4wW7PyGukVNMZ42H4O2L5t8aJU2dkQWuNnkU5ZVYrAUWmIzLTQrfivUeprLSTsL3O/c59G9YjQ5/OJj+gMMiK/8Sngh5cErTIeYHTtsnnuLG2DgbZy2YygSF2ktEGVRvwS3Fvq/tp8Ae484NP1g35KCnilCjPQ5Xp1mupbTTvWKRuMIu7EkLoZv9H3WWZWWB2UoOGu7Lwa5Kv3KvPuOFHwrZjtGghYIguSm8Sdua+dtters1cAdk61HQihWrYJ97E6+cPzYt77oOnNvzNDawhZFjOevh8uoBsGA8mj4iB7vkPWA3KXzC1dj/qSAuOXs17DS1zGRm9SVEzpAwRe2g+AmXY/3wlOE7JpKbSMS5nP/sJQC0J/tXiMXIDM8LBRBlXQ+P6xDkRqMfYivA421NY5t/AeKIZouCiMAWCkDP3h3U56a7lEhvfBe83AsZETFFFcE2ElKND6znBHg8JybWcXSXOWV5AQnz0TZcmnWHt2elTf76PAwmVn5s3VZI6/jLVhxoOOiDGtB4KPRygWSezugRlimFBd7+eO1JU=",
"paymentMethodType": "scheme",
"token": "eyJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIjoiaHR0cHM6XC9cL2NoZWNrb3V0c2hvcHBlci10ZXN0LmFkeWVuLmNvbVwvY2hlY2tvdXRzaG9wcGVyXC90aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uLnNodG1sP29yaWdpbktleT1wdWIudjIuNzgxNDI4NjYyOTUyMDUzNC5hSFIwY0hNNkx5OTViM1Z5TFdOdmJYQmhibmt1WTI5dC5KM2VYVWxaZW5vUWNqdkVOY0dMRVhRNW9ubjU1QXNpZXZueVM2VVdVXzlBIiwidGhyZWVEU01ldGhvZFVybCI6Imh0dHBzOlwvXC9wYWwtdGVzdC5hZHllbi5jb21cL3RocmVlZHMyc2ltdWxhdG9yXC9hY3NcL3N0YXJ0TWV0aG9kLnNodG1sIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiIyNjIyYTJmMC1hMjQ0LTQyYjAtOTY5Mi1iMDVjZTU5NjM5OTEifQ==",
"type": "threeDS2Fingerprint"
}
- Client app initializes 3D Secure Native SDK component and passes to it action data received in response from MENU API. The authentication result, i.e. contents of data.details and data.paymentData, should be sent back to the MENU backend through POST /payment-processors/auth-payment API endpoint:
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/payment-processors/auth-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"auth_info": {
"action_result": "ewogICJkZXRhaWxzIjogewogICAgInRocmVlZHMyLmZpbmdlcnByaW50IjogImV5SjBhSEpsWlVSVFEyOXRjRWx1WkNJNklDSlpJbjA9IgogIH0sCiAgInBheW1lbnREYXRhIjogIkFiMDJiNGMwIUJRQUJBZ0JUU1FidWk3MmlhL1B0Mi9CdnJFVHBsRUU3ZUV1OGJZMEc0NXFZZkl5Tm1Pc2NDL1NHek9SaHN6NkZMMmVTc3ppdnhMUDd1c2xFdXVrTDFERk1lK2J4RnlITlVJQUo0YnpZZEsxcEhnWlpMSndDV1NkVk13NllGd0F5bnZQSVhFYzNpVEpSZHdLSkNxVjR1bGluTjZXUk9ab3FXQ3Axc0tONHh5YjBtc1czSEFCU2JZTS9EZktldjY1QnNTTHB2NjZRUTAwZHdyT0VTRHZkSk8zS3l2eVpIT3l3M3E5VTVDRStwa2ZXQkkvdm53WjAvU3I2VGlLMk9MV2IrTml6SXQ5UU9GSmNiUU1CcFVydUpoRVJYNmlpNkhIMUdXVkk4OEpFNWtVakhsUGJMYm1tTnhIM05wSEM3RG1XeTNENWlIVXB3Ny83NHlUT05IRWg3OUg1UG02UFR5Nk01M0FiOThrMUFYWGF2cGo2VkRhbnEyeFZOaFdUWFQzMUVLTGhBSHJmSE11ZFVrazlDNVBvMmozZjl0UXZaWG51VjlNN2s5RTg4NWxHTDA2R25vd2x4Z1lPMTBxeGlyNUorL0lsMmx6WGdMMHNlNHNSMmM2RTdKdmxvTXlIL2Z5L1hRdXlVemdlVjJTTDZ3cnFJTGp6UElRVDF6TWVZbTdmUmQzTDZHZWU1bTFnbU9OOTNINE9qOTNhRS9WTEpZZWRBWEhGTGxlUzgxZUdxTU9SRzVqRG9hUkJRREZCN2M4djRMT3RodVY5SjJ0L01LdUk4ckxBd2VsWWRHeVdlUmo0RTNQN3VScXhXVFVTeEZTQlFKTGdobHo4VW1XdXV5czdnS0ZOK3JlVnZad0ZHSnNmL1pPL1dQcXM2MnZmcHd5dGVtWTF6K3V5WDZ3Tmp6bFBPeEJRYzdjTDZiY20xcjJOWFgrZ0k0OVFBRXA3SW10bGVTSTZJa0ZHTUVGQlFURXdNME5CTlRNM1JVRkZSRGczUXpJMFJFUTFNemt3T1VJNE1FRTNPRUU1TWpORk16Z3lNMFEyT0VSQlEwTTVORUk1UmtZNE16QTFSRU1pZldGczR4TVI1QWRKdGtWZWZNdGRIcHVVaGx2a01WQ1B0K3pEOWhjb3BNajEzYW01MmRYUmx3bTBHMDN6enpwVnRCV1BmZ1FSelhCQWJmNHVscXdNZlV2WWQzSmRqdU9uaUY4SERtdkxTaldTQlpleEY4TThFWEcwYzM1cmVsNTJZMFZoSWJuMDljUzZZWDNEK3BYNHFsSjVqM0dXN2R3VGVNYVVUK3dHM0JyZTM4MEppYjVEczhnNWJVbEtqcGlvMzRpZlE4Q0dqMGZpUlp2WGNuazlOZ2FiRW1GcUJlV1RUakxOYm5GYVYzMi85ZXZDQ3FQTFhWR1VaNGY2bDJGeWMrdEFRbDNGcVA5UnhKZXRWRitrSGc5bXk4VmlWYytVamlMQjlRVFpMVmRjOVhyY0FsUUJBQzFaMlMwU056M2pkeDdLZFBOaWdTSnNJR2l5SWp3YnBLbTNTaTJ5V2pyZkIxeFNnN1NpbUtqNDg3ZEhwbDF3ME5VNFg3Ri91TENjR0RiVEQwSW95Y3NCZzZnK3ROZkp5dzE5V3czemxiODRSM2M2TG0xdGFOZFhxQ1NYeEJ6RThoS01uMEhmakJSSkZmVTczclhNL21Ud2hSYkk0ZEtlMHcvTzlvV3ZBUjRNSGhSckhkaWhQTG5TR2RsT0dSZFRqbmt6QzRFSFBzTmlKbUovMVlUcTFKNUFCc0wwZ3pzV3JLbXN3OWJOdGoxcWJERkwwNDlmcHBGOGNJWWljZytTT1N4d1Q0SW5sU2w2SDBaWnprS2FmR0Z6djZJMDNmVkU3UkpSU3FUYWR6UlBLUWw0ODFqMHJxSU1LOUZIeE9ueDNEaVU5UkVtU0J6NHl4WTFic1BZRjBnVDNYUTdYN0s5Q09ScWIyKzY3Wmd4R3lIQVNrcVYrV2VzNjQzUDB5a2JOK3F4dGoxd0dMVStWSjVYRnNCNk9OTit0TVFMRjRVT0hYcEtFR2VzK2lkMFpqUndtcW83MS9xamllbmdmeUNoN3MzNFNnNURLamI3Q3RlZ3gxSlJ4VjhST0tiUUpVKzI1UVBxNDVsZ0N3MnB2RHBCS3B2dGF1amZyV21ta3Q5LytmbjNVK0RYbFVFd0Jtbkk3aTZOWHpaYTRxR2FtcEM5U1hhYlUwY0Y0U0lIMmlQa0wrT1FRZ0taTTB5VEFhUHFvOUxKaVc0emN6WjNoelB1dkRwcHBHdVFzamN5TkxYWUFuSVFHdlBZWHllU0g1eWxGZ0NFUFV0ZmRFOFRENGcwM1REb0UrdEtMbGhNUERSUkViSzU1bkk3RGJUNVMwei9ud2pkRmpucmdibURabkJyQzQweUpaOCtpMzZIR0NETDZtbzI1aVFMT0VDTmpIRURIRFE3UURGbTg5T3dOOEJFQ20yV3lmeGtubUpYNUdFbXNyaHFjaGJjSEZkTThGMHVZZWs5K1BHTVl2Tm8yZWZCdnhlY0llaENKYVFQZVNnTTlxOEE4VlYxcXc1NytsZTYwcUxqWkFoZ0tsT3FnWEhocDVxUmtiS25TSlZSYjMxaExSQVFoYUFZWFVwd3kvU1ozYXRkVGRuSndyQm42UmZwNFVJa1daR2pveGFXOUcvK1lMaEtaMEFzY1FSZ3hqd1c0bTduZi94Sloyc0IzdVp6RnV4bXJiTHE0VGZmVEwwUWo5SVF3V3NRcVZCbFNtenYwOWd4NTY0QlBNWjZUOEcxc2tZcnp0RWUvVzVwb2F1SkJKUWQ1U1lpbEd5eDRpSzdrU2RKb2VhaEVOT3JGaThSOFhOQzRveEluZUI1VHJia25EMStXemJucTE0dGI4dEJiS253T0Q5dEw2VXhhbW9NMWFtb1IzQkVxUmdGOTRwUjl6TVVPZVFLNDRVaSsrQW9ybHZianR6RmNHZzdOTHhwYzVKcUpUVXBnSVZXYnY2Y0hIbXlnWThscDhjN1FPL0VLREFqdEJ2c2cvNTVpWnFoMmZQZHU0SzN3Y1gwNjkzcWladmd6d3Q2ejdOSmhmaW9IdE9nNnZhYzkwb2w5N1p6YU95WGc4S3RrU1BuTlhPMnFLSXFWdWFLVlpVbGRUWFozWGs2blI4TFh3WUR3L3V5Zlg3djNaSTJJVmpZT05RZ1A1c2QyU2xkQ2ZybWRobWl4MlQwcEU3TmY2RGRpTGszZTFSYmM5aWtYa0Z4d3h0UDlUWE9Ob01ob21UeTZtbFRUTWZBdWtadnJ1L1RYNStqb0gwYTQ4UG9LZ3RKLzkyb2k4dnk4ZExNUzNIc0cwZFFuVUwrL01XZ1QyMytERys5MXFBVnJFd3JFSHhBMDA5VzI1YUlRYWZYeHlaR3MxdHhtRk5DVnpjT2ZyczJROUVOY01tVUE0a3NmUE04VWNjenFwUStEWVliTDByY1pBcXRyNVVQRGUrY2I0QldUSFd1RFV1M3ljenVWVTEyWExYbE8vNVhKcVl2cDBWTzdYU2MvZWkzbTZrdWw3cmtRT21ST1pCQUxrd1g4VUdvWUVER1ZFWWljMithSnlRbFp3ZGdzVVhEd1c3Q0p1L2Y1UEU5M1JFeXllaGJLMDRhYlJzVitUaUtaKy9IUFM1VWtJTXliWFFjRG9HNXVkQUFJRWhWTVZ1V1JUYjFpQ0hrc1MwaWVWV0ZFMjhlOEplQXZvcFlPU0c0OEppMytuK3cyRHAyTFhTOCtKOEkwZHBYNG8zbmM0MUNHODJTUmpvRUN5WHVqZUNROWR2enA5WEZzTkhXS05xeFMvNGttVVFKQ3lYN1EvWWNTQlRGcDdqZVlBTTZPcS94RDRSbkhRM2x3czhqUnZJTjlCWTEyemh0cnNHNDVGYUkwb3dVa2FQUlViRzQxV00yUkpBOXoxVEM0d2NUT3FESzU1d3NYNmtndTVLMCtMMGphbGJjajNxTG1HNm51OW5tSG45MnhsVmJ5b2ZGVzlyME5mUU92RU16dXFUT3FWcVVUb0QzbFgrUjhwOEVsUEVlbGYyeDVmaDdMa3FPWEw0MnZzQXZaalJSU0JTSE1xMmxvS1Y1aGVyL0U1M093cGlRcHYxRU1VZWJBZ3hsQlEyRFQxL2twdzZrTTBSeUZXejVQVldWaW56N01NbEd3SmY3TSt3d1lwMFJLbExTalNjY0N3cllpRDcrWmxoR1ZvVTJzV3pVMWxRTmNLZ1BCQWI0cW0xckpmckR6cURvY2FqZzA5L0ErWW1GaGRlYnJsVGV2ZUdyOG9idVM3N2wxZWFJY2Q2bWpwVDFpUkNXTS9wZjVlSERteGJaWlBOcWJuTXlndW1paDlyU1Nzd1pPc2d4Y3NrcEpRVUxiSUJKb25YYUFCM3ZlRFMyamttUnMwMUtHSERoR09vMHBLbWhPa3g3NlRGYnZSMElUdStMUi8xbUhEQVVXYzhSWXhMWWJwVnFZaFBPTGw2NVpESk40djMvc2lLM2h3eUFYYWtmbVp6cmlCSFg4ek11L3NZMFFDejlYTEloZXpNdVVDdHUzdk4xdGt2NlRjTHpTYitBem1NbDhoMTZnQi9hcWZmSXVaZEYrNU5WRjZXVW9XenNjYm9SVEVqT0l3blZhMm43akgvdGxuTTd1VUZHR1M2WlVmWlZTa3o5UlZiT040Zjk3SVFiTjhwNFpLRmRseitaZGtSLzYwcFFuaEhWMFozQlRlT2xBamhzanBpeGE4TVVFTWRQQXNyV1RKWlFKV0lRU2d6cGdMRWU1UWN1SVBoVGxTSEJKNmx1Y1I4ZCsxTHdyZ3lhT201SE9FZWE1cnVnVURiWnEveVBTWU1IMFBFSGZseDRQMi9GSlRYOUFRUlJpYXN5cHlJTjhPUERob3lKejZuMGlMb2FzSy9oY1E3bnpKM05nbFlrT05HQTRXdm51dG16YXJzQWtPa0wwWjg5T0gwK3QzMURhbmVGL3NlY2I0dnpOUWJWNUZ4Qlppa24rY3dUejRLWnJnQjJpSHBlaEwzSXhEOVNINldDdkJwamU4dTVhZVhHWWhxbDRqRTllcTY1V3J2QmJ0djZncUJkcUwyNlRjY3ZpM29tYVAzZDBjak5YbVNrZDNNbkJHMVVQSU82cm45c01xQkNUbFVWWHNEUDBCdm1GQ2VZTWFSejZaR1FIUm5zK25GbDR1TFNSaEtndzR5OUsxa3NxeFhNOEladnBFVDBKOWM0UmlrajVQMFIxbUV3VU04eTFpQUQ2SnhESEpQWllIOUVUTGZKUzNFTHBrbzd0aDgzMy9HQ0tkOFpNdEVrS3JSVzdMNUM0ai9FNjMxdzZSa2UwV1F6Y1dwdi9JWGpmWGljYlpKTW4ydVZhVk9GVGFnNkdzK1NCSEptdS9QcmxMbWxCeXk2OHRZYkIvbXhNMTlZMzVadVBFV0l5VDlxRXdtS0c5aXRWemxZcXIwNWdlQzNXZDIrbHMrVFB4Mi9DeHZkcm5FVXJ0dW9rZ0hhem5pVi9McGtLVytSYjBDcWlhRExCZG1vVHJ6b3lKdE1WeUI3RER6b0w0WlhHZnhWV2ZnZVVNVkZ5OFVGNEFqOU9RR3ZvaWFGd2o0M01xNnNzWk8wQUlvSURDdU1uTlFQYjlHaFY2QkNHTDNyd1dMYjc3Nko0Tjd5TEVEL0sxUnRudWwxU2N6dUFkcWVlV2VVbGRsU3d1SC9BZGFsb2w0N05Jc2dzN0psVWQ1a0ZraWJmSFdac25FMzYwcTNZR0Erb0RjL2JySGNIOFMxQ1JRbFU4eGtQVFR2a2RGWVlPOUdqUVhncVpHeXV4dkxaUWJ2WmQ0RlhMQ04rMGFSbWpPa3FxZC8vaFdZekRmWHdhVkNacDVjN0hUZzdERjluQWNheXY5ZXNqLzQwby8vTmlzUXhMdzBibVkxb1o0R2tMVXFMcWFwUDZ0TzRMM1ordktXdDdZQXQraWZyaXVxQ0ExNTdVWUp0Y0RHU1padzdHOS9WNnVwMFp4ZlFaNVM2UmlsYkwrYVRRTnhrS1JoRjM3Ukw4cjNTekdHYjcxdlpmd25aTUpqem9CUmJmQ0xqQnpFR0NmcFZKOVNFN2pGYVBqMGRtVTZFSEVycTFocjgzM0E2QlpYSTRmSDdmczBnYSszY2o5dHZoK3RLa1ErRWlvOGdGQ3RvbEV2eHlKQ0k1MXJlaUtoalFWREtIWWtuZFFUMmIyTlhsQmtqWGY5RW03K1pUalJncGRZUWwxQXhnN01yNnVBdithd09ZcDg0ZTZOUjRVeFRFMmJSY3B2SzJueHJNWWxydDFXK3NPd1U3WXZ0ZHBWcUZaanhIYXdZcFdLY2VzVjlZY1BHNGdob3laUWtJZXlMc2FjMEFsWDIyaWNaZ3R2SURjcGVncG1nTXY0OTZYb3pKTG80SW1qdjBzazNldFBSdWo2WDZhU2p2K0d2d09lVGJWaUFuZXVFVVlQbk1TZFNYRzFKRVFBQVJqQ0dZeXdpY3hlOEN6MWNuUENtUzE0ZmFwdjBrQTlybnI1Sk1EdE43THF4NkFGM2Q2ZGNCYVFKLzlRRHBJanpHZ1QyaWlXcWJ6OUpKQTVtQXJmemdlbHJQY1JwQ084TGhjeHZjSDRuRmdELy94bE1EQ1ZzNHRLZ3V1VVVWbWRBQlprbUZTTUdvTXlzZ2QvOTI3cCtVVGRSK2l1bmkzRTBkcXIwdHZIWG9NYmw4c3dweTUrZ0ZUZGpvT0FnOXRLUGZOTGdYYjR6Vzl4RlJTck5pM3ozc1BZZ2xwMlRHbzl0T1B1bEtHNzFhN1JLYjBQakxubUFuWHlxUEV3M0FRRThuUms2MEZpRFFPb3ZNVExTaFByS1ZjYVRpRldDZ1c5TWx5OVJtbXYyaVlZay9lZm5OejZsNCt6U01ST2Z4WXNUVU8zbUh4U3RrUXhaZ29pRThXTXp4dmo4eWFISzVybXJjcjZwck82dUg0b1krSTZINVMwdXdySitabmRNa25JYm9pS201N3Z3blIxaVRzWkZ5bXQwQURUa0tSUWNBeXd5bEVtYVFkS20rVFh3TnNBS3d6V1NGbHBBQTk3aWh3ODhWM3lhU3hGT29YLzRncWtxUWxSZW9NOUliZm9RaFliRkdSdDFVT2V5VjI5azM3WitCaXh0VXNtZnhEZDd5bTJDSEg3a2c0R254R0E4Ri83Q0hUcFZ6aDNjNlpoM2pRRWJIMnl0cmhtRm9BalMvbkV1ek1Ia2xyQnhkUGhhSm5YNXVWSDdvNEVQdUpCMEpYSU1MN3ptTkdZVjE2Q3RnY1hlekdPdXdDUFIvdTBNYkN0UVhKdWwwSmVJSjY0cW93YURHZ1dFbUc1UldNalNlQWsvRkVFTjVDaHdMMFk1dC9FaGhHU3AxVWJYK0MxQzhFbFM1ZzhFZDJRMG9keFlaM2lMb3pkQmd0MUNqaDFvUE4wUGdrZ040bXVZckl4ZDhHOXc0YWpjU2FGZmRvSzBIaDlmSmFHa2JpSncwUnRxNDQxQ1ordmFBR0daU0Q1bjRyUW42UWRzSTJUVGlEZnBrOE5pMVhZV05mdVlHRElFWEdaRWtUNzNLYmhMRVFxc1dGYXlYbWtWaUY3QVgzdkwyNEJ5TGRRN0dGZmFVbXN6eFR6OEx5YjB4YU05Nmd0UkR1ZElpckwrNWRlY3l2MnUydVM1NFFBNlFSdVA4a29QbjJpaW04QUVSK1ppcmMzWnliNWVXRXgvTDZxbVcwNTRqS0IxZGM0Y1hxTjFxSittTVgzZURrV2M0cDFZdzhWVC9lMEJRR1grVW1EM3UwNUE5Y0JwRHM5Ym4zY1hsSE1UckpQV1dzZUswODhrYUh2WXNGVzk5ck00QlorVzF3ZHlJWHhSYjY2cXQ0ZzZhd2FCSGpEc1BtNmdmMFNEUmN1MnhaakVVNWxQa2tsZUp3M3RWVEpFKzFFdmNIbTl0S2s1ZEJTMmlKd3Yyc2Z4RGhhMXEvNU01M1RYWU5uVEt6SzFiOThPb2duYVZFK0NLVGFtaTlVOVBhelk5WityS25ZMEt4OXhvZnRXZGxQMndNeiIKfQ=="
}
}
}
}
where action_result is base64 encoded string that contains JSON action result object provided by the client app SDK:
Response
{
"details": {
"threeds2.fingerprint": "eyJ0aHJlZURTQ29tcEluZCI6ICJZIn0="
},
"paymentData": "Ab02b4c0!BQABAgBTSQbui72ia/Pt2/BvrETplEE7eEu8bY0G45qYfIyNmOscC/SGzORhsz6FL2eSszivxLP7uslEuukL1DFMe+bxFyHNUIAJ4bzYdK1pHgZZLJwCWSdVMw6YFwAynvPIXEc3iTJRdwKJCqV4ulinN6WROZoqWCp1sKN4xyb0msW3HABSbYM/DfKev65BsSLpv66QQ00dwrOESDvdJO3KyvyZHOyw3q9U5CE+pkfWBI/vnwZ0/Sr6TiK2OLWb+NizIt9QOFJcbQMBpUruJhERX6ii6HH1GWVI88JE5kUjHlPbLbmmNxH3NpHC7DmWy3D5iHUpw7/74yTONHEh79H5Pm6PTy6M53Ab98k1AXXavpj6VDanq2xVNhWTXT31EKLhAHrfHMudUkk9C5Po2j3f9tQvZXnuV9M7k9E885lGL06GnowlxgYO10qxir5J+/Il2lzXgL0se4sR2c6E7JvloMyH/fy/XQuyUzgeV2SL6wrqILjzPIQT1zMeYm7fRd3L6Gee5m1gmON93H4Oj93aE/VLJYedAXHFLleS81eGqMORG5jDoaRBQDFB7c8v4LOthuV9J2t/MKuI8rLAwelYdGyWeRj4E3P7uRqxWTUSxFSBQJLghlz8UmWuuys7gKFN+reVvZwFGJsf/ZO/WPqs62vfpwytemY1z+uyX6wNjzlPOxBQc7cL6bcm1r2NXX+gI49QAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifWFs4xMR5AdJtkVefMtdHpuUhlvkMVCPt+zD9hcopMj13am52dXRlwm0G03zzzpVtBWPfgQRzXBAbf4ulqwMfUvYd3JdjuOniF8HDmvLSjWSBZexF8M8EXG0c35rel52Y0VhIbn09cS6YX3D+pX4qlJ5j3GW7dwTeMaUT+wG3Bre380Jib5Ds8g5bUlKjpio34ifQ8CGj0fiRZvXcnk9NgabEmFqBeWTTjLNbnFaV32/9evCCqPLXVGUZ4f6l2Fyc+tAQl3FqP9RxJetVF+kHg9my8ViVc+UjiLB9QTZLVdc9XrcAlQBAC1Z2S0SNz3jdx7KdPNigSJsIGiyIjwbpKm3Si2yWjrfB1xSg7SimKj487dHpl1w0NU4X7F/uLCcGDbTD0IoycsBg6g+tNfJyw19Ww3zlb84R3c6Lm1taNdXqCSXxBzE8hKMn0HfjBRJFfU73rXM/mTwhRbI4dKe0w/O9oWvAR4MHhRrHdihPLnSGdlOGRdTjnkzC4EHPsNiJmJ/1YTq1J5ABsL0gzsWrKmsw9bNtj1qbDFL049fppF8cIYicg+SOSxwT4InlSl6H0ZZzkKafGFzv6I03fVE7RJRSqTadzRPKQl481j0rqIMK9FHxOnx3DiU9REmSBz4yxY1bsPYF0gT3XQ7X7K9CORqb2+67ZgxGyHASkqV+Wes643P0ykbN+qxtj1wGLU+VJ5XFsB6ONN+tMQLF4UOHXpKEGes+id0ZjRwmqo71/qjiengfyCh7s34Sg5DKjb7Ctegx1JRxV8ROKbQJU+25QPq45lgCw2pvDpBKpvtaujfrWmmkt9/+fn3U+DXlUEwBmnI7i6NXzZa4qGampC9SXabU0cF4SIH2iPkL+OQQgKZM0yTAaPqo9LJiW4zczZ3hzPuvDpppGuQsjcyNLXYAnIQGvPYXyeSH5ylFgCEPUtfdE8TD4g03TDoE+tKLlhMPDRREbK55nI7DbT5S0z/nwjdFjnrgbmDZnBrC40yJZ8+i36HGCDL6mo25iQLOECNjHEDHDQ7QDFm89OwN8BECm2WyfxknmJX5GEmsrhqchbcHFdM8F0uYek9+PGMYvNo2efBvxecIehCJaQPeSgM9q8A8VV1qw57+le60qLjZAhgKlOqgXHhp5qRkbKnSJVRb31hLRAQhaAYXUpwy/SZ3atdTdnJwrBn6Rfp4UIkWZGjoxaW9G/+YLhKZ0AscQRgxjwW4m7nf/xJZ2sB3uZzFuxmrbLq4TffTL0Qj9IQwWsQqVBlSmzv09gx564BPMZ6T8G1skYrztEe/W5poauJBJQd5SYilGyx4iK7kSdJoeahENOrFi8R8XNC4oxIneB5TrbknD1+Wzbnq14tb8tBbKnwOD9tL6UxamoM1amoR3BEqRgF94pR9zMUOeQK44Ui++AorlvbjtzFcGg7NLxpc5JqJTUpgIVWbv6cHHmygY8lp8c7QO/EKDAjtBvsg/55iZqh2fPdu4K3wcX0693qiZvgzwt6z7NJhfioHtOg6vac90ol97ZzaOyXg8KtkSPnNXO2qKIqVuaKVZUldTXZ3Xk6nR8LXwYDw/uyfX7v3ZI2IVjYONQgP5sd2SldCfrmdhmix2T0pE7Nf6DdiLk3e1Rbc9ikXkFxwxtP9TXONoMhomTy6mlTTMfAukZvru/TX5+joH0a48PoKgtJ/92oi8vy8dLMS3HsG0dQnUL+/MWgT23+DG+91qAVrEwrEHxA009W25aIQafXxyZGs1txmFNCVzcOfrs2Q9ENcMmUA4ksfPM8UcczqpQ+DYYbL0rcZAqtr5UPDe+cb4BWTHWuDUu3yczuVU12XLXlO/5XJqYvp0VO7XSc/ei3m6kul7rkQOmROZBALkwX8UGoYEDGVEYic2+aJyQlZwdgsUXDwW7CJu/f5PE93REyyehbK04abRsV+TiKZ+/HPS5UkIMybXQcDoG5udAAIEhVMVuWRTb1iCHksS0ieVWFE28e8JeAvopYOSG48Ji3+n+w2Dp2LXS8+J8I0dpX4o3nc41CG82SRjoECyXujeCQ9dvzp9XFsNHWKNqxS/4kmUQJCyX7Q/YcSBTFp7jeYAM6Oq/xD4RnHQ3lws8jRvIN9BY12zhtrsG45FaI0owUkaPRUbG41WM2RJA9z1TC4wcTOqDK55wsX6kgu5K0+L0jalbcj3qLmG6nu9nmHn92xlVbyofFW9r0NfQOvEMzuqTOqVqUToD3lX+R8p8ElPEelf2x5fh7LkqOXL42vsAvZjRRSBSHMq2loKV5her/E53OwpiQpv1EMUebAgxlBQ2DT1/kpw6kM0RyFWz5PVWVinz7MMlGwJf7M+wwYp0RKlLSjSccCwrYiD7+ZlhGVoU2sWzU1lQNcKgPBAb4qm1rJfrDzqDocajg09/A+YmFhdebrlTeveGr8obuS77l1eaIcd6mjpT1iRCWM/pf5eHDmxbZZPNqbnMygumih9rSSswZOsgxcskpJQULbIBJonXaAB3veDS2jkmRs01KGHDhGOo0pKmhOkx76TFbvR0ITu+LR/1mHDAUWc8RYxLYbpVqYhPOLl65ZDJN4v3/siK3hwyAXakfmZzriBHX8zMu/sY0QCz9XLIhezMuUCtu3vN1tkv6TcLzSb+AzmMl8h16gB/aqffIuZdF+5NVF6WUoWzscboRTEjOIwnVa2n7jH/tlnM7uUFGGS6ZUfZVSkz9RVbON4f97IQbN8p4ZKFdlz+ZdkR/60pQnhHV0Z3BTeOlAjhsjpixa8MUEMdPAsrWTJZQJWIQSgzpgLEe5QcuIPhTlSHBJ6lucR8d+1LwrgyaOm5HOEea5rugUDbZq/yPSYMH0PEHflx4P2/FJTX9AQRRiasypyIN8OPDhoyJz6n0iLoasK/hcQ7nzJ3NglYkONGA4WvnutmzarsAkOkL0Z89OH0+t31DaneF/secb4vzNQbV5FxBZikn+cwTz4KZrgB2iHpehL3IxD9SH6WCvBpje8u5aeXGYhql4jE9eq65WrvBbtv6gqBdqL26Tccvi3omaP3d0cjNXmSkd3MnBG1UPIO6rn9sMqBCTlUVXsDP0BvmFCeYMaRz6ZGQHRns+nFl4uLSRhKgw4y9K1ksqxXM8IZvpET0J9c4Rikj5P0R1mEwUM8y1iAD6JxDHJPZYH9ETLfJS3ELpko7th833/GCKd8ZMtEkKrRW7L5C4j/E631w6Rke0WQzcWpv/IXjfXicbZJMn2uVaVOFTag6Gs+SBHJmu/PrlLmlByy68tYbB/mxM19Y35ZuPEWIyT9qEwmKG9itVzlYqr05geC3Wd2+ls+TPx2/CxvdrnEUrtuokgHazniV/LpkKW+Rb0CqiaDLBdmoTrzoyJtMVyB7DDzoL4ZXGfxVWfgeUMVFy8UF4Aj9OQGvoiaFwj43Mq6ssZO0AIoIDCuMnNQPb9GhV6BCGL3rwWLb776J4N7yLED/K1Rtnul1SczuAdqeeWeUldlSwuH/Adalol47NIsgs7JlUd5kFkibfHWZsnE360q3YGA+oDc/brHcH8S1CRQlU8xkPTTvkdFYYO9GjQXgqZGyuxvLZQbvZd4FXLCN+0aRmjOkqqd//hWYzDfXwaVCZp5c7HTg7DF9nAcayv9esj/40o//NisQxLw0bmY1oZ4GkLUqLqapP6tO4L3Z+vKWt7YAt+ifriuqCA157UYJtcDGSZZw7G9/V6up0ZxfQZ5S6RilbL+aTQNxkKRhF37RL8r3SzGGb71vZfwnZMJjzoBRbfCLjBzEGCfpVJ9SE7jFaPj0dmU6EHErq1hr833A6BZXI4fH7fs0ga+3cj9tvh+tKkQ+Eio8gFCtolEvxyJCI51reiKhjQVDKHYkndQT2b2NXlBkjXf9Em7+ZTjRgpdYQl1Axg7Mr6uAv+awOYp84e6NR4UxTE2bRcpvK2nxrMYlrt1W+sOwU7YvtdpVqFZjxHawYpWKcesV9YcPG4ghoyZQkIeyLsac0AlX22icZgtvIDcpegpmgMv496XozJLo4Imjv0sk3etPRuj6X6aSjv+GvwOeTbViAneuEUYPnMSdSXG1JEQAARjCGYywicxe8Cz1cnPCmS14fapv0kA9rnr5JMDtN7Lqx6AF3d6dcBaQJ/9QDpIjzGgT2iiWqbz9JJA5mArfzgelrPcRpCO8LhcxvcH4nFgD//xlMDCVs4tKguuUUVmdABZkmFSMGoMysgd/927p+UTdR+iuni3E0dqr0tvHXoMbl8swpy5+gFTdjoOAg9tKPfNLgXb4zW9xFRSrNi3z3sPYglp2TGo9tOPulKG71a7RKb0PjLnmAnXyqPEw3AQE8nRk60FiDQOovMTLShPrKVcaTiFWCgW9Mly9Rmmv2iYYk/efnNz6l4+zSMROfxYsTUO3mHxStkQxZgoiE8WMzxvj8yaHK5rmrcr6prO6uH4oY+I6H5S0uwrJ+ZndMknIboiKm57vwnR1iTsZFymt0ADTkKRQcAywylEmaQdKm+TXwNsAKwzWSFlpAA97ihw88V3yaSxFOoX/4gqkqQlReoM9IbfoQhYbFGRt1UOeyV29k37Z+BixtUsmfxDd7ym2CHH7kg4GnxGA8F/7CHTpVzh3c6Zh3jQEbH2ytrhmFoAjS/nEuzMHklrBxdPhaJnX5uVH7o4EPuJB0JXIML7zmNGYV16CtgcXezGOuwCPR/u0MbCtQXJul0JeIJ64qowaDGgWEmG5RWMjSeAk/FEEN5ChwL0Y5t/EhhGSp1UbX+C1C8ElS5g8Ed2Q0odxYZ3iLozdBgt1Cjh1oPN0PgkgN4muYrIxd8G9w4ajcSaFfdoK0Hh9fJaGkbiJw0Rtq441CZ+vaAGGZSD5n4rQn6QdsI2TTiDfpk8Ni1XYWNfuYGDIEXGZEkT73KbhLEQqsWFayXmkViF7AX3vL24ByLdQ7GFfaUmszxTz8Lyb0xaM96gtRDudIirL+5decyv2u2uS54QA6QRuP8koPn2iim8AER+Zirc3Zyb5eWEx/L6qmW054jKB1dc4cXqN1qJ+mMX3eDkWc4p1Yw8VT/e0BQGX+UmD3u05A9cBpDs9bn3cXlHMTrJPWWseK088kaHvYsFW99rM4BZ+W1wdyIXxRb66qt4g6awaBHjDsPm6gf0SDRcu2xZjEU5lPkkleJw3tVTJE+1EvcHm9tKk5dBS2iJwv2sfxDha1q/5M53TXYNnTKzK1b98OognaVE+CKTami9U9PazY9Z+rKnY0Kx9xoftWdlP2wMz"
}
- MENU backend submits action result details and paymentData along with threeDSAuthenticationOnly: true to the Adyen API POST /paymentDetails endpoint. If the processor and 3DS flow decide that submitted device fingerprint data is enough for successful authentication, Adyen API responds with resultCode AuthenticationFinished and no action data. This is so called 3DS frictionless flow with no additional user interaction. MENU backend responds with additional_info.approval_url and additional_info.approval_action set to null which allows client app to go to the order create step:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"additional_info": {
"approval_url": null,
"approval_action": null,
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
Otherwise, transaction resultCode ChallengeShopper and presence of action object in /paymentDetails response from Adyen API indicates that one more additional authentication step (i.e. the challenge) is needed. This is so called 3DS challenge flow and implies some form of user interaction, e.g. entering username and password, fingerprint recognition, etc. In this case, MENU backend responds to the client app with the new action data in the additional_info.approval_action object:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"additional_info": {
"approval_url": null,
"approval_action": "ewogICJwYXltZW50RGF0YSI6ICJBYjAyYjRjMCFCUUFCQWdBWDFaTXZrNHNNYTVGWWJ6RHhjMittb1Q0Y080SVVzRTNjT1dnVy9WSkY2TytDcVVrbjJCTC9aVGZ0TmFEYlZDSStVaEplNFNpUlRqZ1VWQXNFaW5UK1UzcW9leU5nazcyZ0U4a0UvMXgwRm4rTkE2SkdvRXpwSHlTaVJlK2JKTU9mU1dnZGlxTGE2S3ZxU0FPUks2SFVQZkN3Mmw4ajZYdnpoV2xPWWtMVFFCSjdOenhpZ1hvY213cHBJWEdJV2xxT3BqWmNmMzdRY1JwWDlVenBGWFZWa0FlVm5FelhwRVBlaXM4dldRZGpkelpQUFAzQUI2NkFRRXJGWGtBL21nSGwxNjdzNUFpK3dzLy9oUkJ0Qk5mdS9SeTd2NUNva0JaNkxkbGtzVkk4Lzg4WURYZzBYMmduNXcrRXNNWjJlTkhRNHRhS3QrQ0p5MkErbTVTcm5uM1pzNGVZdzU3Z0w0VW1mdS9qV2hBK3lJeFVQN2dCUU5qdEQrb21yV2s1T2YzaSsxdzhpSWpQNmd5RDFZL2FyS2NsOTZDZkpna25NL0NxM1pNUTU1YXlESXc4NzNLa3ZpQ3FjMVVadnJxb0pqOGFuc2cvYWhYaCtNLzZNQU1oa3FQL3pzWW5xYVhyb09Ib0czVTVhV0Y3eE9tSG1hcGFuNXFxMHlQci9TcDgzOXJhdlNKRnZNckprT0VpYXVXMUpCL0VMVmEwODBZZnNLNGFjVXdwT25JM1VBV0hXUi9MTnd5WmpLNVJYUTErZnFnczIrREdtSDN3ZHhzNTdBQUJsYzhpUlNuVUpXeGVpRGwvUSt3WlZOSVJJbmxmek1YUm5kQ05CdS9EMThtTEs1c2h3VEJzWlFpRVIveHFiMWcwTGR0RmNkZm8zWUJERGNBdm1hWGRrTXJIbXhDZjJEZ28wT1BSaThYOHRoYVhtUCtHQUVwN0ltdGxlU0k2SWtGR01FRkJRVEV3TTBOQk5UTTNSVUZGUkRnM1F6STBSRVExTXprd09VSTRNRUUzT0VFNU1qTkZNemd5TTBRMk9FUkJRME01TkVJNVJrWTRNekExUkVNaWZSaHpTNm8xMnRVTG5WTFBsVS9YNHN2YnAyTW5aZ1oxejN2WnNGTjJKbFdzclV0eStST0E4Rk16L294N1NpSXAvdDEvTnZ5R0VCZWlIb2l6REhPdVdOS1ZaZWxGREh4R2FBcGM1NldjMkR0SEdUSWVFd2VlT3o5UzZXbEZPRUxYdk55eFJnMTJyNC9SWVRzUVNYUDMzM2FqWDQycE5uTm9qSDljZENLay90d2JxQnZWUWxYZlVVanBpeWNTSXU1dUxVbXlXSE9xVWNEcVQ4THhZUSs3VTBNUU43RnlJbXAyeGhCUzZGd3h1NGc1cWhucnllc09JMExzMmc3bmgxSUYrVHpKemRlL0hxejZrck9HeFNiTGZlYjF4R2FMaUFCTnNxR3JTUWI2RTJuTDEzcXVCd2ZFUVdNVkFIREZiSEszNGlDUi9SL3hnbk5xOWhpNTZENHJOWXRKYWZOZlZRUUZYRXJCYUlFa25JVVg2eGhXWm01WDhvQVExTDZPQTdqRXZtOEF4czc3NmNZanpiUklic0JUbTFCREdnR3QzeGVKTU9IN3NNUUx2OWw0MjFtSWMwenBCY1hrWGFHd3RIWjVjMUxDUmFXVVUralhmTE9EeWxXNlZXTnFQdmczTzV3eGx3UmZQbDBhMWludTJoRTJvVmt2MmJZRTNpcHVoMk5wUkVwVzdicVdEamRuYkFoUGE3SnVDNGRua2JXZDJjR251QTZaWnpCVS9BaU9WWW1RVURVSXVjMzlHQmxEdythQ3dNV2MvRE9ENjUvMnp3NHJMTlJOemZpQmZrbWdwMGd5THcrVEQ4SmRDNW1sdFBtUDltNUNxbkNHRzZheXBheGhRYmY3WDRwWXVHSmx6NURlSzg1WFZjaTcvbzBXUXZreWQ3YXJDM2ZldmZOZGhURkRaVUVtVUNwWTBEeVJxZ1pXYVhIbnpSV3pqd3dDMmd4czhEZ2FjM29rcmYrSjFROUg4Y3NLdGxQT0xpVE5oaEs0dWUwY0hZaThiNlpsaTBiK25rdzRGU05lUkwxSUlrZldNbm9jS1h6dTVBbFFsNGRkSk02VEN4WVBaUGQ4SnBuM2U4MldabDZVVmlKTUJKTlBodDA0VWNxeTZueW5zL0sxb3lkUlcxVjNvUU1zSlh6cGVQaGZLSUlHK0tnQ0loYnZnLzNET1NSOGRqd1I1UzcvdDl3a1R0KzMzY3FTanNGRHN4VG9xN25YVHViZVZGMjlrYmVra2tHS3JlVDFDbnBvc0VKclRLTXltTU1NZ3Z4SlVicHg2MkhoS2cwRUMxMHluZmlGUnJObUtHTWFEOGZiSWYrTWg3U2dZVFEyQitYakU4UjI0RVVuODBjMG5FeEVaNURuOXZBM2RQV2JyM1lRb0ZMYVgxSnlLc3NsMWZBRUsvYWNxaHFLVnZka1BSNzhCR1Z1Q29Ha0JlekNsSnJMbEJwR21xQnlzQ0N1R1Y3emFGSkVZcXI0K3BXekt5TVI1TlJVRUlWc05uNlBWU3Jzdk1pdDZvcGtodDhpV3dkM29oWlhZQlMvZDJhMEJacElvelc2S3JXOXdSR0xVU3hRTTN2U0hoN3lBY2NRSEg2Q0RkL1lkMUJ1eHZBaGplY0M1Q202NjVMVDBGM0tDWU9IK3VJL2J1Ri9PMjJPTG1QU3hEdmdybWcvQzlwSnJxZDFsN2J3NE9tbFV0dGlvTm9WazZZZWYraDF3ODd4VElUeURlRFFrd01FM3lKV1U1YXV0a1ArZEtDOUN6ckd5MjM3L285SmZjU1c1VFRqT1A3QU95QUlsUFFUWWo5SW5QRnhtUHhYUDYxODlNYlplTW1ML0FtY0M2Sm4zSjRhNkJTeTljSkd0T1ZXalppTVRZa2tadkM3ZVJrREZRT2psNFZQNUxuVUp0eCtnVUQyWUNxYllYZnh0UmVBZUZ2Q1FIdlQ5bzZQeVJvU2w0cXIwU0NIWndMVmxjOWJQMzdjU0JaYnFMUEcwTU1LT0s1M1FDWElGbUduelJ6TkxPNHkxNlQrenNRM0VSb2ZKMGNML3FHK0pTZHFiZXUxcGF0MEg0U0NxcFdaNXpVR2F0QzY4N1h3UlVhWGZuWGRlNkthUlRhZFVaTXhTbHVuT21nWTRyTThabDk4TTZsa1J0SWl4Vk5aWDVWeVRGS1luZ3JPQ2pvazgwajVlVHkrRGtLS3NGdTNtVVh2OHgxOTlKcVZodFQybUh5NFdnU3lYQmtxS012dWVvYkM2ODZtbmZ5Z2xZNWl6WFNnWjNCV2RuRXJWMStiQkhQSjgvWTB2cGhmcGRsTk1IeEpTa3RLR1VEdG1WRTRrT2pzay9KMGNyVnZSb1RjalZhc2hGTnNzTmVaK1RFWVI5NHRCY2FhU0N1SSs0SlN0SmQ5eERPMWhZdnNlSk1aOGgvVjRvMDBaUnUxQ3hZaHpvRERFNmJDSkV0cnA2TFE1Q3ZZTTJHOXRlU0JDNjRvZC9GdXFML3pLY0FORG0vS3JjdnJxb3ErTUc3Uzh1azNZSFYwc29wZmIxdUJrNkVVTDFRYUNEOUlrTTBMTC9YUmJEK0RTTjhRSno4bTlhOW5WUTRLYjJTUUhIa21GbTlodDc4T2JoazA0OTRSYVB4ME04NEZ0OCtOYW9JVkc4eUVkZXd6MnluZlN5L01yUmp5OEo3YXlUSkdNUDFQYklqdnEyM1lJNUJNVEJSUzdhZG5YVzc3MWd3R3ZGbGlNREhmRVNrNmNiUitxMHhiWDlKdEhUUmdGUFJnZkx0dzFhNUNuVmhzeWdRbytETkFiQUZQWEl0SEdENjQzNnJUazRFMy9LeHEyQzJQeGZaVGxBUC90VzV6QjRBaXM0NEI3VTMyTzRIQU1Bek52bjZ5aEx2cTdOMEg1ckg1azFIalp4Z3J2RkRFcWNIWlZ0ckhXKytCcVpNdTJOQmRiWVBkaWEyUFlMSnVpamo4RC96NUFrSUx1Ujc1cHBqMjVCZ1hwWWV1UUNWYzhjcFFiZE95eVV1aVIrL09XdXBnNm1MRHRjUVJMMDVjbGx4emlWTGZIZ3hYMjVCcmdBQm1aVzJ2SjA3L2FGaGtEV0phMk81aGxBRG5wbWZsd21QZysrOUZvTTFIWXkzcG52VkVkeXFIR1lrYkk1K3ZxenZ0aXF3akdUMnFrbHRkS3VweUJiallxd0FWQnNjNEFBQ2o0UXZ1Y0J1aFRMODJqelM3bXpVUTFqOHI0dUl2YytwUU9PaGtuWVlVbXhyejZENlUzNmVvVkhyWlVjcTE0a0s2UFAxdmdlYWhPd0RwNnNrVi9LRldKekZybXZHT2dTQUx4VmRPR0E5WkxVUlQ0bUlCRVFCNUNQR3R1bFU4L0kzMGF3L3N1NUJXaWcrWThCb3VadXlrQ3BOdlU3RXNqWUZhc2lScmhyWmtQUmZaQ3Zwc0lyRnlxYnhSZmhWQk8vR0FlWHJCWW9SeUJSTnZsNk1BUEdnSWhnLzdUSm53U01XdVk5MVBOZTkrbjV1UktENUdRTHd5OGhsTklQT080VzJyQzd1MmY1RWs1eTNEd1FXQ3J0UU5LWFFBM3BTYzN4SlhwdUlBNXYxK21uekErN0RrandUbStLQ2M3R2wyZjVoSFpma0w1N3hmd1AyWnRVVHk3M2tNci9semt5eml2WGJlTzJXWm5IVkF6V2tvNEhkNDBRVWV6TVE2cmprSWlnMTVxdk5PV3FnZ0huWW4zcmZ2VnNVaWRGTnRVZm9GWTlvVU9sRFYwZTVwMGJRRTJqaE9kMlFzSExQUnJLMHdEczhSVXNWc3poUUZ2RCtBbzZ0Vjl5dXNMV045bCtsZWthL2JZdVhkNmZCMmFBVlYvWm8xNmtPbjloY1RELzZJMWpPcERVL0tmeG1oQmY2VzltdXBqT1lWSXBzN2NaZ1Uwa3BiTjJ0NUtuZGZGdk5lQXJxREswODl0WUlINGdGaW1mYk42UHFkSVQxWlRPT2VyRXpuZ1JVTWcyWEdscS9MUTl6LzlsVVFIbWhzQWJ2NHZuWk40VUozWEJEYnExRFplR2cwOW9VTXZGSWhpR25weDN4MkZEb002bnlWWHJUeHg3Z2NtUnNRK3V0ZHYyUW9sTkl1MUtTVU0yRno1RlJFdnFla2NLb0FRYWZPcURLT2h0K29oSHJUTGp2SW4zeEZ2SzdvOTNoR0E1dm9BMzhPQnVxOFRYL0p5Z2xHS3BPRUFzem5abmxRdWdwZTRxa2llbWxWS1Raci96WWl2OXpRRGd0ekw2UURtUWYvWXE3QUVJakM4TzlhODBpUmM1a3B4U241TnczcFNXbUVMeEZCMDBJNHVMRnJHeVUyWUZaTmVKb25ZakoyVkV5NG1sNWpuRHhSTGNCbldrTXBQY3kzZmMxak50L1NOb3F1bWxWeEJVUksra0R6ZUVZd25qZ3ZqNndzN3Y1N0s0SWwvYzgvOVRvazBQd0R1aEgzTEV0NUtCTmtrOThZVmRPdnV5dFBya2xvL1FsRUhtL3ExZHZ5bHlzeXo3U0VPLzdlT05EQWxoUUNLV3VsNEJZbkVFYTVPaXBnQWZnYk5Qc3dKR3lIRHZMTldiUFJCd2UyODBIV2hlcWlGWWVsRWg3TmdFaW1scUNEVk5HcXNIOGdxajlQaXh2ZTZ5V3d5bW95VU9FZE51S0JITjcrMUt1ZjA0a3lSS05iaXdjVHZWc29wQmgyZzB5eFVGdkRobTNCU3RZMVc2VVhvRUloWk83N0xOSitkVEZDcXZELzRrUGpkS3hpZklqaG5reTBqTWNvWUZ1dkJ4OWZqaVFGWHJXdEdQOGt4OTBndzZ0a0hqbTNvWmZpUkN5YVY0WWM4TDI5dUN6WXhQOGI3aENFRE5aUUZUNWkyRjYvVXNnT0d3cVdZbUNJcWxCdUMyekZ0dTY4ckZYbFVTTlVZNThFY2ZtWEhsTXcvT1NsUnNvQVlFWXVOVXRDQVU3WVMzczdkeUF2eWdXalE1bjNmQXVDV3diN1pYMjR6SXd2UGlpeUVyYlhXUE10M2ZqK0Z6dUUzZlRKWDZIQnUrVnJMTmFhVDBGdThNYWdTRWhmWUV4VTFwZUNZSVJCeXJXR0Yzb1pSMVdWaVY2ZTUwd3JDRUVtWnJPczlTclBvZXVDRk15S2ZkOEJ5V1ZBWnBmSFAyVVA4TzRydU43RVB0Wnh4T0hKQ3lsMnZTdm5rQm1FM0UzUXZaVWJHN2ZFOWhMUXZma0srRzRNWXJ2L0M5L2VFYSt2TVg0Q0d6c1VGWnRicmQxbTlRU2FuNk40SXc5N2hBK3l5ZndLajJlWlpNdnZFQnVvYU1BRzFRRkh5ekNlSm5Wc2V2OXNBK2YvSGdMZVpiRUtoTXIvRUpERkVMenBBRTVMWFRvSEViVlNzb2J2dk8xTE5sVnozSUFlVG0yN0hLY1g5dXNONmlFanVpT3RFSzh3NVVlRUJoc3ExR05qTGV5V1lxTUZwaGhUQWRKZVNxNFBZV2JYeDM4WUYvMi9UZlBCOXZ1UGcvWU5tcW1QRG9oa056cktLRU1lM0Z3NEpnVWhXY0dpa2w5YUhPd2IwZ1ZEa2k2TlhZSXZ0MTdHdVJJc0JUS2VseDJkMlBFZkMvbGRuRHpPRnZzZklmM3FQM2NLZUcvV0Q0YlhUMGVwcm9lY2ZEWVRqTHErbUdlRHg3ZkJIZUdkNmVnY05FNmg1ZE9KdHRLU2tMcGxTN05TNzlPalgvYndib1EzaEdvYXR5QTdXQk1uMlFmVFEyWTNZL3EzRGxldWdhU3BhSEpHMzJYek1jQzR4U2lKM2UxeTQzSWxFN1hmLzFBQTlXRE1Na2ltRlJWMzErcFVxY1NqUHczQUt3VjA5MWJPLzA2c2xOdnhKVVhGQVlvTlpYTGM1RGJmL2FQWVFGQytkS2NkenJ4ZTJRZnl3dVZ3VHlpem53OUVzL0dyRHNPM1ZnZWxhOCt6T3VmVXB5NERJOXhFK3lnazVvVkpDV1U1dk1uUmU1c3gzZXJ6dmNKMTduajZKMng5bTdpVFhoTzBnS3QvUURpTjcwUEI3UVcrQU83aVRmN1lPYk83Q3JpcGlveTZRa2ZhNnhZUFNkSGxvZnVsODExZy9QeGNGeUJSUk5TdnJJMWk4Z09MV3A4a0JqeFZvWk1QQk41R1V4TnhYM2NoQ25iTGxXcHVkdlJyWUhsZDltQ0ZxOFNIeGM5RTZNcHp0L0ZPWGVUanUxYmgyaGRhVFBMMTRucDl4WjdpU0kxSmlhaU10MUZVNW9uQk5ucW84RHVJMVlla2FKa2N2ajVGT2RuKzQxMHYyK29pRTQyeHgrQlpNaXUrVXRFVzBrYVNjRFpEUy9CbFpDMjZ5NC9MSmI1bW9tMWJkc0dab0RqR0Q2Lzhhemp2SkdjbWZmcjhkZzNwMENpUTU2VENWbG1GRnV6cy9MU0VxdjVWdTZYNzJ3Y0oxYWxDZEdDUU9lRkI2ZVVlVUZpQjNqM0JjUmdCYWxWcmhackJ6Z3ZuT2RXV2ZDaGVUZEg5TVpLeEtPSndncUtzTCtla1dKRTAvazJRcVJuWHNHRnV3OFQ4S3UzUHgraU1sb0Rzc04zVWFDbFBpTmxUTWFtelRJQkFzbllNL3c5V0orZUtoNnBKTXZlVVowRjNtYk5vL2lON3BNSi93M01leXhreEVGRXdEcXZ3blFDa1F4U0c1d2FaVVhXTmErdXBGYWpmSkkyaDBwNDBPRjhTQ0R2V09pdXdyTGwvNG91Q0MrUkFmQktXZzZZKzRVb1JxejZmTWdVemt5elVlYTl4WWg1UGFZTUg1L3ZPYXJ0ckl6R000a2laVGZPRFdPY1FjTHVyOVpiRkZUbHpRNjlzdVNJcDcybEphaDVDS2kzWVBQTDVQM2wyUDRacmthRjBueW9OS2lVWkNNcVhIeXVSNTdQY29nSG1WNHgySUpiZWpoU0ZzdDdyWjY3SUNrZC9BQVRwNFJEN2FzOS9WeEd2bURCampsazdNVHhCeEVkdEpwUFcyQnJhNHlGZU9XeUEvclR5Nko5T2l6SmxkRnMyZVpKUlV0NUdMbC9iQnFHOGNsU3J5RS9ubzhRcWxKd1R6WkRHa3NMUmtyeFc2cTg0eTdpbytiSGVQSzg3My9nNmVjNGQzL1hLRkRCRDBqNzRVdTdXRkV3MWtOc0dTMWZJTm5YakpjSEtYaFM2K2JCUmpZSWw5Qi9IeVJodUNmRE55d1NzK3ZUUVVjZWVtSnRzNXcvelJ4VS9BVWJ2RGJWS0Q2bzNzSklka3JacVlOTmduMzZ4T2VLU0xhNjdxZnBobVlYVFBCTSt2RHozZzBFTmdJNWV0ek93UDB1b3N1UFpZdEpNbUI2ZEExREpEUzlQYjNkTjV1cDIvR1IzUGU4TXg0N3U0VjF5Z2JSQXF3N3hWNGZuR25qVEh2U2F6cWpIS0t5TEdwK0dBbEx5Si83VGNseGJqSTYwMHZLWkIveWZieHFhUXFtM3Z6L0VyWStEbEJ3L2JyeDNlc0kzQU9IVy9UNEJhZGN2WnlFWnBVdUNoQjBjeExib0tONjlLb3hRbmpxQzBRWEFGYVozSFNwZmNyTG9vOU5nRTNnWnNHMlRObkliM1hmdG9HaWRaS0JmVFBoOC9aNGpzVFY0MytVOEt5dWVTYW4rK3RCRXlnREtFVkxNVUN4VDNJL0FMRjhCdUJsVjY4LzNjdkVUQ2ZPUzJ2Rkl1ZmV4NVdldkFvSDR0Y2l4Y21qZTRpMS9IK0M5K3JEMVMzM0V0UGxsTmVDK1NVOGQ5dEpTYkdaZmJUY2MrbU9VYTdBdGtqY0tlbEh0c2FBNDlkVE44alVmR1pGallpVGtRQXJWbjgvYmdqd0RBK0JqVXUwVVVFRkJ1R3NLS01iWjdxWjlGQS9NOCtTd1AxbCtRdEU1SzFMTENUNU4zSlRTTmNBNFFyK0NrZndHUjBaVDNqWTNLZ1Z4aWJIS3pMaHhmSmVLZmNqZ0d5NTROWmY3L2U0VXRwWWM4QmhySVU3VldMMyt3VjE4c2c5UUhoM3RseDgyK0tvaHpJWEhJSWpFbEZ3SkJFK1FXNEtQbG9nY2F2QlpmaUNlOGIyTGJEYnpIYlZMY2pORWdNcm0wSTNHd1liVGx0bGxWSEpJNnZGa2VadzN3ZDJIbVNpREN4eDlCUUw4dDJWakdKQzdpbE1tL29BQVZKOGREQXhXOUdPbVR1TUpGaFdtMTZUcWVhR2J6ZXBkSE1aajBwNThIb3hyS2c2VUQwRDQrY3Bkemg3SmtVL2d1Z01rTmlYVDRJOWlUcXIxTUVvc25OSGI5NkVsREt2Q2FoWjUxcUE0ZEozeXc1bzA0aHpzS2xpaWF5M2tmSWFQbXhRejdhT3BVcFFLeXNZaGVZN2hDUDdBYXJ4N25GOUFvUkk5a3NNdWh5d3M1dllMd0hKajZpVzFOd0hrVWN0aEIydzBqQUwvdjdseksza0xCVFpKTExtalhTNzAxRjBOaFROcG5MbkNNL2RWd282Z2piN3lxUGc3bWZtRjRKVTJPSVI4VWs3UTZTQWJVUVFRZzNTcU1jMFNSaDhqZ2R1NHRPRyt5WDRWRWtNNXNJKzcwSmxIeDhtRThIY1E0eHlZUkVEWk5RdzB2NHNURGgwbC9LaEtMZlcxUktNeFZ0NFdrbE03N0hWYy83Z0szMVFQUm53Z2V1YzY1ZHk5dldIVzdldklET3pCQmcveEFtZzE0Rnl0ZmhWMW9RNWJYWi9oRzVYSi9WUm5OVjlTOVNJVzdxRlNqZEV2L3FuZWY2VTRrSHBDUWVSSlc2Z3NWZVkySEJwRE5IOVN3VGJ2TEt3RnAzNUU4V1dZYVZCdXVwQW1rOHZmSHhHYlk1VjFmNkRoOTkzbHlUZEhxSmtzMGRWWWUvZ0owZGRqUTAvYzhIYVIvdTUzMXg0Vm85cDkrNE9qSEc5TEovUzNXVFUwUXZsUDZXRlFKVFkwMkVPMGRZU0Rvam0vYmtLY1pMUm5ITHNjK2xoZCtyNkZ3dVVzeUdzc2xBNjNvcTRTeFNBandCbzZBTVF0dDBKbktydFgwQUc0WXBveXc5NlcyejFxTGduSmFTczZ2QVR4S01Kak4yV3NOQ0NDWjMydEcxcmNKdWxxVFFYSzRCYjZuaDRXa2drSFpaai8zZU5NV2dXb0Uwb0JmenR1bm1qTzZuM1h2R0RVaDZ5REdQcWQ0djJIb0NCa1QxWFMvYTJkRFZkamtkNE5PZDdMSnlUb1dFZ3V2YVZ0T2gzd29kM20wZmxheVErVjRFQ3k3NTRFcThYYlNWY0lvVzN6TW1pU08vSmRlT3YxdTR4L2p1T2JJSk01V2U2U2tGc3VLRnJwQ1gwQWY5eHVFZEp0c1NiVFVRcVJ5Ylh4dHdJWTdGUmpFdnRGbXl4Z2M4Q0pzNWtjcnlrc096dThiWG5mTDFDVWFZVkZkTE1qbjN3UG5uUHNnRHBNNXQyOTNEanYrN01wejkzTDdOQnFUT0sxOElYUFVNU0JzZzVqWXVJRk1Gd1ZsWFpubUFJeG9aN3JjVTdWTFFBaG8wcmpXdjFxRjNSZDRjalM5bkdKb1NBVjhsRlZuQTcvRE8rYzRlNlhxQTRQYytSbHZRL2pCTHJEekplTDVNc25DTkFGbDNHbCtXRVA2VVNGakRsc0pvTFllRDVkS2lzQkhPR1hFZkk5bU5uRlo4Q2Y2Y0U0bzJkYzFJNGo2MUdBajBDS1FLd2h0VXpyS3kwTFVsaVp1SjRKVG9oWkJsM0R6OG5XQlZrZTF4cFVLc2pXSGx0WVVVQlJxVmFIV0lNZktOaUw3akFRbFkzeUNpL1l3WWhkSmpzM3ZPL0xYNUl0QjVtTGkwMWk4S0ZGbXY0N3FsL05DV2xML0xwc29lT0g0c1IyWVJwNitWMDVKenM0djVBR2pJcUt0Nk9Na1M5cGIzeWtjSUROVVZhTW1lU0pxaWZ6Zm9GOGdTMmQvM0tua3dPWjJXaE4rNk56T2pEUzhtMnhrZ1pZWDZHbktZSmJudllrWWJsU1VTblJuQVBlZGFWNVExZ0p5Q0ZVeVJ3RzZUWVZpY3o5V3MyL2Q4bXMxRHhWYUwwSGRaT095WjlLQytCeENBU3k4dlQ0RGxucnhJY051SnU0dFN1eWVISzVHRjFWVmVsYU82Mkd3S2VvOFhqZy8yL0M0Q1lvY3FmNDA4bmlUSi9KOGFlWWRleExTMDBoSVF6bTZva2wyNzdCd2lPa3Mza0xhV0kyUFNQQWRkZ2NlSnZmTGx4ZEZYNm5RSWh2bkRGN1JnVVovd3pLak85YitmbFgvTTJ2MDhXRzlqUkwrd2ViVkN4ZE0yd3RLaGt2R2lJPSIsCiAgInBheW1lbnRNZXRob2RUeXBlIjogInNjaGVtZSIsCiAgInRva2VuIjogImV5SmhZM05TWldabGNtVnVZMlZPZFcxaVpYSWlPaUpCUkZsRlRpMUJRMU10VTBsTlZVeEJWRTlTSWl3aVlXTnpWSEpoYm5OSlJDSTZJakJqTm1JMU1HUTBMVGMwTnpJdE5EZzRZeTA1WldVMExUSm1PVEZpTlRObE1USTVZU0lzSW1GamMxVlNUQ0k2SW1oMGRIQnpPbHd2WEM5d1lXd3RkR1Z6ZEM1aFpIbGxiaTVqYjIxY0wzUm9jbVZsWkhNeWMybHRkV3hoZEc5eVhDOWhZM05jTDJOb1lXeHNaVzVuWlM1emFIUnRiQ0lzSW0xbGMzTmhaMlZXWlhKemFXOXVJam9pTWk0eExqQWlMQ0owYUhKbFpVUlRUbTkwYVdacFkyRjBhVzl1VlZKTUlqb2lhSFIwY0hNNlhDOWNMMk5vWldOcmIzVjBjMmh2Y0hCbGNpMTBaWE4wTG1Ga2VXVnVMbU52YlZ3dlkyaGxZMnR2ZFhSemFHOXdjR1Z5WEM4elpHNXZkR2xtTG5Ob2RHMXNQMjl5YVdkcGJrdGxlVDF3ZFdJdWRqSXVOemd4TkRJNE5qWXlPVFV5TURVek5DNWhTRkl3WTBoTk5reDVPVFZpTTFaNVRGZE9kbUpZUW1oaWJtdDFXVEk1ZEM1S00yVllWV3hhWlc1dlVXTnFka1ZPWTBkTVJWaFJOVzl1YmpVMVFYTnBaWFp1ZVZNMlZWZFZYemxCSWl3aWRHaHlaV1ZFVTFObGNuWmxjbFJ5WVc1elNVUWlPaUl5TmpJeVlUSm1NQzFoTWpRMExUUXlZakF0T1RZNU1pMWlNRFZqWlRVNU5qTTVPVEVpZlE9PSIsCiAgInR5cGUiOiAidGhyZWVEUzJDaGFsbGVuZ2UiCn0=",
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
where approval_action is actually base64 encoded string that contains JSON action object returned in Adyen server response:
Response
{
"paymentData": "Ab02b4c0!BQABAgAX1ZMvk4sMa5FYbzDxc2+moT4cO4IUsE3cOWgW/VJF6O+CqUkn2BL/ZTftNaDbVCI+UhJe4SiRTjgUVAsEinT+U3qoeyNgk72gE8kE/1x0Fn+NA6JGoEzpHySiRe+bJMOfSWgdiqLa6KvqSAORK6HUPfCw2l8j6XvzhWlOYkLTQBJ7NzxigXocmwppIXGIWlqOpjZcf37QcRpX9UzpFXVVkAeVnEzXpEPeis8vWQdjdzZPPP3AB66AQErFXkA/mgHl167s5Ai+ws//hRBtBNfu/Ry7v5CokBZ6LdlksVI8/88YDXg0X2gn5w+EsMZ2eNHQ4taKt+CJy2A+m5Srnn3Zs4eYw57gL4Umfu/jWhA+yIxUP7gBQNjtD+omrWk5Of3i+1w8iIjP6gyD1Y/arKcl96CfJgknM/Cq3ZMQ55ayDIw873KkviCqc1UZvrqoJj8ansg/ahXh+M/6MAMhkqP/zsYnqaXroOHoG3U5aWF7xOmHmapan5qq0yPr/Sp839ravSJFvMrJkOEiauW1JB/ELVa080YfsK4acUwpOnI3UAWHWR/LNwyZjK5RXQ1+fqgs2+DGmH3wdxs57AABlc8iRSnUJWxeiDl/Q+wZVNIRInlfzMXRndCNBu/D18mLK5shwTBsZQiER/xqb1g0LdtFcdfo3YBDDcAvmaXdkMrHmxCf2Dgo0OPRi8X8thaXmP+GAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifRhzS6o12tULnVLPlU/X4svbp2MnZgZ1z3vZsFN2JlWsrUty+ROA8FMz/ox7SiIp/t1/NvyGEBeiHoizDHOuWNKVZelFDHxGaApc56Wc2DtHGTIeEweeOz9S6WlFOELXvNyxRg12r4/RYTsQSXP333ajX42pNnNojH9cdCKk/twbqBvVQlXfUUjpiycSIu5uLUmyWHOqUcDqT8LxYQ+7U0MQN7FyImp2xhBS6Fwxu4g5qhnryesOI0Ls2g7nh1IF+TzJzde/Hqz6krOGxSbLfeb1xGaLiABNsqGrSQb6E2nL13quBwfEQWMVAHDFbHK34iCR/R/xgnNq9hi56D4rNYtJafNfVQQFXErBaIEknIUX6xhWZm5X8oAQ1L6OA7jEvm8Axs776cYjzbRIbsBTm1BDGgGt3xeJMOH7sMQLv9l421mIc0zpBcXkXaGwtHZ5c1LCRaWUU+jXfLODylW6VWNqPvg3O5wxlwRfPl0a1inu2hE2oVkv2bYE3ipuh2NpREpW7bqWDjdnbAhPa7JuC4dnkbWd2cGnuA6ZZzBU/AiOVYmQUDUIuc39GBlDw+aCwMWc/DOD65/2zw4rLNRNzfiBfkmgp0gyLw+TD8JdC5mltPmP9m5CqnCGG6aypaxhQbf7X4pYuGJlz5DeK85XVci7/o0WQvkyd7arC3fevfNdhTFDZUEmUCpY0DyRqgZWaXHnzRWzjwwC2gxs8Dgac3okrf+J1Q9H8csKtlPOLiTNhhK4ue0cHYi8b6Zli0b+nkw4FSNeRL1IIkfWMnocKXzu5AlQl4ddJM6TCxYPZPd8Jpn3e82WZl6UViJMBJNPht04Ucqy6nyns/K1oydRW1V3oQMsJXzpePhfKIIG+KgCIhbvg/3DOSR8djwR5S7/t9wkTt+33cqSjsFDsxToq7nXTubeVF29kbekkkGKreT1CnposEJrTKMymMMMgvxJUbpx62HhKg0EC10ynfiFRrNmKGMaD8fbIf+Mh7SgYTQ2B+XjE8R24EUn80c0nExEZ5Dn9vA3dPWbr3YQoFLaX1JyKssl1fAEK/acqhqKVvdkPR78BGVuCoGkBezClJrLlBpGmqBysCCuGV7zaFJEYqr4+pWzKyMR5NRUEIVsNn6PVSrsvMit6opkht8iWwd3ohZXYBS/d2a0BZpIozW6KrW9wRGLUSxQM3vSHh7yAccQHH6CDd/Yd1BuxvAhjecC5Cm665LT0F3KCYOH+uI/buF/O22OLmPSxDvgrmg/C9pJrqd1l7bw4OmlUttioNoVk6Yef+h1w87xTITyDeDQkwME3yJWU5autkP+dKC9CzrGy237/o9JfcSW5TTjOP7AOyAIlPQTYj9InPFxmPxXP6189MbZeMmL/AmcC6Jn3J4a6BSy9cJGtOVWjZiMTYkkZvC7eRkDFQOjl4VP5LnUJtx+gUD2YCqbYXfxtReAeFvCQHvT9o6PyRoSl4qr0SCHZwLVlc9bP37cSBZbqLPG0MMKOK53QCXIFmGnzRzNLO4y16T+zsQ3ERofJ0cL/qG+JSdqbeu1pat0H4SCqpWZ5zUGatC687XwRUaXfnXde6KaRTadUZMxSlunOmgY4rM8Zl98M6lkRtIixVNZX5VyTFKYngrOCjok80j5eTy+DkKKsFu3mUXv8x199JqVhtT2mHy4WgSyXBkqKMvueobC686mnfyglY5izXSgZ3BWdnErV1+bBHPJ8/Y0vphfpdlNMHxJSktKGUDtmVE4kOjsk/J0crVvRoTcjVashFNssNeZ+TEYR94tBcaaSCuI+4JStJd9xDO1hYvseJMZ8h/V4o00ZRu1CxYhzoDDE6bCJEtrp6LQ5CvYM2G9teSBC64od/FuqL/zKcANDm/Krcvrqoq+MG7S8uk3YHV0sopfb1uBk6EUL1QaCD9IkM0LL/XRbD+DSN8QJz8m9a9nVQ4Kb2SQHHkmFm9ht78Obhk0494RaPx0M84Ft8+NaoIVG8yEdewz2ynfSy/MrRjy8J7ayTJGMP1PbIjvq23YI5BMTBRS7adnXW771gwGvFliMDHfESk6cbR+q0xbX9JtHTRgFPRgfLtw1a5CnVhsygQo+DNAbAFPXItHGD6436rTk4E3/Kxq2C2PxfZTlAP/tW5zB4Ais44B7U32O4HAMAzNvn6yhLvq7N0H5rH5k1HjZxgrvFDEqcHZVtrHW++BqZMu2NBdbYPdia2PYLJuijj8D/z5AkILuR75ppj25BgXpYeuQCVc8cpQbdOyyUuiR+/OWupg6mLDtcQRL05cllxziVLfHgxX25BrgABmZW2vJ07/aFhkDWJa2O5hlADnpmflwmPg++9FoM1HYy3pnvVEdyqHGYkbI5+vqzvtiqwjGT2qkltdKupyBbjYqwAVBsc4AACj4QvucBuhTL82jzS7mzUQ1j8r4uIvc+pQOOhknYYUmxrz6D6U36eoVHrZUcq14kK6PP1vgeahOwDp6skV/KFWJzFrmvGOgSALxVdOGA9ZLURT4mIBEQB5CPGtulU8/I30aw/su5BWig+Y8BouZuykCpNvU7EsjYFasiRrhrZkPRfZCvpsIrFyqbxRfhVBO/GAeXrBYoRyBRNvl6MAPGgIhg/7TJnwSMWuY91PNe9+n5uRKD5GQLwy8hlNIPOO4W2rC7u2f5Ek5y3DwQWCrtQNKXQA3pSc3xJXpuIA5v1+mnzA+7DkjwTm+KCc7Gl2f5hHZfkL57xfwP2ZtUTy73kMr/lzkyzivXbeO2WZnHVAzWko4Hd40QUezMQ6rjkIig15qvNOWqggHnYn3rfvVsUidFNtUfoFY9oUOlDV0e5p0bQE2jhOd2QsHLPRrK0wDs8RUsVszhQFvD+Ao6tV9yusLWN9l+leka/bYuXd6fB2aAVV/Zo16kOn9hcTD/6I1jOpDU/KfxmhBf6W9mupjOYVIps7cZgU0kpbN2t5KndfFvNeArqDK089tYIH4gFimfbN6PqdIT1ZTOOerEzngRUMg2XGlq/LQ9z/9lUQHmhsAbv4vnZN4UJ3XBDbq1DZeGg09oUMvFIhiGnpx3x2FDoM6nyVXrTxx7gcmRsQ+utdv2QolNIu1KSUM2Fz5FREvqekcKoAQafOqDKOht+ohHrTLjvIn3xFvK7o93hGA5voA38OBuq8TX/JyglGKpOEAsznZnlQugpe4qkiemlVKTZr/zYiv9zQDgtzL6QDmQf/Yq7AEIjC8O9a80iRc5kpxSn5Nw3pSWmELxFB00I4uLFrGyU2YFZNeJonYjJ2VEy4ml5jnDxRLcBnWkMpPcy3fc1jNt/SNoqumlVxBURK+kDzeEYwnjgvj6ws7v57K4Il/c8/9Tok0PwDuhH3LEt5KBNkk98YVdOvuytPrklo/QlEHm/q1dvylysyz7SEO/7eONDAlhQCKWul4BYnEEa5OipgAfgbNPswJGyHDvLNWbPRBwe280HWheqiFYelEh7NgEimlqCDVNGqsH8gqj9Pixve6yWwymoyUOEdNuKBHN7+1Kuf04kyRKNbiwcTvVsopBh2g0yxUFvDhm3BStY1W6UXoEIhZO77LNJ+dTFCqvD/4kPjdKxifIjhnky0jMcoYFuvBx9fjiQFXrWtGP8kx90gw6tkHjm3oZfiRCyaV4Yc8L29uCzYxP8b7hCEDNZQFT5i2F6/UsgOGwqWYmCIqlBuC2zFtu68rFXlUSNUY58EcfmXHlMw/OSlRsoAYEYuNUtCAU7YS3s7dyAvygWjQ5n3fAuCWwb7ZX24zIwvPiiyErbXWPMt3fj+FzuE3fTJX6HBu+VrLNaaT0Fu8MagSEhfYExU1peCYIRByrWGF3oZR1WViV6e50wrCEEmZrOs9SrPoeuCFMyKfd8ByWVAZpfHP2UP8O4ruN7EPtZxxOHJCyl2vSvnkBmE3E3QvZUbG7fE9hLQvfkK+G4MYrv/C9/eEa+vMX4CGzsUFZtbrd1m9QSan6N4Iw97hA+yyfwKj2eZZMvvEBuoaMAG1QFHyzCeJnVsev9sA+f/HgLeZbEKhMr/EJDFELzpAE5LXToHEbVSsobvvO1LNlVz3IAeTm27HKcX9usN6iEjuiOtEK8w5UeEBhsq1GNjLeyWYqMFphhTAdJeSq4PYWbXx38YF/2/TfPB9vuPg/YNmqmPDohkNzrKKEMe3Fw4JgUhWcGikl9aHOwb0gVDki6NXYIvt17GuRIsBTKelx2d2PEfC/ldnDzOFvsfIf3qP3cKeG/WD4bXT0eproecfDYTjLq+mGeDx7fBHeGd6egcNE6h5dOJttKSkLplS7NS79OjX/bwboQ3hGoatyA7WBMn2QfTQ2Y3Y/q3DleugaSpaHJG32XzMcC4xSiJ3e1y43IlE7Xf/1AA9WDMMkimFRV31+pUqcSjPw3AKwV091bO/06slNvxJUXFAYoNZXLc5Dbf/aPYQFC+dKcdzrxe2QfywuVwTyiznw9Es/GrDsO3Vgela8+zOufUpy4DI9xE+ygk5oVJCWU5vMnRe5sx3erzvcJ17nj6J2x9m7iTXhO0gKt/QDiN70PB7QW+AO7iTf7YObO7Cripioy6Qkfa6xYPSdHloful811g/PxcFyBRRNSvrI1i8gOLWp8kBjxVoZMPBN5GUxNxX3chCnbLlWpudvRrYHld9mCFq8SHxc9E6Mpzt/FOXeTju1bh2hdaTPL14np9xZ7iSI1JiaiMt1FU5onBNnqo8DuI1YekaJkcvj5FOdn+410v2+oiE42xx+BZMiu+UtEW0kaScDZDS/BlZC26y4/LJb5mom1bdsGZoDjGD6/8azjvJGcmffr8dg3p0CiQ56TCVlmFFuzs/LSEqv5Vu6X72wcJ1alCdGCQOeFB6eUeUFiB3j3BcRgBalVrhZrBzgvnOdWWfCheTdH9MZKxKOJwgqKsL+ekWJE0/k2QqRnXsGFuw8T8Ku3Px+iMloDssN3UaClPiNlTMamzTIBAsnYM/w9WJ+eKh6pJMveUZ0F3mbNo/iN7pMJ/w3MeyxkxEFEwDqvwnQCkQxSG5waZUXWNa+upFajfJI2h0p40OF8SCDvWOiuwrLl/4ouCC+RAfBKWg6Y+4UoRqz6fMgUzkyzUea9xYh5PaYMH5/vOartrIzGM4kiZTfODWOcQcLur9ZbFFTlzQ69suSIp72lJah5CKi3YPPL5P3l2P4ZrkaF0nyoNKiUZCMqXHyuR57PcogHmV4x2IJbejhSFst7rZ67ICkd/AATp4RD7as9/VxGvmDBjjlk7MTxBxEdtJpPW2Bra4yFeOWyA/rTy6J9OizJldFs2eZJRUt5GLl/bBqG8clSryE/no8QqlJwTzZDGksLRkrxW6q84y7io+bHePK873/g6ec4d3/XKFDBD0j74Uu7WFEw1kNsGS1fINnXjJcHKXhS6+bBRjYIl9B/HyRhuCfDNywSs+vTQUceemJts5w/zRxU/AUbvDbVKD6o3sJIdkrZqYNNgn36xOeKSLa67qfphmYXTPBM+vDz3g0ENgI5etzOwP0uosuPZYtJMmB6dA1DJDS9Pb3dN5up2/GR3Pe8Mx47u4V1ygbRAqw7xV4fnGnjTHvSazqjHKKyLGp+GAlLyJ/7TclxbjI600vKZB/yfbxqaQqm3vz/ErY+DlBw/brx3esI3AOHW/T4BadcvZyEZpUuChB0cxLboKN69KoxQnjqC0QXAFaZ3HSpfcrLoo9NgE3gZsG2TNnIb3XftoGidZKBfTPh8/Z4jsTV43+U8KyueSan++tBEygDKEVLMUCxT3I/ALF8BuBlV68/3cvETCfOS2vFIufex5WevAoH4tcixcmje4i1/H+C9+rD1S33EtPllNeC+SU8d9tJSbGZfbTcc+mOUa7AtkjcKelHtsaA49dTN8jUfGZFjYiTkQArVn8/bgjwDA+BjUu0UUEFBuGsKKMbZ7qZ9FA/M8+SwP1l+QtE5K1LLCT5N3JTSNcA4Qr+CkfwGR0ZT3jY3KgVxibHKzLhxfJeKfcjgGy54NZf7/e4UtpYc8BhrIU7VWL3+wV18sg9QHh3tlx82+KohzIXHIIjElFwJBE+QW4KPlogcavBZfiCe8b2LbDbzHbVLcjNEgMrm0I3GwYbTltllVHJI6vFkeZw3wd2HmSiDCxx9BQL8t2VjGJC7ilMm/oAAVJ8dDAxW9GOmTuMJFhWm16TqeaGbzepdHMZj0p58HoxrKg6UD0D4+cpdzh7JkU/gugMkNiXT4I9iTqr1MEosnNHb96ElDKvCahZ51qA4dJ3yw5o04hzsKliiay3kfIaPmxQz7aOpUpQKysYheY7hCP7Aarx7nF9AoRI9ksMuhyws5vYLwHJj6iW1NwHkUcthB2w0jAL/v7lzK3kLBTZJLLmjXS701F0NhTNpnLnCM/dVwo6gjb7yqPg7mfmF4JU2OIR8Uk7Q6SAbUQQQg3SqMc0SRh8jgdu4tOG+yX4VEkM5sI+70JlHx8mE8HcQ4xyYREDZNQw0v4sTDh0l/KhKLfW1RKMxVt4WklM77HVc/7gK31QPRnwgeuc65dy9vWHW7evIDOzBBg/xAmg14FytfhV1oQ5bXZ/hG5XJ/VRnNV9S9SIW7qFSjdEv/qnef6U4kHpCQeRJW6gsVeY2HBpDNH9SwTbvLKwFp35E8WWYaVBuupAmk8vfHxGbY5V1f6Dh993lyTdHqJks0dVYe/gJ0ddjQ0/c8HaR/u531x4Vo9p9+4OjHG9LJ/S3WTU0QvlP6WFQJTY02EO0dYSDojm/bkKcZLRnHLsc+lhd+r6FwuUsyGsslA63oq4SxSAjwBo6AMQtt0JnKrtX0AG4Ypoyw96W2z1qLgnJaSs6vATxKMJjN2WsNCCCZ32tG1rcJulqTQXK4Bb6nh4WkgkHZZj/3eNMWgWoE0oBfztunmjO6n3XvGDUh6yDGPqd4v2HoCBkT1XS/a2dDVdjkd4NOd7LJyToWEguvaVtOh3wod3m0flayQ+V4ECy754Eq8XbSVcIoW3zMmiSO/JdeOv1u4x/juObIJM5We6SkFsuKFrpCX0Af9xuEdJtsSbTUQqRybXxtwIY7FRjEvtFmyxgc8CJs5kcryksOzu8bXnfL1CUaYVFdLMjn3wPnnPsgDpM5t293Djv+7Mpz93L7NBqTOK18IXPUMSBsg5jYuIFMFwVlXZnmAIxoZ7rcU7VLQAho0rjWv1qF3Rd4cjS9nGJoSAV8lFVnA7/DO+c4e6XqA4Pc+RlvQ/jBLrDzJeL5MsnCNAFl3Gl+WEP6USFjDlsJoLYeD5dKisBHOGXEfI9mNnFZ8Cf6cE4o2dc1I4j61GAj0CKQKwhtUzrKy0LUliZuJ4JTohZBl3Dz8nWBVke1xpUKsjWHltYUUBRqVaHWIMfKNiL7jAQlY3yCi/YwYhdJjs3vO/LX5ItB5mLi01i8KFFmv47ql/NCWlL/LpsoeOH4sR2YRp6+V05Jzs4v5AGjIqKt6OMkS9pb3ykcIDNUVaMmeSJqifzfoF8gS2d/3KnkwOZ2WhN+6NzOjDS8m2xkgZYX6GnKYJbnvYkYblSUSnRnAPedaV5Q1gJyCFUyRwG6TYVicz9Ws2/d8ms1DxVaL0HdZOOyZ9KC+BxCASy8vT4DlnrxIcNuJu4tSuyeHK5GF1VVelaO62GwKeo8Xjg/2/C4CYocqf408niTJ/J8aeYdexLS00hIQzm6okl277BwiOks3kLaWI2PSPAddgceJvfLlxdFX6nQIhvnDF7RgUZ/wzKjO9b+flX/M2v08WG9jRL+webVCxdM2wtKhkvGiI=",
"paymentMethodType": "scheme",
"token": "eyJhY3NSZWZlcmVuY2VOdW1iZXIiOiJBRFlFTi1BQ1MtU0lNVUxBVE9SIiwiYWNzVHJhbnNJRCI6IjBjNmI1MGQ0LTc0NzItNDg4Yy05ZWU0LTJmOTFiNTNlMTI5YSIsImFjc1VSTCI6Imh0dHBzOlwvXC9wYWwtdGVzdC5hZHllbi5jb21cL3RocmVlZHMyc2ltdWxhdG9yXC9hY3NcL2NoYWxsZW5nZS5zaHRtbCIsIm1lc3NhZ2VWZXJzaW9uIjoiMi4xLjAiLCJ0aHJlZURTTm90aWZpY2F0aW9uVVJMIjoiaHR0cHM6XC9cL2NoZWNrb3V0c2hvcHBlci10ZXN0LmFkeWVuLmNvbVwvY2hlY2tvdXRzaG9wcGVyXC8zZG5vdGlmLnNodG1sP29yaWdpbktleT1wdWIudjIuNzgxNDI4NjYyOTUyMDUzNC5hSFIwY0hNNkx5OTViM1Z5TFdOdmJYQmhibmt1WTI5dC5KM2VYVWxaZW5vUWNqdkVOY0dMRVhRNW9ubjU1QXNpZXZueVM2VVdVXzlBIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiIyNjIyYTJmMC1hMjQ0LTQyYjAtOTY5Mi1iMDVjZTU5NjM5OTEifQ==",
"type": "threeDS2Challenge"
}
- Similar to step 3, client app processes received action data received with native SDK component and performs challenge authentication step. After completing the challenge, the processing result contained in data.details and data.paymentData attributes should be sent back to the MENU backend through POST /payment-processors/auth-payment API endpoint:
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/payment-processors/auth-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":
{
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"auth_info": {
"action_result":"ewogICJkZXRhaWxzIjogewogICAgInRocmVlZHMyLmNoYWxsZW5nZVJlc3VsdCI6ImV5SjBjbUZ1YzFOMFlYUjFjeUk2SWxraWZRPT0KICB9LAogICJwYXltZW50RGF0YSI6ICJBYjAyYjRjMCFCUUFCQWdCVFNRYnVpNzJpYS9QdDIvQnZyRVRwbEVFN2VFdThiWTBHNDVxWWZJeU5tT3NjQy9TR3pPUmhzejZGTDJlU3N6aXZ4TFA3dXNsRXV1a0wxREZNZStieEZ5SE5VSUFKNGJ6WWRLMXBIZ1paTEp3Q1dTZFZNdzZZRndBeW52UElYRWMzaVRKUmR3S0pDcVY0dWxpbk42V1JPWm9xV0NwMXNLTjR4eWIwbXNXM0hBQlNiWU0vRGZLZXY2NUJzU0xwdjY2UVEwMGR3ck9FU0R2ZEpPM0t5dnlaSE95dzNxOVU1Q0UrcGtmV0JJL3Zud1owL1NyNlRpSzJPTFdiK05pekl0OVFPRkpjYlFNQnBVcnVKaEVSWDZpaTZISDFHV1ZJODhKRTVrVWpIbFBiTGJtbU54SDNOcEhDN0RtV3kzRDVpSFVwdzcvNzR5VE9OSEVoNzlINVBtNlBUeTZNNTNBYjk4azFBWFhhdnBqNlZEYW5xMnhWTmhXVFhUMzFFS0xoQUhyZkhNdWRVa2s5QzVQbzJqM2Y5dFF2WlhudVY5TTdrOUU4ODVsR0wwNkdub3dseGdZTzEwcXhpcjVKKy9JbDJselhnTDBzZTRzUjJjNkU3SnZsb015SC9meS9YUXV5VXpnZVYyU0w2d3JxSUxqelBJUVQxek1lWW03ZlJkM0w2R2VlNW0xZ21PTjkzSDRPajkzYUUvVkxKWWVkQVhIRkxsZVM4MWVHcU1PUkc1akRvYVJCUURGQjdjOHY0TE90aHVWOUoydC9NS3VJOHJMQXdlbFlkR3lXZVJqNEUzUDd1UnF4V1RVU3hGU0JRSkxnaGx6OFVtV3V1eXM3Z0tGTityZVZ2WndGR0pzZi9aTy9XUHFzNjJ2ZnB3eXRlbVkxeit1eVg2d05qemxQT3hCUWM3Y0w2YmNtMXIyTlhYK2dJNDlRQUVwN0ltdGxlU0k2SWtGR01FRkJRVEV3TTBOQk5UTTNSVUZGUkRnM1F6STBSRVExTXprd09VSTRNRUUzT0VFNU1qTkZNemd5TTBRMk9FUkJRME01TkVJNVJrWTRNekExUkVNaWZXRnM0eE1SNUFkSnRrVmVmTXRkSHB1VWhsdmtNVkNQdCt6RDloY29wTWoxM2FtNTJkWFJsd20wRzAzenp6cFZ0QldQZmdRUnpYQkFiZjR1bHF3TWZVdllkM0pkanVPbmlGOEhEbXZMU2pXU0JaZXhGOE04RVhHMGMzNXJlbDUyWTBWaElibjA5Y1M2WVgzRCtwWDRxbEo1ajNHVzdkd1RlTWFVVCt3RzNCcmUzODBKaWI1RHM4ZzViVWxLanBpbzM0aWZROENHajBmaVJadlhjbms5TmdhYkVtRnFCZVdUVGpMTmJuRmFWMzIvOWV2Q0NxUExYVkdVWjRmNmwyRnljK3RBUWwzRnFQOVJ4SmV0VkYra0hnOW15OFZpVmMrVWppTEI5UVRaTFZkYzlYcmNBbFFCQUMxWjJTMFNOejNqZHg3S2RQTmlnU0pzSUdpeUlqd2JwS20zU2kyeVdqcmZCMXhTZzdTaW1LajQ4N2RIcGwxdzBOVTRYN0YvdUxDY0dEYlREMElveWNzQmc2Zyt0TmZKeXcxOVd3M3psYjg0UjNjNkxtMXRhTmRYcUNTWHhCekU4aEtNbjBIZmpCUkpGZlU3M3JYTS9tVHdoUmJJNGRLZTB3L085b1d2QVI0TUhoUnJIZGloUExuU0dkbE9HUmRUam5rekM0RUhQc05pSm1KLzFZVHExSjVBQnNMMGd6c1dyS21zdzliTnRqMXFiREZMMDQ5ZnBwRjhjSVlpY2crU09TeHdUNElubFNsNkgwWlp6a0thZkdGenY2STAzZlZFN1JKUlNxVGFkelJQS1FsNDgxajBycUlNSzlGSHhPbngzRGlVOVJFbVNCejR5eFkxYnNQWUYwZ1QzWFE3WDdLOUNPUnFiMis2N1pneEd5SEFTa3FWK1dlczY0M1AweWtiTitxeHRqMXdHTFUrVko1WEZzQjZPTk4rdE1RTEY0VU9IWHBLRUdlcytpZDBaalJ3bXFvNzEvcWppZW5nZnlDaDdzMzRTZzVES2piN0N0ZWd4MUpSeFY4Uk9LYlFKVSsyNVFQcTQ1bGdDdzJwdkRwQktwdnRhdWpmcldtbWt0OS8rZm4zVStEWGxVRXdCbW5JN2k2Tlh6WmE0cUdhbXBDOVNYYWJVMGNGNFNJSDJpUGtMK09RUWdLWk0weVRBYVBxbzlMSmlXNHpjelozaHpQdXZEcHBwR3VRc2pjeU5MWFlBbklRR3ZQWVh5ZVNINXlsRmdDRVBVdGZkRThURDRnMDNURG9FK3RLTGxoTVBEUlJFYks1NW5JN0RiVDVTMHovbndqZEZqbnJnYm1EWm5CckM0MHlKWjgraTM2SEdDREw2bW8yNWlRTE9FQ05qSEVESERRN1FERm04OU93TjhCRUNtMld5Znhrbm1KWDVHRW1zcmhxY2hiY0hGZE04RjB1WWVrOStQR01Zdk5vMmVmQnZ4ZWNJZWhDSmFRUGVTZ005cThBOFZWMXF3NTcrbGU2MHFMalpBaGdLbE9xZ1hIaHA1cVJrYktuU0pWUmIzMWhMUkFRaGFBWVhVcHd5L1NaM2F0ZFRkbkp3ckJuNlJmcDRVSWtXWkdqb3hhVzlHLytZTGhLWjBBc2NRUmd4andXNG03bmYveEpaMnNCM3VaekZ1eG1yYkxxNFRmZlRMMFFqOUlRd1dzUXFWQmxTbXp2MDlneDU2NEJQTVo2VDhHMXNrWXJ6dEVlL1c1cG9hdUpCSlFkNVNZaWxHeXg0aUs3a1NkSm9lYWhFTk9yRmk4UjhYTkM0b3hJbmVCNVRyYmtuRDErV3pibnExNHRiOHRCYktud09EOXRMNlV4YW1vTTFhbW9SM0JFcVJnRjk0cFI5ek1VT2VRSzQ0VWkrK0Fvcmx2Ymp0ekZjR2c3Tkx4cGM1SnFKVFVwZ0lWV2J2NmNISG15Z1k4bHA4YzdRTy9FS0RBanRCdnNnLzU1aVpxaDJmUGR1NEszd2NYMDY5M3FpWnZnend0Nno3TkpoZmlvSHRPZzZ2YWM5MG9sOTdaemFPeVhnOEt0a1NQbk5YTzJxS0lxVnVhS1ZaVWxkVFhaM1hrNm5SOExYd1lEdy91eWZYN3YzWkkySVZqWU9OUWdQNXNkMlNsZENmcm1kaG1peDJUMHBFN05mNkRkaUxrM2UxUmJjOWlrWGtGeHd4dFA5VFhPTm9NaG9tVHk2bWxUVE1mQXVrWnZydS9UWDUram9IMGE0OFBvS2d0Si85Mm9pOHZ5OGRMTVMzSHNHMGRRblVMKy9NV2dUMjMrREcrOTFxQVZyRXdyRUh4QTAwOVcyNWFJUWFmWHh5WkdzMXR4bUZOQ1Z6Y09mcnMyUTlFTmNNbVVBNGtzZlBNOFVjY3pxcFErRFlZYkwwcmNaQXF0cjVVUERlK2NiNEJXVEhXdURVdTN5Y3p1VlUxMlhMWGxPLzVYSnFZdnAwVk83WFNjL2VpM202a3VsN3JrUU9tUk9aQkFMa3dYOFVHb1lFREdWRVlpYzIrYUp5UWxad2Rnc1VYRHdXN0NKdS9mNVBFOTNSRXl5ZWhiSzA0YWJSc1YrVGlLWisvSFBTNVVrSU15YlhRY0RvRzV1ZEFBSUVoVk1WdVdSVGIxaUNIa3NTMGllVldGRTI4ZThKZUF2b3BZT1NHNDhKaTMrbit3MkRwMkxYUzgrSjhJMGRwWDRvM25jNDFDRzgyU1Jqb0VDeVh1amVDUTlkdnpwOVhGc05IV0tOcXhTLzRrbVVRSkN5WDdRL1ljU0JURnA3amVZQU02T3EveEQ0Um5IUTNsd3M4alJ2SU45QlkxMnpodHJzRzQ1RmFJMG93VWthUFJVYkc0MVdNMlJKQTl6MVRDNHdjVE9xREs1NXdzWDZrZ3U1SzArTDBqYWxiY2ozcUxtRzZudTlubUhuOTJ4bFZieW9mRlc5cjBOZlFPdkVNenVxVE9xVnFVVG9EM2xYK1I4cDhFbFBFZWxmMng1Zmg3TGtxT1hMNDJ2c0F2WmpSUlNCU0hNcTJsb0tWNWhlci9FNTNPd3BpUXB2MUVNVWViQWd4bEJRMkRUMS9rcHc2a00wUnlGV3o1UFZXVmluejdNTWxHd0pmN00rd3dZcDBSS2xMU2pTY2NDd3JZaUQ3K1psaEdWb1Uyc1d6VTFsUU5jS2dQQkFiNHFtMXJKZnJEenFEb2NhamcwOS9BK1ltRmhkZWJybFRldmVHcjhvYnVTNzdsMWVhSWNkNm1qcFQxaVJDV00vcGY1ZUhEbXhiWlpQTnFibk15Z3VtaWg5clNTc3daT3NneGNza3BKUVVMYklCSm9uWGFBQjN2ZURTMmprbVJzMDFLR0hEaEdPbzBwS21oT2t4NzZURmJ2UjBJVHUrTFIvMW1IREFVV2M4Ull4TFlicFZxWWhQT0xsNjVaREpONHYzL3NpSzNod3lBWGFrZm1aenJpQkhYOHpNdS9zWTBRQ3o5WExJaGV6TXVVQ3R1M3ZOMXRrdjZUY0x6U2IrQXptTWw4aDE2Z0IvYXFmZkl1WmRGKzVOVkY2V1VvV3pzY2JvUlRFak9Jd25WYTJuN2pIL3Rsbk03dVVGR0dTNlpVZlpWU2t6OVJWYk9ONGY5N0lRYk44cDRaS0ZkbHorWmRrUi82MHBRbmhIVjBaM0JUZU9sQWpoc2pwaXhhOE1VRU1kUEFzcldUSlpRSldJUVNnenBnTEVlNVFjdUlQaFRsU0hCSjZsdWNSOGQrMUx3cmd5YU9tNUhPRWVhNXJ1Z1VEYlpxL3lQU1lNSDBQRUhmbHg0UDIvRkpUWDlBUVJSaWFzeXB5SU44T1BEaG95Sno2bjBpTG9hc0svaGNRN256SjNOZ2xZa09OR0E0V3ZudXRtemFyc0FrT2tMMFo4OU9IMCt0MzFEYW5lRi9zZWNiNHZ6TlFiVjVGeEJaaWtuK2N3VHo0S1pyZ0IyaUhwZWhMM0l4RDlTSDZXQ3ZCcGplOHU1YWVYR1locWw0akU5ZXE2NVdydkJidHY2Z3FCZHFMMjZUY2N2aTNvbWFQM2QwY2pOWG1Ta2QzTW5CRzFVUElPNnJuOXNNcUJDVGxVVlhzRFAwQnZtRkNlWU1hUno2WkdRSFJucytuRmw0dUxTUmhLZ3c0eTlLMWtzcXhYTThJWnZwRVQwSjljNFJpa2o1UDBSMW1Fd1VNOHkxaUFENkp4REhKUFpZSDlFVExmSlMzRUxwa283dGg4MzMvR0NLZDhaTXRFa0tyUlc3TDVDNGovRTYzMXc2UmtlMFdRemNXcHYvSVhqZlhpY2JaSk1uMnVWYVZPRlRhZzZHcytTQkhKbXUvUHJsTG1sQnl5Njh0WWJCL214TTE5WTM1WnVQRVdJeVQ5cUV3bUtHOWl0VnpsWXFyMDVnZUMzV2QyK2xzK1RQeDIvQ3h2ZHJuRVVydHVva2dIYXpuaVYvTHBrS1crUmIwQ3FpYURMQmRtb1Ryem95SnRNVnlCN0REem9MNFpYR2Z4VldmZ2VVTVZGeThVRjRBajlPUUd2b2lhRndqNDNNcTZzc1pPMEFJb0lEQ3VNbk5RUGI5R2hWNkJDR0wzcndXTGI3NzZKNE43eUxFRC9LMVJ0bnVsMVNjenVBZHFlZVdlVWxkbFN3dUgvQWRhbG9sNDdOSXNnczdKbFVkNWtGa2liZkhXWnNuRTM2MHEzWUdBK29EYy9ickhjSDhTMUNSUWxVOHhrUFRUdmtkRllZTzlHalFYZ3FaR3l1eHZMWlFidlpkNEZYTENOKzBhUm1qT2txcWQvL2hXWXpEZlh3YVZDWnA1YzdIVGc3REY5bkFjYXl2OWVzai80MG8vL05pc1F4THcwYm1ZMW9aNEdrTFVxTHFhcFA2dE80TDNaK3ZLV3Q3WUF0K2lmcml1cUNBMTU3VVlKdGNER1NaWnc3RzkvVjZ1cDBaeGZRWjVTNlJpbGJMK2FUUU54a0tSaEYzN1JMOHIzU3pHR2I3MXZaZnduWk1KanpvQlJiZkNMakJ6RUdDZnBWSjlTRTdqRmFQajBkbVU2RUhFcnExaHI4MzNBNkJaWEk0Zkg3ZnMwZ2ErM2NqOXR2aCt0S2tRK0VpbzhnRkN0b2xFdnh5SkNJNTFyZWlLaGpRVkRLSFlrbmRRVDJiMk5YbEJralhmOUVtNytaVGpSZ3BkWVFsMUF4ZzdNcjZ1QXYrYXdPWXA4NGU2TlI0VXhURTJiUmNwdksybnhyTVlscnQxVytzT3dVN1l2dGRwVnFGWmp4SGF3WXBXS2Nlc1Y5WWNQRzRnaG95WlFrSWV5THNhYzBBbFgyMmljWmd0dklEY3BlZ3BtZ012NDk2WG96SkxvNEltanYwc2szZXRQUnVqNlg2YVNqditHdndPZVRiVmlBbmV1RVVZUG5NU2RTWEcxSkVRQUFSakNHWXl3aWN4ZThDejFjblBDbVMxNGZhcHYwa0E5cm5yNUpNRHRON0xxeDZBRjNkNmRjQmFRSi85UURwSWp6R2dUMmlpV3FiejlKSkE1bUFyZnpnZWxyUGNScENPOExoY3h2Y0g0bkZnRC8veGxNRENWczR0S2d1dVVVVm1kQUJaa21GU01Hb015c2dkLzkyN3ArVVRkUitpdW5pM0UwZHFyMHR2SFhvTWJsOHN3cHk1K2dGVGRqb09BZzl0S1BmTkxnWGI0elc5eEZSU3JOaTN6M3NQWWdscDJUR285dE9QdWxLRzcxYTdSS2IwUGpMbm1Bblh5cVBFdzNBUUU4blJrNjBGaURRT292TVRMU2hQcktWY2FUaUZXQ2dXOU1seTlSbW12MmlZWWsvZWZuTno2bDQrelNNUk9meFlzVFVPM21IeFN0a1F4WmdvaUU4V016eHZqOHlhSEs1cm1yY3I2cHJPNnVING9ZK0k2SDVTMHV3ckorWm5kTWtuSWJvaUttNTd2d25SMWlUc1pGeW10MEFEVGtLUlFjQXl3eWxFbWFRZEttK1RYd05zQUt3eldTRmxwQUE5N2lodzg4VjN5YVN4Rk9vWC80Z3FrcVFsUmVvTTlJYmZvUWhZYkZHUnQxVU9leVYyOWszN1orQml4dFVzbWZ4RGQ3eW0yQ0hIN2tnNEdueEdBOEYvN0NIVHBWemgzYzZaaDNqUUViSDJ5dHJobUZvQWpTL25FdXpNSGtsckJ4ZFBoYUpuWDV1Vkg3bzRFUHVKQjBKWElNTDd6bU5HWVYxNkN0Z2NYZXpHT3V3Q1BSL3UwTWJDdFFYSnVsMEplSUo2NHFvd2FER2dXRW1HNVJXTWpTZUFrL0ZFRU41Q2h3TDBZNXQvRWhoR1NwMVViWCtDMUM4RWxTNWc4RWQyUTBvZHhZWjNpTG96ZEJndDFDamgxb1BOMFBna2dONG11WXJJeGQ4Rzl3NGFqY1NhRmZkb0swSGg5ZkphR2tiaUp3MFJ0cTQ0MUNaK3ZhQUdHWlNENW40clFuNlFkc0kyVFRpRGZwazhOaTFYWVdOZnVZR0RJRVhHWkVrVDczS2JoTEVRcXNXRmF5WG1rVmlGN0FYM3ZMMjRCeUxkUTdHRmZhVW1zenhUejhMeWIweGFNOTZndFJEdWRJaXJMKzVkZWN5djJ1MnVTNTRRQTZRUnVQOGtvUG4yaWltOEFFUitaaXJjM1p5YjVlV0V4L0w2cW1XMDU0aktCMWRjNGNYcU4xcUorbU1YM2VEa1djNHAxWXc4VlQvZTBCUUdYK1VtRDN1MDVBOWNCcERzOWJuM2NYbEhNVHJKUFdXc2VLMDg4a2FIdllzRlc5OXJNNEJaK1cxd2R5SVh4UmI2NnF0NGc2YXdhQkhqRHNQbTZnZjBTRFJjdTJ4WmpFVTVsUGtrbGVKdzN0VlRKRSsxRXZjSG05dEtrNWRCUzJpSnd2MnNmeERoYTFxLzVNNTNUWFlOblRLeksxYjk4T29nbmFWRStDS1RhbWk5VTlQYXpZOVorcktuWTBLeDl4b2Z0V2RsUDJ3TXoiCn0="
}
}
}
}
where action_result is base64 encoded string that contains JSON action result object provided by the client app SDK:
Response
{
"details": {
"threeds2.challengeResult":"eyJ0cmFuc1N0YXR1cyI6IlkifQ=="
},
"paymentData": "Ab02b4c0!BQABAgBTSQbui72ia/Pt2/BvrETplEE7eEu8bY0G45qYfIyNmOscC/SGzORhsz6FL2eSszivxLP7uslEuukL1DFMe+bxFyHNUIAJ4bzYdK1pHgZZLJwCWSdVMw6YFwAynvPIXEc3iTJRdwKJCqV4ulinN6WROZoqWCp1sKN4xyb0msW3HABSbYM/DfKev65BsSLpv66QQ00dwrOESDvdJO3KyvyZHOyw3q9U5CE+pkfWBI/vnwZ0/Sr6TiK2OLWb+NizIt9QOFJcbQMBpUruJhERX6ii6HH1GWVI88JE5kUjHlPbLbmmNxH3NpHC7DmWy3D5iHUpw7/74yTONHEh79H5Pm6PTy6M53Ab98k1AXXavpj6VDanq2xVNhWTXT31EKLhAHrfHMudUkk9C5Po2j3f9tQvZXnuV9M7k9E885lGL06GnowlxgYO10qxir5J+/Il2lzXgL0se4sR2c6E7JvloMyH/fy/XQuyUzgeV2SL6wrqILjzPIQT1zMeYm7fRd3L6Gee5m1gmON93H4Oj93aE/VLJYedAXHFLleS81eGqMORG5jDoaRBQDFB7c8v4LOthuV9J2t/MKuI8rLAwelYdGyWeRj4E3P7uRqxWTUSxFSBQJLghlz8UmWuuys7gKFN+reVvZwFGJsf/ZO/WPqs62vfpwytemY1z+uyX6wNjzlPOxBQc7cL6bcm1r2NXX+gI49QAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifWFs4xMR5AdJtkVefMtdHpuUhlvkMVCPt+zD9hcopMj13am52dXRlwm0G03zzzpVtBWPfgQRzXBAbf4ulqwMfUvYd3JdjuOniF8HDmvLSjWSBZexF8M8EXG0c35rel52Y0VhIbn09cS6YX3D+pX4qlJ5j3GW7dwTeMaUT+wG3Bre380Jib5Ds8g5bUlKjpio34ifQ8CGj0fiRZvXcnk9NgabEmFqBeWTTjLNbnFaV32/9evCCqPLXVGUZ4f6l2Fyc+tAQl3FqP9RxJetVF+kHg9my8ViVc+UjiLB9QTZLVdc9XrcAlQBAC1Z2S0SNz3jdx7KdPNigSJsIGiyIjwbpKm3Si2yWjrfB1xSg7SimKj487dHpl1w0NU4X7F/uLCcGDbTD0IoycsBg6g+tNfJyw19Ww3zlb84R3c6Lm1taNdXqCSXxBzE8hKMn0HfjBRJFfU73rXM/mTwhRbI4dKe0w/O9oWvAR4MHhRrHdihPLnSGdlOGRdTjnkzC4EHPsNiJmJ/1YTq1J5ABsL0gzsWrKmsw9bNtj1qbDFL049fppF8cIYicg+SOSxwT4InlSl6H0ZZzkKafGFzv6I03fVE7RJRSqTadzRPKQl481j0rqIMK9FHxOnx3DiU9REmSBz4yxY1bsPYF0gT3XQ7X7K9CORqb2+67ZgxGyHASkqV+Wes643P0ykbN+qxtj1wGLU+VJ5XFsB6ONN+tMQLF4UOHXpKEGes+id0ZjRwmqo71/qjiengfyCh7s34Sg5DKjb7Ctegx1JRxV8ROKbQJU+25QPq45lgCw2pvDpBKpvtaujfrWmmkt9/+fn3U+DXlUEwBmnI7i6NXzZa4qGampC9SXabU0cF4SIH2iPkL+OQQgKZM0yTAaPqo9LJiW4zczZ3hzPuvDpppGuQsjcyNLXYAnIQGvPYXyeSH5ylFgCEPUtfdE8TD4g03TDoE+tKLlhMPDRREbK55nI7DbT5S0z/nwjdFjnrgbmDZnBrC40yJZ8+i36HGCDL6mo25iQLOECNjHEDHDQ7QDFm89OwN8BECm2WyfxknmJX5GEmsrhqchbcHFdM8F0uYek9+PGMYvNo2efBvxecIehCJaQPeSgM9q8A8VV1qw57+le60qLjZAhgKlOqgXHhp5qRkbKnSJVRb31hLRAQhaAYXUpwy/SZ3atdTdnJwrBn6Rfp4UIkWZGjoxaW9G/+YLhKZ0AscQRgxjwW4m7nf/xJZ2sB3uZzFuxmrbLq4TffTL0Qj9IQwWsQqVBlSmzv09gx564BPMZ6T8G1skYrztEe/W5poauJBJQd5SYilGyx4iK7kSdJoeahENOrFi8R8XNC4oxIneB5TrbknD1+Wzbnq14tb8tBbKnwOD9tL6UxamoM1amoR3BEqRgF94pR9zMUOeQK44Ui++AorlvbjtzFcGg7NLxpc5JqJTUpgIVWbv6cHHmygY8lp8c7QO/EKDAjtBvsg/55iZqh2fPdu4K3wcX0693qiZvgzwt6z7NJhfioHtOg6vac90ol97ZzaOyXg8KtkSPnNXO2qKIqVuaKVZUldTXZ3Xk6nR8LXwYDw/uyfX7v3ZI2IVjYONQgP5sd2SldCfrmdhmix2T0pE7Nf6DdiLk3e1Rbc9ikXkFxwxtP9TXONoMhomTy6mlTTMfAukZvru/TX5+joH0a48PoKgtJ/92oi8vy8dLMS3HsG0dQnUL+/MWgT23+DG+91qAVrEwrEHxA009W25aIQafXxyZGs1txmFNCVzcOfrs2Q9ENcMmUA4ksfPM8UcczqpQ+DYYbL0rcZAqtr5UPDe+cb4BWTHWuDUu3yczuVU12XLXlO/5XJqYvp0VO7XSc/ei3m6kul7rkQOmROZBALkwX8UGoYEDGVEYic2+aJyQlZwdgsUXDwW7CJu/f5PE93REyyehbK04abRsV+TiKZ+/HPS5UkIMybXQcDoG5udAAIEhVMVuWRTb1iCHksS0ieVWFE28e8JeAvopYOSG48Ji3+n+w2Dp2LXS8+J8I0dpX4o3nc41CG82SRjoECyXujeCQ9dvzp9XFsNHWKNqxS/4kmUQJCyX7Q/YcSBTFp7jeYAM6Oq/xD4RnHQ3lws8jRvIN9BY12zhtrsG45FaI0owUkaPRUbG41WM2RJA9z1TC4wcTOqDK55wsX6kgu5K0+L0jalbcj3qLmG6nu9nmHn92xlVbyofFW9r0NfQOvEMzuqTOqVqUToD3lX+R8p8ElPEelf2x5fh7LkqOXL42vsAvZjRRSBSHMq2loKV5her/E53OwpiQpv1EMUebAgxlBQ2DT1/kpw6kM0RyFWz5PVWVinz7MMlGwJf7M+wwYp0RKlLSjSccCwrYiD7+ZlhGVoU2sWzU1lQNcKgPBAb4qm1rJfrDzqDocajg09/A+YmFhdebrlTeveGr8obuS77l1eaIcd6mjpT1iRCWM/pf5eHDmxbZZPNqbnMygumih9rSSswZOsgxcskpJQULbIBJonXaAB3veDS2jkmRs01KGHDhGOo0pKmhOkx76TFbvR0ITu+LR/1mHDAUWc8RYxLYbpVqYhPOLl65ZDJN4v3/siK3hwyAXakfmZzriBHX8zMu/sY0QCz9XLIhezMuUCtu3vN1tkv6TcLzSb+AzmMl8h16gB/aqffIuZdF+5NVF6WUoWzscboRTEjOIwnVa2n7jH/tlnM7uUFGGS6ZUfZVSkz9RVbON4f97IQbN8p4ZKFdlz+ZdkR/60pQnhHV0Z3BTeOlAjhsjpixa8MUEMdPAsrWTJZQJWIQSgzpgLEe5QcuIPhTlSHBJ6lucR8d+1LwrgyaOm5HOEea5rugUDbZq/yPSYMH0PEHflx4P2/FJTX9AQRRiasypyIN8OPDhoyJz6n0iLoasK/hcQ7nzJ3NglYkONGA4WvnutmzarsAkOkL0Z89OH0+t31DaneF/secb4vzNQbV5FxBZikn+cwTz4KZrgB2iHpehL3IxD9SH6WCvBpje8u5aeXGYhql4jE9eq65WrvBbtv6gqBdqL26Tccvi3omaP3d0cjNXmSkd3MnBG1UPIO6rn9sMqBCTlUVXsDP0BvmFCeYMaRz6ZGQHRns+nFl4uLSRhKgw4y9K1ksqxXM8IZvpET0J9c4Rikj5P0R1mEwUM8y1iAD6JxDHJPZYH9ETLfJS3ELpko7th833/GCKd8ZMtEkKrRW7L5C4j/E631w6Rke0WQzcWpv/IXjfXicbZJMn2uVaVOFTag6Gs+SBHJmu/PrlLmlByy68tYbB/mxM19Y35ZuPEWIyT9qEwmKG9itVzlYqr05geC3Wd2+ls+TPx2/CxvdrnEUrtuokgHazniV/LpkKW+Rb0CqiaDLBdmoTrzoyJtMVyB7DDzoL4ZXGfxVWfgeUMVFy8UF4Aj9OQGvoiaFwj43Mq6ssZO0AIoIDCuMnNQPb9GhV6BCGL3rwWLb776J4N7yLED/K1Rtnul1SczuAdqeeWeUldlSwuH/Adalol47NIsgs7JlUd5kFkibfHWZsnE360q3YGA+oDc/brHcH8S1CRQlU8xkPTTvkdFYYO9GjQXgqZGyuxvLZQbvZd4FXLCN+0aRmjOkqqd//hWYzDfXwaVCZp5c7HTg7DF9nAcayv9esj/40o//NisQxLw0bmY1oZ4GkLUqLqapP6tO4L3Z+vKWt7YAt+ifriuqCA157UYJtcDGSZZw7G9/V6up0ZxfQZ5S6RilbL+aTQNxkKRhF37RL8r3SzGGb71vZfwnZMJjzoBRbfCLjBzEGCfpVJ9SE7jFaPj0dmU6EHErq1hr833A6BZXI4fH7fs0ga+3cj9tvh+tKkQ+Eio8gFCtolEvxyJCI51reiKhjQVDKHYkndQT2b2NXlBkjXf9Em7+ZTjRgpdYQl1Axg7Mr6uAv+awOYp84e6NR4UxTE2bRcpvK2nxrMYlrt1W+sOwU7YvtdpVqFZjxHawYpWKcesV9YcPG4ghoyZQkIeyLsac0AlX22icZgtvIDcpegpmgMv496XozJLo4Imjv0sk3etPRuj6X6aSjv+GvwOeTbViAneuEUYPnMSdSXG1JEQAARjCGYywicxe8Cz1cnPCmS14fapv0kA9rnr5JMDtN7Lqx6AF3d6dcBaQJ/9QDpIjzGgT2iiWqbz9JJA5mArfzgelrPcRpCO8LhcxvcH4nFgD//xlMDCVs4tKguuUUVmdABZkmFSMGoMysgd/927p+UTdR+iuni3E0dqr0tvHXoMbl8swpy5+gFTdjoOAg9tKPfNLgXb4zW9xFRSrNi3z3sPYglp2TGo9tOPulKG71a7RKb0PjLnmAnXyqPEw3AQE8nRk60FiDQOovMTLShPrKVcaTiFWCgW9Mly9Rmmv2iYYk/efnNz6l4+zSMROfxYsTUO3mHxStkQxZgoiE8WMzxvj8yaHK5rmrcr6prO6uH4oY+I6H5S0uwrJ+ZndMknIboiKm57vwnR1iTsZFymt0ADTkKRQcAywylEmaQdKm+TXwNsAKwzWSFlpAA97ihw88V3yaSxFOoX/4gqkqQlReoM9IbfoQhYbFGRt1UOeyV29k37Z+BixtUsmfxDd7ym2CHH7kg4GnxGA8F/7CHTpVzh3c6Zh3jQEbH2ytrhmFoAjS/nEuzMHklrBxdPhaJnX5uVH7o4EPuJB0JXIML7zmNGYV16CtgcXezGOuwCPR/u0MbCtQXJul0JeIJ64qowaDGgWEmG5RWMjSeAk/FEEN5ChwL0Y5t/EhhGSp1UbX+C1C8ElS5g8Ed2Q0odxYZ3iLozdBgt1Cjh1oPN0PgkgN4muYrIxd8G9w4ajcSaFfdoK0Hh9fJaGkbiJw0Rtq441CZ+vaAGGZSD5n4rQn6QdsI2TTiDfpk8Ni1XYWNfuYGDIEXGZEkT73KbhLEQqsWFayXmkViF7AX3vL24ByLdQ7GFfaUmszxTz8Lyb0xaM96gtRDudIirL+5decyv2u2uS54QA6QRuP8koPn2iim8AER+Zirc3Zyb5eWEx/L6qmW054jKB1dc4cXqN1qJ+mMX3eDkWc4p1Yw8VT/e0BQGX+UmD3u05A9cBpDs9bn3cXlHMTrJPWWseK088kaHvYsFW99rM4BZ+W1wdyIXxRb66qt4g6awaBHjDsPm6gf0SDRcu2xZjEU5lPkkleJw3tVTJE+1EvcHm9tKk5dBS2iJwv2sfxDha1q/5M53TXYNnTKzK1b98OognaVE+CKTami9U9PazY9Z+rKnY0Kx9xoftWdlP2wMz"
}
MENU backend again submits authentication details and paymentData along with threeDSAuthenticationOnly: true to the Adyen API /paymentDetails endpoint. Assuming the user has completed the challenge successfully, Adyen API will respond with resultCode AuthenticationFinished and no action data. MENU backend responds with additional_info.approval_url and additional_info.approval_action set to null and allows client app to go to the order create step:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": "8e5b0340-42bd-4eb8-b06a-836f28fb1f73",
"payment_processor_type_id": 11,
"payment_init_hash": "0a96e241ae298d94a1d771a3fcf204b2",
"additional_info": {
"approval_url": null,
"approval_action": null,
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
3D Secure Redirect Flow
- Client app initiates the flow by calling MENU API /payment-processors/init-payment endpoint, the same way as with the 3DS Native flow. In case of a web app, browser info should be included in the initialization request body too as well as redirect URLs.
MENU backend sends POST /payments request to Adyen API including threeDSAuthenticationOnly: true parameter that instructs Adyen not to authorize the amount, but just perform the authentication. If transaction resultCode in the response from Adyen is AuthenticationNotRequired, no additional authentication is needed, additional_info.approval_url and additional_info.approval_action will be set to null.
Otherwise, if transaction resultCode is RedirectShopper, further authentication by the client app is required. Authentication action specific data is returned from MENU backend to the client app in additional_info.approval_action attribute and should be processed by the client app SDK:
Response
{
"status": "OK",
"code": 200,
"data": {
"payment_processor_id": 242,
"payment_processor_type_id": 11,
"payment_init_hash": "3f6918cd84a94e84fcc24941a11d4009",
"additional_info": {
"approval_url": null,
"approval_action": "eyJwYXltZW50RGF0YSI6IkFiMDJiNGMwIUJRQUJBZ0E3VkpwODBwc2M2R3MrSm5rUmMxcDNVUk8rdGIxWisrTkFCS3lNUTV5Y211UkdDV09Ka3krMVc4UThLbHZCc0dZR290ekVFTjJWVDd0QTcycitrR1QxK250MHRjK1c1anNTNFlCUFZLc0d6QWJVSWhMc0YzTmg0R2pnSnhManpoekpcL0xESTVjUzZMZmpncndHQ25SRWRNelwvd1wvQkNVODFuaTNVRkRGenZneFZuSjNkZ3I5WUtmYVU2SG83bzg2RWxoUGpQVWNzcHIrWXhlZG05ZEJOSGJLWDBSVHNaNzR6N3BaKzdvZlBwYWE4N1d6YTZVdnBDYjZnUjZKS0dcL1pkWng0blhvaUIrcVB2VFJUcUxmMVpsWmdHcENSZTlyRE5zRE1pYjI1U1cySWhPdkFrYzRTbURmUStFNXFBZDc4VjNWUnRSQlBZU2dXVnUzZ0F6aFlwZE1DcEluWHFHeWRuV0JLdzBOYXRYQ2RWalgrWTJySkVONytoXC9tb1QxSE9nZU5LVjBVMFRPVXBEOGJkZjZjSk9NUmhkVTh6aTJZZjgzT2Q2THlnaVlCOFwvUFlDUGhrOEFoOENYYkd0Z2xkcTVQSHBQMVNFdFlLeWNCb2lLK0h2WmNGdFJUMzNFWTJKTGxnZXU1SnQzekZKdWhlQTRSOEticlwvVXhoeXNrZTRneHR0enhYVnZEZ0d0KzhMQW1FUVVkQ3ZWTDBrSVFOUXlcL0lRcmRGOGlFMU0yVVZ3NE95RTJWU3VRcWl4RlNNb1M4QUxHb00yNDVUYW9LNlQwZzczMWVoZ0pMQVA4aVI0bWhcLzgwRXd0WEdTeFwvK1JwZEVJS1h0TkFEMktkYTNVN0VYejgzV1lhNkoyK3pcLzdcL0M1MjVwSW5EbXJYWW5mNFwvUmxMc0lyN0lUR2JDMkJDTUJKZnh3UEx0dWFyaGpRMElTN2taQUVwN0ltdGxlU0k2SWtGR01FRkJRVEV3TTBOQk5UTTNSVUZGUkRnM1F6STBSRVExTXprd09VSTRNRUUzT0VFNU1qTkZNemd5TTBRMk9FUkJRME01TkVJNVJrWTRNekExUkVNaWZRS0Z0WDQwRmR1cWlDV0MrcGNnbGVLQWZRNVJFMnRPQ3NhZGVNdWFYa0FLXC85ZThic2xOb2pDWGZua1dJU3hySjNkeWR2K245KzY4VHVpQWFPREQyYVhKb2RnMWxraE1jWVhCalwvcHZuM2hjQTV5QW5SdTcrT1d4cjMxYUJPMVlRV1FZM2d6eWd0eFk5d3grRWZHSjdlSFZITmVEaXh1cU1Mc0JCVGVuODJ6clh1NHhacEtXVnZ2VEt1STJKUXlQM2dtUVNMXC9ZZlJWeEJyN1wvR0ZidE5KSlptZFVBRStabmhNWWRJQ1ZyMHNEOTBPQnhxWXRjSlRIWWZyZ0NnaTN3VEprVWZXT2lSeXpxK0RhK0VZRDJ0WGR3elY4OTlDQjdVTWo3YlZ0NDQ4MU5tNTBUZHVYWHNpelhUS0ZTRHM1UkhxM2JEOHNyZnNmM2E4amx4cEQ5MkJRTSt1aHFxZXdaUUcydGVRMHhrTjFnc29UZXE2OUJNSzJSTFZxaStFYmN0K0Zxb3VLVEdxekZlVW1aRFZoTGc1b1dTOWdUMGl5c0ZaTjRUU25LdW50QWU0OGF2YXFYa1JGOFBBVEgwY2M0eEN5MEhoOEloU0JRT1lTblhQcFR3dzVtd2NZVm53QlAyNlwvVEkxRkxxOHRnTnYxSThiZXNmb0lFRG9mMFF4RGVRSE9cL05xQ1BtK1ZWQVg3emlKd2poSVRxaDVZSWN2OFY3UTdRY2lQbGlsdTRaUmFrRVwvN3Z4eU9KamhpaFdtU2hGcUVsbE83bmltUlFWS0xRYWJJNVwvRW5EUmFMTDRhdmMxdFM5WTM1eVdVRGFGXC9zUWYyNkhoWjl3VHV6OTJ3UHJzREtQVkNtYWtRZXlTd1BXREZ3N0Jhc1VJOHRQK0szRHMwcm9LSW5lYjVZMml3dmdhSUJMb283cUVDejRcL1ZWeFlpU3ZzTWhMcHN5XC9uRXBOMWttY0podzV2VlNwMVo1UmpWMmNmMWtzN0creTZRaU1kcmNLZDlIdVlwMFFWM2Nicld1eTFNWHRHakoxRXl2MzJORHdvMnhtSFJZOGt1NEt6bDIzODVWMUtmQ2Y3RVlWTDJoNEU5dkllaUNwN2FjNU4wUjRZYnM1OU1aZjkrOHZUY2h3Q0RNNHZEYVU0VFVHYjFYbEhcL0VSVVRSZkxPQXNTeURxcXRUNnhSUmh3ZGRDNnY0NWZkV3N0RU5SQVhJR1FyeDd6aVhKeXB0VHRROG51dUoyRWNZaytUXC9oSU4zXC9RMjhaUjI5TXBqbjhzUlNURnppcUhWK2JZMmtITm1ZelRkeU45MGJTVWlnaUhNZlNSbWhuS3RyRCs1dG85eXZSQUNJUUxvRWoyTFwvdnVVencySTNoTGVNRVwvczhjck03SHpEa2VDZ05XblwvMzFqS1RjRnhaR0xtR0JqeEtHY0lld0tLaHF0RkRReDJrVll5Ykp6anlTYmVLXC83OHZUQzUyT3FxdWRIYkZnYk5SRFVBY3Q3UkowNk1cLzBQVkZldkt5NFFkam9ac2JTNnRWcGdEUEg0Qkt1S1NvXC9wNXg2KzQwS1drUGg2KzBKd1I4TFpQSzZwOVhIYUR0cnlrZXBlODNIYUhCYU5SUlVCbXgwa0RNUm9KT1I1XC82ZFBvbjhNVE5EbVJVQXdhRWpSM3Y1eXRraVdxV1BhS2ZZdGRqRmlzK3d0R0RwaVZNMUU5dUkrVzhKVDlueFlSdmJOZkdqcnVCMktycVRad2pSZEtRTCtwS2pTSHZuNUxWc241Yzhvc3ZnWjF2MmF1c2x5N0xhdmk1c0wwY05cLzRWYWRRWkVidkw3bk9MNnUyb1k3OWI5XC9FS1lpM3dRSjhUQnBLaVQ0Zm5lMXp6MEVLeU9QcERPMWdqbmExZGhTRlNUKzV2M0pQRE5jTFRkWE1OY25KSlc1emg1NzI4eTAwRmhMcURmOXpkblhrNkgiLCJwYXltZW50TWV0aG9kVHlwZSI6InNjaGVtZSIsInVybCI6Imh0dHBzOlwvXC9jaGVja291dHNob3BwZXItdGVzdC5hZHllbi5jb21cL2NoZWNrb3V0c2hvcHBlclwvdGhyZWVEU1wvcmVkaXJlY3Q/TUQ9TldOTE1IRkZWM2x1VW5wQlQzWkdkVlptYm5GS1VUMDlJVnZqWW10Y3lKM3hrY0xmNnhrQjlENjFpSWlVcmRsQXJkMXVRcTJmSmxCQ18yUFNwOWJqbVBlZ2oyWVdyTVhxNS1kRUNWTWwxU0JHanlpQVAwU0NVbG1mV0NUMnlqZ012VUhxbVhULVVYdElHRE16V0hBeGxpUnpZVFFZUmtXVktVbXlkUm0zNE5mUmNoTnhxc3UyN2F3Y0JjNzNBRWUySXdWOFVQVGNTZnJMdy1jc0x4OWRaUmxUcEFfMTlQRV9qdjh0NFF6ZHpfM2NCSXk5cWptVXpNYUJvVWhGdmlJemVaRTg1Y2F6eWRoaVg4QlBZakpDLWtPVnc0M3NZWmt5c2ZSMlRUTG5KQWM2SjY2VEpPYmxoN3pTMElIaF9DYUI1OHlRTDRxTW1ubVhZX2hwNVppMkNOYU5fMXhDZ1hnU3hnNmxiQm85dUpMczhxTUdXZ3NmZExMTkM4d3VhX1BQV1BGUmM2eTU0RlB4ZVdtMEtnb21yUDQ0Qjh1Qm5zVVRDX0p4ajI2OFRFRWdFcGdrckx2dGVXZVpYVGVwWlplTi0tUjdnSlF1RDN0M1cxWVVkNEUxLXRqajVnWEkybGpXN2hzcXJaakE2T09HaHRVMWRzQlZ4ZjVnZHQ1Y2xiMHVtLUNIU0piUV9Kak9PbnBGRnNrRnFsd3RBeF9xWWtrSUpjTUpBX00wRkg1VS0zclR6dkl1TWk0Zml3Z0FBQUFBQUFBQUxZN05pc0l3R0VYZkpZdFpTYzNYZkVvaWlEalZFZndaZjlDRklKU1lKdE5JbTJaSUhKREJkemNMdF9jZTdybl9CTWlJYk9iZnA2Tld0ZXVhN3NmcU1GMGdpSG14M1pBZUFVeUE3Y0xvMHJfMHZYeTAyc1ZKRzB2cGZXT1ZqTFp6cGEzRzdDTmw3N3EwenNheWxxRWVNek1Vd0ZYRlVRclVISTFTT1FvRUNWQWhwU0lKOHJUdjc5ZnNMODg0aFlHZ2pJb0JBRTBYTW1ZLXE4UFZGQThkNzl2aFdSMldyc1ZtOXV0WDNOeS1kdXdZWmhiV2E3Y3ZBbm0tQURucTFvX01BQUFBJlBhUmVxPWVOcFZVdHR5Z2pBUSUyRlJYckI1Z1FFSkJaTTBQVnRqNkkxc3B6aHdrN2dDT2dBWXIwNjV1QTFqWXYyYk9YazkyemdVTXFFWmNmS0JxSkhEWllWVkdDb3l5ZWp6MTNhdHJVY3FmTXRoemJwUzlqRGp0JTJGanhjT1h5aXJyQ3k0TWFFVEJ1UU9WYmtVYVZUVUhDSnhlVjRIM0dDbU5iV0IzQ0RrS05kTGZzQ3EzdVc1THk1TkpsRUNHZHhRUkRueTBQJTJGMEYwJTJGZVpoV0VCeFJwVVo3S0pNUEtmN1dNMldxeDNRRHAwMENVVFZITGpqdWElMkZ3NmdrU2VlMXZXNThnaHAyM1lTeFIwV0UxSG1CSWlPQVhuMHVHdTBWU211YXhiejdUTDhEbzQlMkJWWGNYSE4lMkZONEppMCUyQjhUWFp3NUVaMEFjMWNnWlpkUXdxRHN5Ykk5WkhuV0E5SDZJY3QwRVg0WDdFVlBDVURYMTRJR3pmc2dmQUROMDVLOEhsUFFTQzlIeG1lT3FVZTRJOEhvdUM5UTFRSDV0SUklMkIyRjI5YWFGRXI3U3cyU08yNE02b3NSMHZlQnpSTHBwUXhLVFY3R2cyQTZGSnkyeWE1YlYxWiUyRjM3REQlMkIzVXNEQSUzRCZpbnRlZ3JhdGlvbj1hcGkmaXNzdWVyVXJsPWh0dHBzJTNBJTJGJTJGdGVzdC5hZHllbi5jb20lMkZocHAlMkYzZCUyRnZhbGlkYXRlLnNodG1sJnBzcFJlZmVyZW5jZT04NTM2MDQ4NTI2NDc2ODBGJnNpZz10bzQySkIxSV9IV2dlSm9XaGRDcnZkVDNfZFN6MFZ2WC1PWFQzWTN6MG5jIiwibWV0aG9kIjoiR0VUIiwidHlwZSI6InJlZGlyZWN0In0=",
"client_encryption_public_key": "10001|A3795C2E0A78E5FF639AB006428D5EC19166AF82C402828476442E44476AE3DB9BE22468C15D8744574080DE5697FB81FBC4A0E0AB27B3B33A2739F20B1A514C6DCCBA3414E36F8056D4E1C007B6BF9ED5579A47313BDB651A3A984864E927B3A5D47CDA068E6A5C3AD76FB88A4173BC57EE672D421B13B3434F2D4B03FC250AAD86D64121A1760C83289EE7097A4643E493333ADE8373E9FB36A24F156C4B42D404879BBD8896705E0E91CD4F8BEC0E02A3F38D6EE275B6440F40B40E88B3D1B3292ABB331F9CB10E11D5AC81977ADCD0C22B7ECF009D608C651CC1FD7D4AA114B2130C6E82272224248B29CE4529DE93E5D010BD3976557067FD48E090B653"
}
}
}
where approval_action is actually base64 encoded string that contains JSON action object with redirect type is returned in Adyen server response. The structure of redirect action object depends on the client app channel, i.e. whether it’s mobile a (iOS/Android) or a Web one. In case of a mobile application, the structure will be:
Response
{
"paymentData": "Ab02b4c0!BQABAgA7VJp80psc6Gs+JnkRc1p3URO+tb1Z++NABKyMQ5ycmuRGCWOJky+1W8Q8KlvBsGYGotzEEN2VT7tA72r+kGT1+nt0tc+W5jsS4YBPVKsGzAbUIhLsF3Nh4GjgJxLjzhzJ/LDI5cS6LfjgrwGCnREdMz/w/BCU81ni3UFDFzvgxVnJ3dgr9YKfaU6Ho7o86ElhPjPUcspr+Yxedm9dBNHbKX0RTsZ74z7pZ+7ofPpaa87Wza6UvpCb6gR6JKG/ZdZx4nXoiB+qPvTRTqLf1ZlZgGpCRe9rDNsDMib25SW2IhOvAkc4SmDfQ+E5qAd78V3VRtRBPYSgWVu3gAzhYpdMCpInXqGydnWBKw0NatXCdVjX+Y2rJEN7+h/moT1HOgeNKV0U0TOUpD8bdf6cJOMRhdU8zi2Yf83Od6LygiYB8/PYCPhk8Ah8CXbGtgldq5PHpP1SEtYKycBoiK+HvZcFtRT33EY2JLlgeu5Jt3zFJuheA4R8Kbr/Uxhyske4gxttzxXVvDgGt+8LAmEQUdCvVL0kIQNQy/IQrdF8iE1M2UVw4OyE2VSuQqixFSMoS8ALGoM245TaoK6T0g731ehgJLAP8iR4mh/80EwtXGSx/+RpdEIKXtNAD2Kda3U7EXz83WYa6J2+z/7/C525pInDmrXYnf4/RlLsIr7ITGbC2BCMBJfxwPLtuarhjQ0IS7kZAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifQKFtX40FduqiCWC+pcgleKAfQ5RE2tOCsadeMuaXkAK/9e8bslNojCXfnkWISxrJ3dydv+n9+68TuiAaODD2aXJodg1lkhMcYXBj/pvn3hcA5yAnRu7+OWxr31aBO1YQWQY3gzygtxY9wx+EfGJ7eHVHNeDixuqMLsBBTen82zrXu4xZpKWVvvTKuI2JQyP3gmQSL/YfRVxBr7/GFbtNJJZmdUAE+ZnhMYdICVr0sD90OBxqYtcJTHYfrgCgi3wTJkUfWOiRyzq+Da+EYD2tXdwzV899CB7UMj7bVt4481Nm50TduXXsizXTKFSDs5RHq3bD8srfsf3a8jlxpD92BQM+uhqqewZQG2teQ0xkN1gsoTeq69BMK2RLVqi+Ebct+FqouKTGqzFeUmZDVhLg5oWS9gT0iysFZN4TSnKuntAe48avaqXkRF8PATH0cc4xCy0Hh8IhSBQOYSnXPpTww5mwcYVnwBP26/TI1FLq8tgNv1I8besfoIEDof0QxDeQHO/NqCPm+VVAX7ziJwjhITqh5YIcv8V7Q7QciPlilu4ZRakE/7vxyOJjhihWmShFqEllO7nimRQVKLQabI5/EnDRaLL4avc1tS9Y35yWUDaF/sQf26HhZ9wTuz92wPrsDKPVCmakQeySwPWDFw7BasUI8tP+K3Ds0roKIneb5Y2iwvgaIBLoo7qECz4/VVxYiSvsMhLpsy/nEpN1kmcJhw5vVSp1Z5RjV2cf1ks7G+y6QiMdrcKd9HuYp0QV3cbrWuy1MXtGjJ1Eyv32NDwo2xmHRY8ku4Kzl2385V1KfCf7EYVL2h4E9vIeiCp7ac5N0R4Ybs59MZf9+8vTchwCDM4vDaU4TUGb1XlH/ERUTRfLOAsSyDqqtT6xRRhwddC6v45fdWstENRAXIGQrx7ziXJyptTtQ8nuuJ2EcYk+T/hIN3/Q28ZR29Mpjn8sRSTFziqHV+bY2kHNmYzTdyN90bSUigiHMfSRmhnKtrD+5to9yvRACIQLoEj2L/vuUzw2I3hLeME/s8crM7HzDkeCgNWn/31jKTcFxZGLmGBjxKGcIewKKhqtFDQx2kVYybJzjySbeK/78vTC52OqqudHbFgbNRDUAct7RJ06M/0PVFevKy4QdjoZsbS6tVpgDPH4BKuKSo/p5x6+40KWkPh6+0JwR8LZPK6p9XHaDtrykepe83HaHBaNRRUBmx0kDMRoJOR5/6dPon8MTNDmRUAwaEjR3v5ytkiWqWPaKfYtdjFis+wtGDpiVM1E9uI+W8JT9nxYRvbNfGjruB2KrqTZwjRdKQL+pKjSHvn5LVsn5c8osvgZ1v2ausly7Lavi5sL0cN/4VadQZEbvL7nOL6u2oY79b9/EKYi3wQJ8TBpKiT4fne1zz0EKyOPpDO1gjna1dhSFST+5v3JPDNcLTdXMNcnJJW5zh5728y00FhLqDf9zdnXk6H",
"paymentMethodType": "scheme",
"url": "https://checkoutshopper-test.adyen.com/checkoutshopper/threeDS/redirect?MD=NWNLMHFFV3luUnpBT3ZGdVZmbnFKUT09IVvjYmtcyJ3xkcLf6xkB9D61iIiUrdlArd1uQq2fJlBC_2PSp9bjmPegj2YWrMXq5-dECVMl1SBGjyiAP0SCUlmfWCT2yjgMvUHqmXT-UXtIGDMzWHAxliRzYTQYRkWVKUmydRm34NfRchNxqsu27awcBc73AEe2IwV8UPTcSfrLw-csLx9dZRlTpA_19PE_jv8t4Qzdz_3cBIy9qjmUzMaBoUhFviIzeZE85cazydhiX8BPYjJC-kOVw43sYZkysfR2TTLnJAc6J66TJOblh7zS0IHh_CaB58yQL4qMmnmXY_hp5Zi2CNaN_1xCgXgSxg6lbBo9uJLs8qMGWgsfdLLNC8wua_PPWPFRc6y54FPxeWm0KgomrP44B8uBnsUTC_Jxj268TEEgEpgkrLvteWeZXTepZZeN--R7gJQuD3t3W1YUd4E1-tjj5gXI2ljW7hsqrZjA6OOGhtU1dsBVxf5gdt5clb0um-CHSJbQ_JjOOnpFFskFqlwtAx_qYkkIJcMJA_M0FH5U-3rTzvIuMi4fiwgAAAAAAAAALY7NisIwGEXfJYtZSc3XfEoiiDjVEfwZf9CFIJSYJtNIm2ZIHJDBdzcLt_ce7rn_BMiIbObfp6NWteua7sfqMF0giHmx3ZAeAUyA7cLo0r_0vXy02sVJG0vpfWOVjLZzpa3G7CNl77q0zsaylqEeMzMUwFXFUQrUHI1SOQoECVAhpSIJ8rTv79fsL884hYGgjIoBAE0XMmY-q8PVFA8d79vhWR2WrsVm9utX3Ny-duwYZhbWa7cvAnm-ADnq1o_MAAAA&PaReq=eNpVUttygjAQ%2FRXrB5gQEJBZM0PVtj6I1spzhwk7gCOgAYr065uA1jYv2bOXk92zgUMqEZcfKBqJHDZYVVGCoyyejz13atrUcqfMthzbpS9jDjt%2FjxcOXyirrCy4MaETBuQOVbkUaVTUHCJxeV4H3GCmNbWB3CDkKNdLfsCq3uW5Ly5NJlECGdxQRDny0P%2F0F0%2FeZhWEBxRpUZ7KJMPKf7WM2Wqx3QDp00CUTVHLjjua%2Fw6gkSee1vW58ghp23YSxR0WE1HmBIiOAXn0uGu0VSmuaxbz7TL8Do4%2BVXcXHN%2FN4Ji0%2B8TXZw5EZ0Ac1cgZZdQwqDsybI9ZHnWA9H6Ict0EX4X7EVPCUDX14IGzfsgfADN05K8HlPQSC9HxmeOqUe4I8HouC9Q1QH5tII%2B2F29aaFEr7Sw2SO24M6osR0veBzRLppQxKTV7Gg2A6FJy2ya5bV1Z%2F37DD%2B3UsDA%3D&integration=api&issuerUrl=https%3A%2F%2Ftest.adyen.com%2Fhpp%2F3d%2Fvalidate.shtml&pspReference=853604852647680F&sig=to42JB1I_HWgeJoWhdCrvdT3_dSz0VvX-OXT3Y3z0nc",
"method": "GET",
"type": "redirect"
}
while in a case of a web application the action will be somewhat different:
Response
{
"paymentData": "Ab02b4c0!BQABAgCtmBzZSad9Vy/wCQKl/BxLRYyw3I8iztNdJingReP17vUAYrXZOGI2qgaljTl/1w7UAiTeMItkbtYO7rOIuWrgobr0DqAGDO4xvW8sLgxWVrQa/+kE17FyqeXfwjHIrGdYgPnlr30meg48anYgNT32g0es3+CegDthoXdw5wwZSAQ/uH/i92xlfBoMGZScXS5J99ZmtZYhj7BFTOoZq1W4WtCdxTCLGqCtnq0qXIivIfURzyZ5RopVlODognisFuBCyITTXZpjjtmE5vmAyR0biAGPshrM9ODahFR/cwdylkCYnVZ5vwUC1j4ioB2i1fT6WG4GvEocPKL/haAyqnDVFAJAQUB09OQvNrByaLCAWEO9VJJLK8STzApBn0F0/urPZ/Y+FuqzU07OU5s8Ym66bv11hzFAkS8M95tXfKAUen/2Hoau9ywEtQeEhSgUDkgB4OtggNHTPeK/Q1Dng9gjqzm7GdkUdLejQurrIHZI1Bqy2QVbrWSUX4TB9TqO+KegCBh4AWKfU5IOjP5b02Wrozzrb4caIIVM13CLMUyuph5d37CvFmIFnYxLC/6Fb63/x0jjHEiOqbXiFjloU/KOCanFtC/Lvnas2MbWKrqMKLATgTdB+NBEBQb9zAJnXlY9JyY1Q9vzJl1VXf7H7EqgX0Zwt4A2PPEXSpdQsUtFiRBbHa8VyvS57qBXYlAmiswJAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifXTzz0yuwLq3KGxCxo/EaPzSZp5gxlL+0P2RtkT1DT+/4wBBIPu3UGqN8J3xX9lDBJqOaNDyFBSISKGmo3eQy7xlXjowjeNA/WVenjhXgRECs1cpkLRiUr2wF8w9pE3VGdtB3qeghkQzPqu1g9Q55BEQQwWKKubFLIxBjUkxaVCWBb7rP3nGpJlPVfKbGLN+Fz9b9whi04Uk6UgEaXJ7o33T0Uh0m3SF4lkNx5nHLdeeMxvINT9i5srT3j9ttYRQQp6oAem3TtNv68SJPYw895sueZMY0Gdt1k60IiZ5+UpjUOj9L88tyBcFSJ08sJTfb1a/81HSFlQaoTiSPDWI1iHMF8wNFpufLhbs3eKswN0gHSkh0QXItwKStQR7+jcr5AQukcTpUE2LAo0CszOmoaKaSyAPQMXN+RlfEsQKVwv0gZbyWXvbGJgChpDMZyJZEbOQ7xSgL0Dw41kDckBrvD7g8xEuMrBCEvnt2hA/egq4Gs9NKSZAL2V0TQQuY35ABftUUOLI0ZRXhQCTKfpflIsHVI2v46mxfO/5rZ5Dz6Nnu07Zaw0l56fndsb1NOT9ZvfLpV7wTBnZnecrgSe+9ty1grEf+wdtKNjCuux2d34SQnNjT6VGGCENaN56qSZo5xCA/CEtD9x0fUyAzjEfuGDu7qt2ubln+mOIb83z9zW6SLLnAygTG6qhvfFVJcyxhuWvJLSb1PPQOfDA3rXKC27P4t7WZbFhFaJQ2i+1g0OA5k5Kiaus+n2PTLP8CkBbRrQnZdWtpAgqsh7X8bcEVoEHvHmODin4GyGOMRNR7AuzLRf+T0llysO7J7XHi+8o74HmasTc2O8Qr3+mg9e1JzjDR7+OtjJQ8wtQQHu8Wziq/TGdOGEpVlhqkW3/Uhh6h6MtmG2YV4nSx8AA9gEzJKLhyMV01alOQspC/XpabEQbnShnghTIjNGNbNEOTxuMGxG3ArIqpXd2que4GQILTstt2wqA637x1tNLtp2hB81r2scMk5moBcvxyCsc8ZDxpQRasZPe9EGlHuG9IOyXljuzD5zr0r+J+wGK/8w/IU02ZX6VDo1jOlvg6NMRep+AepUOE49dD0JJ8Pc4dpt00Q62ttJ1IChIa9QzqN1Nv/mtVez+q2KfbjU+7Ui0iVhbbTCjBYXYyIP7XG71rt1A66rYdfgnOCPxlY978vwpjGi5w3yjzoCeqQzHR1KMolBFfSzLDCZZMiUSeztSzfDmYvDcy4CeyTHKtwJtaLQDzMwyAofpkrV2vFR/j+yGrAneellX7k9Ah3bVfw+1r6D45yeZlK89JsyfTSvLQIFaKgoDUYByHLZqzfZ7jBNjngEsS7ygUpjWQjH/ksWhMLe2EYmlUMPro7te1TI+TjVhT4xHXh7UBwVtM2UzAmZEc5O5aBZ2ReiUQ8QDj2+7jf9qH6MGLWdzvHchCMV63nOSHn24aThbLFS8l8Pf0BudYGud6mZLVK8c+He6/5Z90xM9LJ8gGYUWCgS9CYL8eB35exsN685E9TcF9WGnQcC7zs2quho9bZQymEYaW2FyuNB0rvnfBbDSU/ax797HgUJTpoHGCxdjpx4g22tlDXTN6FRAej1U7tsVNy+F1KKdJmnbrBie/uNRZtvoMcHGUjNbewbmSeGjn82bwDZRTYAVwEHcUjO4Z1nvmq/vCUJtNZmqcuebnCpKQLJdG+/A2xLxDqoAUXaPbYjOwzoyWcJ4IzP8sJz2cTeeMcAym06hnnzqD9sY0oUvaSbINKLwCGqbdaDJ2REosGQYaH1krKX8UgLlpeWdONVsNxRLgbKy37/ILEgX9yIdnCl8eIaesYjCC/Fx2+Ggq/y+Wr3J0BNMVzGx/wEsC6hIuid+IBNvQLGLhy3HZKUm2OpktZbL2o/cqpJAY/3XBRawc0CE0Tgxj3PC52H4AuqDcpvKLZMiqQbcbGF+eMweM0EE8HIpHygZIRz5Til/pWZ8qkQkbrTHN69qjnmK/SueMxfcQKw2XlkiO39oyzAos4kuCzGKQ5wYGdz+az0G9UfOOxRNp3Yvg6m86spMsnyS+5X/FjnHef2+v1aCpp94JmgL/m49bH1QBnm/BYIgcfTosdk2ZHwD+uCMopozjnBN7ZeR38l2z8Gwf3Omo5KOvzLURZt/HDMwNUn0/g7kG24cSRXX/vFmTbqS665pske33F7AYEYTo/MlGlL8JLGetmt9ShsDzH5ZdQGARiuLVcLnBuORz8k9+ZePee66RZZ+rzg0UxgJuJqyOu9n0A/NHqo6ScjukAtmdoIiYhPopocFcyLoQmUK1YQmzbYWBEj6R0RQRiqLDKvJCGOigrTmfrZgy62AcDSxLRbil7Bwo7On+wdGTG9WtfXr8bYficPxolRXBjazNsVqEMXqrBhE1CtSKX/PZqtDuwI=",
"paymentMethodType": "scheme",
"url": "https://test.adyen.com/hpp/3d/validate.shtml",
"data": {
"MD": "aXNQaEQwWTA2OXEvdmd1T2s1RjVqUT09IZ2dstniaeTWdtxrs5KCLod0qWRjMoAMShdqxopQ8waQ7xFRxyu4LOGGbg4QNIVEScuE1gZAKOt4KJqn9zU5EiDPq9aaa3OzGfnegzxIGdpkgH6J63HhAtQ7v2TmFB0jvr2GcApLBJLEGmhuX0wn9qQ2XrqnlSzZDpKHfKB3NT90HdFeRGUjGcEeguYWk0-cXJmY8aJQzx7FIbKmnrB84B5fwspiKBsYHRcifkIjdKbu84smyuEClcoyfSPJnCpD33Yf_ls1N7rWTpJuqZ1gXxORFqk-Du5pMMt-8gUsSiH9EPd6Sde43JoKxElOG6fHLFCfxLts2spJizLjvPsbJaAse89Wf48O6Db4D-xBVqyryo7rmViRwzJxvTzpsKGRBkWqz2D0taDlByV-I83h_EQ8K3yF-re-OX27C6-sqGLfb2P0aDQP0bBKjGkhEXE-whTy4IoaY6ngnzinv5ycYLQlVSAWu_S3RG6BIIBWTLo5w5F6zj1muAcRhidzuXe3eBFasF_M4oVPlg",
"PaReq": "eNpVUttygjAQ/RXrB5AQEZBZM5OKU31AHZXnDhN2hI6ABqjy901Aa5uH5Jy9ZfckcMwUYnhA2SrkEGFdJycc5el8HPhT5lJH7z51qG+vxhx2Yo9XDt+o6rwquW1RiwF5Up2uZJaUDYdEXt/XG26ziTN1gTwoFKjWIT9i3eyKQshrmytUQAYzlEmBPBafYvEWRMtNfESZldW5OuVYiw/Hni0X2whIHwayastGddwz9Z8EWnXmWdNc6oCQ2+1mJWmHpSWrggAxPiCvHnetQbWudc9Tvg3jbvMlqDm3oaBReLofRL/mQEwEpEmDnFFGbZv6I9sNmBs4DpDeDklhmuDLeD9iWhiqpx4scDEXiYEw23j+WkBLr7CUHZ95vh7lyQDvl6pEkwPkFwN5tb1YGaFlo7Vz2CC158+oRp6RvHeYKrlWZkLppC9jCBCTSh6vSR6vrtG/3/ADWfivpg==",
"TermUrl": "https://cdba9bc946e8.ngrok.io/api/payment-processors/success?mt_application_id=3&mt_venue_id=2&mt_payment_method_id=1&mt_payment_processor_id=242&mt_payment_init_hash=14a0e0db71b3835ada0e06dcb573b856"
},
"method": "POST",
"type": "redirect"
}
In order to ensure that correct app channel will be applied by Adyen, alongside channel attribute, POST /payments request must also contain appropriate returnUrl value, i.e. a web URL in case of a web application (e.g. https://api-public-playground.menu.app/success) and and URL scheme in case of a mobile application (e.g. ios://payment). Otherwise, if for example, a web URL is sent along with channel: iOS, the response will contain web app type of action object that cannot be processed by mobile SDK.
-
Client app initializes 3D Secure Redirect SDK component and passes to it action data received in response from MENU API. The app SDK redirects then app to the authentication web page or screen where user is expected to complete the challenge (e.g. enter one-time password).
-
After completing 3DS authentication challenge, the next step depends on the application type. In case of a mobile application, the authentication challenge result, i.e. the contents of data.details and data.paymentData, is to be sent back to the MENU backend through POST /payment-processors/auth-payment API endpoint:
Request
- Client app initiates the flow by calling MENU API payment init endpoint with all the required data (venue ID, order amount, encrypted credit card data, etc.);
{
"method": "post",
"url": "https://api-public-playground.menu.app/api/payment-processors/auth-payment",
"headers": {
"X-Request-ID": "69da3547-204b-4093-a225-54e084c24215",
"Application": "f3a90488ffee32c3acb6fcd0ca417cf6",
"Api-Version": 4.38.0
},
"body":{
"payment_init_hash": "3f6918cd84a94e84fcc24941a11d4009",
"auth_info": {
"action_result": "ewogICJkZXRhaWxzIjogewogICAgInRocmVlZHMyLmZpbmdlcnByaW50IjogImV5SjBhSEpsWlVSVFEyOXRjRWx1WkNJNklDSlpJbjA9IgogIH0sCiAgInBheW1lbnREYXRhIjogIkFiMDJiNGMwIUJRQUJBZ0JUU1FidWk3MmlhL1B0Mi9CdnJFVHBsRUU3ZUV1OGJZMEc0NXFZZkl5Tm1Pc2NDL1NHek9SaHN6NkZMMmVTc3ppdnhMUDd1c2xFdXVrTDFERk1lK2J4RnlITlVJQUo0YnpZZEsxcEhnWlpMSndDV1NkVk13NllGd0F5bnZQSVhFYzNpVEpSZHdLSkNxVjR1bGluTjZXUk9ab3FXQ3Axc0tONHh5YjBtc1czSEFCU2JZTS9EZktldjY1QnNTTHB2NjZRUTAwZHdyT0VTRHZkSk8zS3l2eVpIT3l3M3E5VTVDRStwa2ZXQkkvdm53WjAvU3I2VGlLMk9MV2IrTml6SXQ5UU9GSmNiUU1CcFVydUpoRVJYNmlpNkhIMUdXVkk4OEpFNWtVakhsUGJMYm1tTnhIM05wSEM3RG1XeTNENWlIVXB3Ny83NHlUT05IRWg3OUg1UG02UFR5Nk01M0FiOThrMUFYWGF2cGo2VkRhbnEyeFZOaFdUWFQzMUVLTGhBSHJmSE11ZFVrazlDNVBvMmozZjl0UXZaWG51VjlNN2s5RTg4NWxHTDA2R25vd2x4Z1lPMTBxeGlyNUorL0lsMmx6WGdMMHNlNHNSMmM2RTdKdmxvTXlIL2Z5L1hRdXlVemdlVjJTTDZ3cnFJTGp6UElRVDF6TWVZbTdmUmQzTDZHZWU1bTFnbU9OOTNINE9qOTNhRS9WTEpZZWRBWEhGTGxlUzgxZUdxTU9SRzVqRG9hUkJRREZCN2M4djRMT3RodVY5SjJ0L01LdUk4ckxBd2VsWWRHeVdlUmo0RTNQN3VScXhXVFVTeEZTQlFKTGdobHo4VW1XdXV5czdnS0ZOK3JlVnZad0ZHSnNmL1pPL1dQcXM2MnZmcHd5dGVtWTF6K3V5WDZ3Tmp6bFBPeEJRYzdjTDZiY20xcjJOWFgrZ0k0OVFBRXA3SW10bGVTSTZJa0ZHTUVGQlFURXdNME5CTlRNM1JVRkZSRGczUXpJMFJFUTFNemt3T1VJNE1FRTNPRUU1TWpORk16Z3lNMFEyT0VSQlEwTTVORUk1UmtZNE16QTFSRU1pZldGczR4TVI1QWRKdGtWZWZNdGRIcHVVaGx2a01WQ1B0K3pEOWhjb3BNajEzYW01MmRYUmx3bTBHMDN6enpwVnRCV1BmZ1FSelhCQWJmNHVscXdNZlV2WWQzSmRqdU9uaUY4SERtdkxTaldTQlpleEY4TThFWEcwYzM1cmVsNTJZMFZoSWJuMDljUzZZWDNEK3BYNHFsSjVqM0dXN2R3VGVNYVVUK3dHM0JyZTM4MEppYjVEczhnNWJVbEtqcGlvMzRpZlE4Q0dqMGZpUlp2WGNuazlOZ2FiRW1GcUJlV1RUakxOYm5GYVYzMi85ZXZDQ3FQTFhWR1VaNGY2bDJGeWMrdEFRbDNGcVA5UnhKZXRWRitrSGc5bXk4VmlWYytVamlMQjlRVFpMVmRjOVhyY0FsUUJBQzFaMlMwU056M2pkeDdLZFBOaWdTSnNJR2l5SWp3YnBLbTNTaTJ5V2pyZkIxeFNnN1NpbUtqNDg3ZEhwbDF3ME5VNFg3Ri91TENjR0RiVEQwSW95Y3NCZzZnK3ROZkp5dzE5V3czemxiODRSM2M2TG0xdGFOZFhxQ1NYeEJ6RThoS01uMEhmakJSSkZmVTczclhNL21Ud2hSYkk0ZEtlMHcvTzlvV3ZBUjRNSGhSckhkaWhQTG5TR2RsT0dSZFRqbmt6QzRFSFBzTmlKbUovMVlUcTFKNUFCc0wwZ3pzV3JLbXN3OWJOdGoxcWJERkwwNDlmcHBGOGNJWWljZytTT1N4d1Q0SW5sU2w2SDBaWnprS2FmR0Z6djZJMDNmVkU3UkpSU3FUYWR6UlBLUWw0ODFqMHJxSU1LOUZIeE9ueDNEaVU5UkVtU0J6NHl4WTFic1BZRjBnVDNYUTdYN0s5Q09ScWIyKzY3Wmd4R3lIQVNrcVYrV2VzNjQzUDB5a2JOK3F4dGoxd0dMVStWSjVYRnNCNk9OTit0TVFMRjRVT0hYcEtFR2VzK2lkMFpqUndtcW83MS9xamllbmdmeUNoN3MzNFNnNURLamI3Q3RlZ3gxSlJ4VjhST0tiUUpVKzI1UVBxNDVsZ0N3MnB2RHBCS3B2dGF1amZyV21ta3Q5LytmbjNVK0RYbFVFd0Jtbkk3aTZOWHpaYTRxR2FtcEM5U1hhYlUwY0Y0U0lIMmlQa0wrT1FRZ0taTTB5VEFhUHFvOUxKaVc0emN6WjNoelB1dkRwcHBHdVFzamN5TkxYWUFuSVFHdlBZWHllU0g1eWxGZ0NFUFV0ZmRFOFRENGcwM1REb0UrdEtMbGhNUERSUkViSzU1bkk3RGJUNVMwei9ud2pkRmpucmdibURabkJyQzQweUpaOCtpMzZIR0NETDZtbzI1aVFMT0VDTmpIRURIRFE3UURGbTg5T3dOOEJFQ20yV3lmeGtubUpYNUdFbXNyaHFjaGJjSEZkTThGMHVZZWs5K1BHTVl2Tm8yZWZCdnhlY0llaENKYVFQZVNnTTlxOEE4VlYxcXc1NytsZTYwcUxqWkFoZ0tsT3FnWEhocDVxUmtiS25TSlZSYjMxaExSQVFoYUFZWFVwd3kvU1ozYXRkVGRuSndyQm42UmZwNFVJa1daR2pveGFXOUcvK1lMaEtaMEFzY1FSZ3hqd1c0bTduZi94Sloyc0IzdVp6RnV4bXJiTHE0VGZmVEwwUWo5SVF3V3NRcVZCbFNtenYwOWd4NTY0QlBNWjZUOEcxc2tZcnp0RWUvVzVwb2F1SkJKUWQ1U1lpbEd5eDRpSzdrU2RKb2VhaEVOT3JGaThSOFhOQzRveEluZUI1VHJia25EMStXemJucTE0dGI4dEJiS253T0Q5dEw2VXhhbW9NMWFtb1IzQkVxUmdGOTRwUjl6TVVPZVFLNDRVaSsrQW9ybHZianR6RmNHZzdOTHhwYzVKcUpUVXBnSVZXYnY2Y0hIbXlnWThscDhjN1FPL0VLREFqdEJ2c2cvNTVpWnFoMmZQZHU0SzN3Y1gwNjkzcWladmd6d3Q2ejdOSmhmaW9IdE9nNnZhYzkwb2w5N1p6YU95WGc4S3RrU1BuTlhPMnFLSXFWdWFLVlpVbGRUWFozWGs2blI4TFh3WUR3L3V5Zlg3djNaSTJJVmpZT05RZ1A1c2QyU2xkQ2ZybWRobWl4MlQwcEU3TmY2RGRpTGszZTFSYmM5aWtYa0Z4d3h0UDlUWE9Ob01ob21UeTZtbFRUTWZBdWtadnJ1L1RYNStqb0gwYTQ4UG9LZ3RKLzkyb2k4dnk4ZExNUzNIc0cwZFFuVUwrL01XZ1QyMytERys5MXFBVnJFd3JFSHhBMDA5VzI1YUlRYWZYeHlaR3MxdHhtRk5DVnpjT2ZyczJROUVOY01tVUE0a3NmUE04VWNjenFwUStEWVliTDByY1pBcXRyNVVQRGUrY2I0QldUSFd1RFV1M3ljenVWVTEyWExYbE8vNVhKcVl2cDBWTzdYU2MvZWkzbTZrdWw3cmtRT21ST1pCQUxrd1g4VUdvWUVER1ZFWWljMithSnlRbFp3ZGdzVVhEd1c3Q0p1L2Y1UEU5M1JFeXllaGJLMDRhYlJzVitUaUtaKy9IUFM1VWtJTXliWFFjRG9HNXVkQUFJRWhWTVZ1V1JUYjFpQ0hrc1MwaWVWV0ZFMjhlOEplQXZvcFlPU0c0OEppMytuK3cyRHAyTFhTOCtKOEkwZHBYNG8zbmM0MUNHODJTUmpvRUN5WHVqZUNROWR2enA5WEZzTkhXS05xeFMvNGttVVFKQ3lYN1EvWWNTQlRGcDdqZVlBTTZPcS94RDRSbkhRM2x3czhqUnZJTjlCWTEyemh0cnNHNDVGYUkwb3dVa2FQUlViRzQxV00yUkpBOXoxVEM0d2NUT3FESzU1d3NYNmtndTVLMCtMMGphbGJjajNxTG1HNm51OW5tSG45MnhsVmJ5b2ZGVzlyME5mUU92RU16dXFUT3FWcVVUb0QzbFgrUjhwOEVsUEVlbGYyeDVmaDdMa3FPWEw0MnZzQXZaalJSU0JTSE1xMmxvS1Y1aGVyL0U1M093cGlRcHYxRU1VZWJBZ3hsQlEyRFQxL2twdzZrTTBSeUZXejVQVldWaW56N01NbEd3SmY3TSt3d1lwMFJLbExTalNjY0N3cllpRDcrWmxoR1ZvVTJzV3pVMWxRTmNLZ1BCQWI0cW0xckpmckR6cURvY2FqZzA5L0ErWW1GaGRlYnJsVGV2ZUdyOG9idVM3N2wxZWFJY2Q2bWpwVDFpUkNXTS9wZjVlSERteGJaWlBOcWJuTXlndW1paDlyU1Nzd1pPc2d4Y3NrcEpRVUxiSUJKb25YYUFCM3ZlRFMyamttUnMwMUtHSERoR09vMHBLbWhPa3g3NlRGYnZSMElUdStMUi8xbUhEQVVXYzhSWXhMWWJwVnFZaFBPTGw2NVpESk40djMvc2lLM2h3eUFYYWtmbVp6cmlCSFg4ek11L3NZMFFDejlYTEloZXpNdVVDdHUzdk4xdGt2NlRjTHpTYitBem1NbDhoMTZnQi9hcWZmSXVaZEYrNU5WRjZXVW9XenNjYm9SVEVqT0l3blZhMm43akgvdGxuTTd1VUZHR1M2WlVmWlZTa3o5UlZiT040Zjk3SVFiTjhwNFpLRmRseitaZGtSLzYwcFFuaEhWMFozQlRlT2xBamhzanBpeGE4TVVFTWRQQXNyV1RKWlFKV0lRU2d6cGdMRWU1UWN1SVBoVGxTSEJKNmx1Y1I4ZCsxTHdyZ3lhT201SE9FZWE1cnVnVURiWnEveVBTWU1IMFBFSGZseDRQMi9GSlRYOUFRUlJpYXN5cHlJTjhPUERob3lKejZuMGlMb2FzSy9oY1E3bnpKM05nbFlrT05HQTRXdm51dG16YXJzQWtPa0wwWjg5T0gwK3QzMURhbmVGL3NlY2I0dnpOUWJWNUZ4Qlppa24rY3dUejRLWnJnQjJpSHBlaEwzSXhEOVNINldDdkJwamU4dTVhZVhHWWhxbDRqRTllcTY1V3J2QmJ0djZncUJkcUwyNlRjY3ZpM29tYVAzZDBjak5YbVNrZDNNbkJHMVVQSU82cm45c01xQkNUbFVWWHNEUDBCdm1GQ2VZTWFSejZaR1FIUm5zK25GbDR1TFNSaEtndzR5OUsxa3NxeFhNOEladnBFVDBKOWM0UmlrajVQMFIxbUV3VU04eTFpQUQ2SnhESEpQWllIOUVUTGZKUzNFTHBrbzd0aDgzMy9HQ0tkOFpNdEVrS3JSVzdMNUM0ai9FNjMxdzZSa2UwV1F6Y1dwdi9JWGpmWGljYlpKTW4ydVZhVk9GVGFnNkdzK1NCSEptdS9QcmxMbWxCeXk2OHRZYkIvbXhNMTlZMzVadVBFV0l5VDlxRXdtS0c5aXRWemxZcXIwNWdlQzNXZDIrbHMrVFB4Mi9DeHZkcm5FVXJ0dW9rZ0hhem5pVi9McGtLVytSYjBDcWlhRExCZG1vVHJ6b3lKdE1WeUI3RER6b0w0WlhHZnhWV2ZnZVVNVkZ5OFVGNEFqOU9RR3ZvaWFGd2o0M01xNnNzWk8wQUlvSURDdU1uTlFQYjlHaFY2QkNHTDNyd1dMYjc3Nko0Tjd5TEVEL0sxUnRudWwxU2N6dUFkcWVlV2VVbGRsU3d1SC9BZGFsb2w0N05Jc2dzN0psVWQ1a0ZraWJmSFdac25FMzYwcTNZR0Erb0RjL2JySGNIOFMxQ1JRbFU4eGtQVFR2a2RGWVlPOUdqUVhncVpHeXV4dkxaUWJ2WmQ0RlhMQ04rMGFSbWpPa3FxZC8vaFdZekRmWHdhVkNacDVjN0hUZzdERjluQWNheXY5ZXNqLzQwby8vTmlzUXhMdzBibVkxb1o0R2tMVXFMcWFwUDZ0TzRMM1ordktXdDdZQXQraWZyaXVxQ0ExNTdVWUp0Y0RHU1padzdHOS9WNnVwMFp4ZlFaNVM2UmlsYkwrYVRRTnhrS1JoRjM3Ukw4cjNTekdHYjcxdlpmd25aTUpqem9CUmJmQ0xqQnpFR0NmcFZKOVNFN2pGYVBqMGRtVTZFSEVycTFocjgzM0E2QlpYSTRmSDdmczBnYSszY2o5dHZoK3RLa1ErRWlvOGdGQ3RvbEV2eHlKQ0k1MXJlaUtoalFWREtIWWtuZFFUMmIyTlhsQmtqWGY5RW03K1pUalJncGRZUWwxQXhnN01yNnVBdithd09ZcDg0ZTZOUjRVeFRFMmJSY3B2SzJueHJNWWxydDFXK3NPd1U3WXZ0ZHBWcUZaanhIYXdZcFdLY2VzVjlZY1BHNGdob3laUWtJZXlMc2FjMEFsWDIyaWNaZ3R2SURjcGVncG1nTXY0OTZYb3pKTG80SW1qdjBzazNldFBSdWo2WDZhU2p2K0d2d09lVGJWaUFuZXVFVVlQbk1TZFNYRzFKRVFBQVJqQ0dZeXdpY3hlOEN6MWNuUENtUzE0ZmFwdjBrQTlybnI1Sk1EdE43THF4NkFGM2Q2ZGNCYVFKLzlRRHBJanpHZ1QyaWlXcWJ6OUpKQTVtQXJmemdlbHJQY1JwQ084TGhjeHZjSDRuRmdELy94bE1EQ1ZzNHRLZ3V1VVVWbWRBQlprbUZTTUdvTXlzZ2QvOTI3cCtVVGRSK2l1bmkzRTBkcXIwdHZIWG9NYmw4c3dweTUrZ0ZUZGpvT0FnOXRLUGZOTGdYYjR6Vzl4RlJTck5pM3ozc1BZZ2xwMlRHbzl0T1B1bEtHNzFhN1JLYjBQakxubUFuWHlxUEV3M0FRRThuUms2MEZpRFFPb3ZNVExTaFByS1ZjYVRpRldDZ1c5TWx5OVJtbXYyaVlZay9lZm5OejZsNCt6U01ST2Z4WXNUVU8zbUh4U3RrUXhaZ29pRThXTXp4dmo4eWFISzVybXJjcjZwck82dUg0b1krSTZINVMwdXdySitabmRNa25JYm9pS201N3Z3blIxaVRzWkZ5bXQwQURUa0tSUWNBeXd5bEVtYVFkS20rVFh3TnNBS3d6V1NGbHBBQTk3aWh3ODhWM3lhU3hGT29YLzRncWtxUWxSZW9NOUliZm9RaFliRkdSdDFVT2V5VjI5azM3WitCaXh0VXNtZnhEZDd5bTJDSEg3a2c0R254R0E4Ri83Q0hUcFZ6aDNjNlpoM2pRRWJIMnl0cmhtRm9BalMvbkV1ek1Ia2xyQnhkUGhhSm5YNXVWSDdvNEVQdUpCMEpYSU1MN3ptTkdZVjE2Q3RnY1hlekdPdXdDUFIvdTBNYkN0UVhKdWwwSmVJSjY0cW93YURHZ1dFbUc1UldNalNlQWsvRkVFTjVDaHdMMFk1dC9FaGhHU3AxVWJYK0MxQzhFbFM1ZzhFZDJRMG9keFlaM2lMb3pkQmd0MUNqaDFvUE4wUGdrZ040bXVZckl4ZDhHOXc0YWpjU2FGZmRvSzBIaDlmSmFHa2JpSncwUnRxNDQxQ1ordmFBR0daU0Q1bjRyUW42UWRzSTJUVGlEZnBrOE5pMVhZV05mdVlHRElFWEdaRWtUNzNLYmhMRVFxc1dGYXlYbWtWaUY3QVgzdkwyNEJ5TGRRN0dGZmFVbXN6eFR6OEx5YjB4YU05Nmd0UkR1ZElpckwrNWRlY3l2MnUydVM1NFFBNlFSdVA4a29QbjJpaW04QUVSK1ppcmMzWnliNWVXRXgvTDZxbVcwNTRqS0IxZGM0Y1hxTjFxSittTVgzZURrV2M0cDFZdzhWVC9lMEJRR1grVW1EM3UwNUE5Y0JwRHM5Ym4zY1hsSE1UckpQV1dzZUswODhrYUh2WXNGVzk5ck00QlorVzF3ZHlJWHhSYjY2cXQ0ZzZhd2FCSGpEc1BtNmdmMFNEUmN1MnhaakVVNWxQa2tsZUp3M3RWVEpFKzFFdmNIbTl0S2s1ZEJTMmlKd3Yyc2Z4RGhhMXEvNU01M1RYWU5uVEt6SzFiOThPb2duYVZFK0NLVGFtaTlVOVBhelk5WityS25ZMEt4OXhvZnRXZGxQMndNeiIKfQ=="
}
}
}
}
where action_result is base64 encoded string that contains JSON action result object provided by the client app SDK:
Response
{
"details": {
"MD": "NTZIN3lTM2RiQi9UVUx5NVZIT3cvZz09IQ6O7QVX4dzIHCCOufGyiIgNv2sAeE1aY3fdd7Y6L7hGcvQ1IrhVvj7H0gnOgP_E4RPfyuhyaw8tu0EuoeSAIi2R51zFoyMIPhXW2YiZMYJ41YYrkcpp2Nl9-MwgvtxLcAQtFqqxzmWafz0Xn-X6yprzSOXmYYyMbRBUhtnWJtF7hhSLBlMrrBAiU3B13kmaXsG5I95z5of7e6PUq0fBt04Dj6PAcD81HDdKQkDMpHfG4Zd-Alv2nBaZcp6eGuEeHA5qApTwkAIiwNLuIhpeWKNRI-C_7fP2ac3-ostZtoGUDLfPJqA9MPDqdL0-R7E8PAWO5jtsQCzAmOmpZRvfcvpgKQbHlQcn5d8vmggM8wzA_4LSnDA8rbmij9MJcVrd36_Ji2y_XmYqu1yY_iZUaYwcCv7YCpCOeEpvOWkx8G4C0rH9ZMVUljhFcNhBCMrXJiiB5FQHe_txWpY34Wkjobzey7EUU3AJ4yVXORi8tBCIKZaagmfD6GFxt0EKOarWb1qu-60wTH5HQGbZBw",
"PaRes": "eNrNV1mTozgSft9fUdEdsS/MNLfBvS5HiMM2xmAug+GNy4C5bMBcv34pU11dM9sTO7FPywupVOpTplL5SVoZcRWGnB76jypcr6Swrt0ofEmC1y/faRpbIDhFLKgltkDR3Zf1SgFaWP+6F5u627Cqk7JYo9+Qb9gK/tGcYCs/dotmvXL9OyPIaxTDCXKxgt+bqzysBG5thHWj5Dnw74+kCqsVPKtX8M/xyuNNqidX+yRYH7lokK9glEcVk8d0kvleB8/vdQW/WawCtwnXGIIhKIItXjD0O4p/RyffnvqVm5ePCfZl8mSWVre3CcDcwFAEWcGfNatpmaqw8If1kqJX8EdrFfa3sgjfxqzgD3kF/3T35hZr5NM3rQA1YU/alXFer5ok/w83icngqV/Vjds86rW9gt+lle+27RqoAseA05bpoj0b1RKnEgrP8Drfq1P4T5NV6CdrhJycmv7PUSCLyipp4nyNzjY/FSv4zRX4meT1Sk+iYpqsCl/6PCvq1y9x09y+w3DXdd86/FtZRTA2BQIjS3gyCOok+vplHhUGQnEp1yvWLcoi8d0sGd1m2ghS2MRl8PIx4V9AojCKvEH+Hvb+7z5KFF+/wJ/c+Zsof3Csqt3f69hF34C08BK+ZS18OWnC65evv9zJXBJNm/F/merHNDOC6WaPcE1SDLQMxX7RhDd1GHrfu8MliKOTVE+J+my5gj/cm+TPi/kR/2xobgcbOoCRhbeWYzMPMuPtTtuk9U2obtHh2A49d6RQw7/e4lNHZ63ECpccL5LyfFYc1vQWCTqSpgRb1f2fX1H8X/8otkN9CQOFEpDYBF7D7JTN/kFKppvKp4y6svaSv4oXvBq6R3e+yrtI1RteRnkb323wyvcsRbcgH8vPeTMj7rY2WYfj/Rr6EEJcFLcGA9hpW5Gp1FxuYkRz6YNIXGPscUdubK+MxjhNmJxKyFDiq4uibMAS7NbFE3NGdOQzvOGcJe0++Exvz6eSon14Z2dkPtCLNtgAng0XgVEsgw193+I3lHPP28t1gMjMDIOlsGz9iAzKAE7JGREWU0JlSnV3bWvbaa3GsHRIALutuI2PVUuQLb8QotfXORmfErASw2HOzJlElpzbuLOkP7wp3kZ2p8Jl5ddTkRZlV/x2PL2CwA6LF1MA+sszsdULG1ZNcpkqpAl/O879vx0+hujGh8i+yocV/Gf453yfMNaSIHDqlWVBUrKsylF4Lx6DkL/IBpCZKL3HabJddggD1HoDOOYg6X63V23OVNUDx5CMs8kyL2Es/bQx5uURNszgWmjsF2mkYuYQbLPcteQ42J56fgQaE8kmA0qJTTepZZkPYePsVVPq2RHs5z7bACkpSQxxnhE5gyckzu4kA5DS9TTKWXnmDGHSnYbjT10XjvxBAukWoCeeiSXWSLue58BxRo0MBjUfM6KLkW2AEZ96/WfvDz13BdK7nwZzmv2UdLvbgzlyvkc/Ip8R3+IXNvLNwcjMTxjOOe8R13JuNrZBHINXJUA8/QK9tDMtsvLyJe69rbsudJxq78XSEeLWl4HKMzMiowIuingFcJOVWrKTzADBrzUjX+aMLCVl4ymmcxBS4CUyTXs4CzlIs+f1ZfTwbdb3oD412Uw2d/sZEamMVsP8AZfkNM40h8pMgUoXBdEf9letVqslEDWwQU/6rUrvPU0ddhJRi0ubnCpcu405ULxi47bQzhpnRAvNHROWt4lxENkSDpmSdytKPg+LUHTuRSbrjJEoREFuzX1n0kxUNnxq0U0oX8MSi5fQuT3DOxfYlx/lKl7JPk0jflE/JsS25BOY2UU0vpGivsWMBU814/VGNELbe5AqwtdgEAmsNzeXbrxXlKa6g5YrO7L2WHFGNNDNtr2kyDYwWHNnqPhR47aiC4uC6eN2CiEK1rkU7t93go7Z8aH0ZLyDMvJepyzoeAA+VcKM+FEP4DhlhgeMTw31NfBGawfGS6lVfKlPVEM5Hp2ERGpuhrRONleDOea6SbHRSOmbpV9WRrmzZ8RG3XOgsw+1Kcjx6DDwJQFx04ZAX3I8aw2kc+jPcTEsj0BBWAZ7RKIc7LdFb4f29uR2SieZyaAg5l3zZ0RcpxsXrdWH0hIJE9ZijDs+Zt3PdVoXtHNi8QGdTqt6cVIgIuxFCC6KxqOcQJD3txtaRKnKoEdeNIvze11nOeYYGjMaphifGf/QW0I6AuE4UTEkB3Iqn3XR2d0FEUf3B2pnqmMmxBpxb4LQNPOFi9m78YIzKelq4YwoXXXlnAqc3RBLoXcZ4tHVGEu1+pkf4KWHQAukDhK67+vKkVubuCPDZibWP7PYrPnJqH/BrRMl/iDNJ6n+iWKVKsndavjMsX+TQfm3Sr7cI9AJE9EIvN4uiOP4f8WguMRFvTQCbPqjsvlk0EmX9hL3oev0kS8k9vRkKrbrQtXSHMciIjPNmNPAqH6evR/U9nlPCryc+YV2c/Lsap+1TNKkjp8jEzlw+0Nkklp37Ny35bv90eB+ct975X9iwF9yn0xALK3Tl6MVxHB0rqyWNcp9s8j9xLXEwtK9a0Sx9YkKju+crJ9UMqr9fgG76VncUVGGmVqCOQoeu5i+07oiKjIqjCzfQp2yz7oB72LDCV25PvghSwqMCJPIsSQ5ZEaMnCo66BByGIRbLYe0h91xAhaMk9MPm+ZhkpGi5Tl9ISFWOAcXMuss0G6ca32VhCPY085wp/rr0TBdg3tH3LAehtnOvZHKPWK2Nw6v9kelRbmQtIKURXTPDNra6M4E6tYDKGNrKtb04PXY5QHxx7Hke0/wvXxLXWZE5bqgjoaB3TRL6CHiVkc0q5TGLQ6l5GLtWiu0uv3lBh8JFhiVsTiVEjVgqMrvDTSjEFzTRZKF6if3zYjgV3eBd+7j5GpXeTrDaJAnL04PlRzSKBzqiVDVLU2rNnXtKwjSm4iWqBosZkTPov0wOBXNMqfS86miqoO2d4Jpf5xS1SuVHa+1UNgyV4IKEI3jL82SFQHRtbf4GkTQdAAUyFjGSqnY71ySgWKJk4rpEhAnLaUKpgwhgaa31uYKCzDCEI1/q+/i9rJB7g/vcAJVUnGE2ZddmiCdzaYDoguBzRrU9v1sM/El0Q4OgfAQX9Kbs6Lkur4QBtqDzlB0tKDSUZ1tvByF8hGZC6JmOCWiNcJYiK5R2uMOMvY5S0WHvUy/Z0ahCp8ikb6DZEItseUxb5HOC4PLprlJspkcxwo7hoJ3zVS0zLDb8j5gFQm0O38rEIow1P/GffDHDfPn3fP5GH6+0d9ea5/f7v8GUpcS2w=="
},
"paymentData": "Ab02b4c0!BQABAgBTSQbui72ia/Pt2/BvrETplEE7eEu8bY0G45qYfIyNmOscC/SGzORhsz6FL2eSszivxLP7uslEuukL1DFMe+bxFyHNUIAJ4bzYdK1pHgZZLJwCWSdVMw6YFwAynvPIXEc3iTJRdwKJCqV4ulinN6WROZoqWCp1sKN4xyb0msW3HABSbYM/DfKev65BsSLpv66QQ00dwrOESDvdJO3KyvyZHOyw3q9U5CE+pkfWBI/vnwZ0/Sr6TiK2OLWb+NizIt9QOFJcbQMBpUruJhERX6ii6HH1GWVI88JE5kUjHlPbLbmmNxH3NpHC7DmWy3D5iHUpw7/74yTONHEh79H5Pm6PTy6M53Ab98k1AXXavpj6VDanq2xVNhWTXT31EKLhAHrfHMudUkk9C5Po2j3f9tQvZXnuV9M7k9E885lGL06GnowlxgYO10qxir5J+/Il2lzXgL0se4sR2c6E7JvloMyH/fy/XQuyUzgeV2SL6wrqILjzPIQT1zMeYm7fRd3L6Gee5m1gmON93H4Oj93aE/VLJYedAXHFLleS81eGqMORG5jDoaRBQDFB7c8v4LOthuV9J2t/MKuI8rLAwelYdGyWeRj4E3P7uRqxWTUSxFSBQJLghlz8UmWuuys7gKFN+reVvZwFGJsf/ZO/WPqs62vfpwytemY1z+uyX6wNjzlPOxBQc7cL6bcm1r2NXX+gI49QAEp7ImtleSI6IkFGMEFBQTEwM0NBNTM3RUFFRDg3QzI0REQ1MzkwOUI4MEE3OEE5MjNFMzgyM0Q2OERBQ0M5NEI5RkY4MzA1REMifWFs4xMR5AdJtkVefMtdHpuUhlvkMVCPt+zD9hcopMj13am52dXRlwm0G03zzzpVtBWPfgQRzXBAbf4ulqwMfUvYd3JdjuOniF8HDmvLSjWSBZexF8M8EXG0c35rel52Y0VhIbn09cS6YX3D+pX4qlJ5j3GW7dwTeMaUT+wG3Bre380Jib5Ds8g5bUlKjpio34ifQ8CGj0fiRZvXcnk9NgabEmFqBeWTTjLNbnFaV32/9evCCqPLXVGUZ4f6l2Fyc+tAQl3FqP9RxJetVF+kHg9my8ViVc+UjiLB9QTZLVdc9XrcAlQBAC1Z2S0SNz3jdx7KdPNigSJsIGiyIjwbpKm3Si2yWjrfB1xSg7SimKj487dHpl1w0NU4X7F/uLCcGDbTD0IoycsBg6g+tNfJyw19Ww3zlb84R3c6Lm1taNdXqCSXxBzE8hKMn0HfjBRJFfU73rXM/mTwhRbI4dKe0w/O9oWvAR4MHhRrHdihPLnSGdlOGRdTjnkzC4EHPsNiJmJ/1YTq1J5ABsL0gzsWrKmsw9bNtj1qbDFL049fppF8cIYicg+SOSxwT4InlSl6H0ZZzkKafGFzv6I03fVE7RJRSqTadzRPKQl481j0rqIMK9FHxOnx3DiU9REmSBz4yxY1bsPYF0gT3XQ7X7K9CORqb2+67ZgxGyHASkqV+Wes643P0ykbN+qxtj1wGLU+VJ5XFsB6ONN+tMQLF4UOHXpKEGes+id0ZjRwmqo71/qjiengfyCh7s34Sg5DKjb7Ctegx1JRxV8ROKbQJU+25QPq45lgCw2pvDpBKpvtaujfrWmmkt9/+fn3U+DXlUEwBmnI7i6NXzZa4qGampC9SXabU0cF4SIH2iPkL+OQQgKZM0yTAaPqo9LJiW4zczZ3hzPuvDpppGuQsjcyNLXYAnIQGvPYXyeSH5ylFgCEPUtfdE8TD4g03TDoE+tKLlhMPDRREbK55nI7DbT5S0z/nwjdFjnrgbmDZnBrC40yJZ8+i36HGCDL6mo25iQLOECNjHEDHDQ7QDFm89OwN8BECm2WyfxknmJX5GEmsrhqchbcHFdM8F0uYek9+PGMYvNo2efBvxecIehCJaQPeSgM9q8A8VV1qw57+le60qLjZAhgKlOqgXHhp5qRkbKnSJVRb31hLRAQhaAYXUpwy/SZ3atdTdnJwrBn6Rfp4UIkWZGjoxaW9G/+YLhKZ0AscQRgxjwW4m7nf/xJZ2sB3uZzFuxmrbLq4TffTL0Qj9IQwWsQqVBlSmzv09gx564BPMZ6T8G1skYrztEe/W5poauJBJQd5SYilGyx4iK7kSdJoeahENOrFi8R8XNC4oxIneB5TrbknD1+Wzbnq14tb8tBbKnwOD9tL6UxamoM1amoR3BEqRgF94pR9zMUOeQK44Ui++AorlvbjtzFcGg7NLxpc5JqJTUpgIVWbv6cHHmygY8lp8c7QO/EKDAjtBvsg/55iZqh2fPdu4K3wcX0693qiZvgzwt6z7NJhfioHtOg6vac90ol97ZzaOyXg8KtkSPnNXO2qKIqVuaKVZUldTXZ3Xk6nR8LXwYDw/uyfX7v3ZI2IVjYONQgP5sd2SldCfrmdhmix2T0pE7Nf6DdiLk3e1Rbc9ikXkFxwxtP9TXONoMhomTy6mlTTMfAukZvru/TX5+joH0a48PoKgtJ/92oi8vy8dLMS3HsG0dQnUL+/MWgT23+DG+91qAVrEwrEHxA009W25aIQafXxyZGs1txmFNCVzcOfrs2Q9ENcMmUA4ksfPM8UcczqpQ+DYYbL0rcZAqtr5UPDe+cb4BWTHWuDUu3yczuVU12XLXlO/5XJqYvp0VO7XSc/ei3m6kul7rkQOmROZBALkwX8UGoYEDGVEYic2+aJyQlZwdgsUXDwW7CJu/f5PE93REyyehbK04abRsV+TiKZ+/HPS5UkIMybXQcDoG5udAAIEhVMVuWRTb1iCHksS0ieVWFE28e8JeAvopYOSG48Ji3+n+w2Dp2LXS8+J8I0dpX4o3nc41CG82SRjoECyXujeCQ9dvzp9XFsNHWKNqxS/4kmUQJCyX7Q/YcSBTFp7jeYAM6Oq/xD4RnHQ3lws8jRvIN9BY12zhtrsG45FaI0owUkaPRUbG41WM2RJA9z1TC4wcTOqDK55wsX6kgu5K0+L0jalbcj3qLmG6nu9nmHn92xlVbyofFW9r0NfQOvEMzuqTOqVqUToD3lX+R8p8ElPEelf2x5fh7LkqOXL42vsAvZjRRSBSHMq2loKV5her/E53OwpiQpv1EMUebAgxlBQ2DT1/kpw6kM0RyFWz5PVWVinz7MMlGwJf7M+wwYp0RKlLSjSccCwrYiD7+ZlhGVoU2sWzU1lQNcKgPBAb4qm1rJfrDzqDocajg09/A+YmFhdebrlTeveGr8obuS77l1eaIcd6mjpT1iRCWM/pf5eHDmxbZZPNqbnMygumih9rSSswZOsgxcskpJQULbIBJonXaAB3veDS2jkmRs01KGHDhGOo0pKmhOkx76TFbvR0ITu+LR/1mHDAUWc8RYxLYbpVqYhPOLl65ZDJN4v3/siK3hwyAXakfmZzriBHX8zMu/sY0QCz9XLIhezMuUCtu3vN1tkv6TcLzSb+AzmMl8h16gB/aqffIuZdF+5NVF6WUoWzscboRTEjOIwnVa2n7jH/tlnM7uUFGGS6ZUfZVSkz9RVbON4f97IQbN8p4ZKFdlz+ZdkR/60pQnhHV0Z3BTeOlAjhsjpixa8MUEMdPAsrWTJZQJWIQSgzpgLEe5QcuIPhTlSHBJ6lucR8d+1LwrgyaOm5HOEea5rugUDbZq/yPSYMH0PEHflx4P2/FJTX9AQRRiasypyIN8OPDhoyJz6n0iLoasK/hcQ7nzJ3NglYkONGA4WvnutmzarsAkOkL0Z89OH0+t31DaneF/secb4vzNQbV5FxBZikn+cwTz4KZrgB2iHpehL3IxD9SH6WCvBpje8u5aeXGYhql4jE9eq65WrvBbtv6gqBdqL26Tccvi3omaP3d0cjNXmSkd3MnBG1UPIO6rn9sMqBCTlUVXsDP0BvmFCeYMaRz6ZGQHRns+nFl4uLSRhKgw4y9K1ksqxXM8IZvpET0J9c4Rikj5P0R1mEwUM8y1iAD6JxDHJPZYH9ETLfJS3ELpko7th833/GCKd8ZMtEkKrRW7L5C4j/E631w6Rke0WQzcWpv/IXjfXicbZJMn2uVaVOFTag6Gs+SBHJmu/PrlLmlByy68tYbB/mxM19Y35ZuPEWIyT9qEwmKG9itVzlYqr05geC3Wd2+ls+TPx2/CxvdrnEUrtuokgHazniV/LpkKW+Rb0CqiaDLBdmoTrzoyJtMVyB7DDzoL4ZXGfxVWfgeUMVFy8UF4Aj9OQGvoiaFwj43Mq6ssZO0AIoIDCuMnNQPb9GhV6BCGL3rwWLb776J4N7yLED/K1Rtnul1SczuAdqeeWeUldlSwuH/Adalol47NIsgs7JlUd5kFkibfHWZsnE360q3YGA+oDc/brHcH8S1CRQlU8xkPTTvkdFYYO9GjQXgqZGyuxvLZQbvZd4FXLCN+0aRmjOkqqd//hWYzDfXwaVCZp5c7HTg7DF9nAcayv9esj/40o//NisQxLw0bmY1oZ4GkLUqLqapP6tO4L3Z+vKWt7YAt+ifriuqCA157UYJtcDGSZZw7G9/V6up0ZxfQZ5S6RilbL+aTQNxkKRhF37RL8r3SzGGb71vZfwnZMJjzoBRbfCLjBzEGCfpVJ9SE7jFaPj0dmU6EHErq1hr833A6BZXI4fH7fs0ga+3cj9tvh+tKkQ+Eio8gFCtolEvxyJCI51reiKhjQVDKHYkndQT2b2NXlBkjXf9Em7+ZTjRgpdYQl1Axg7Mr6uAv+awOYp84e6NR4UxTE2bRcpvK2nxrMYlrt1W+sOwU7YvtdpVqFZjxHawYpWKcesV9YcPG4ghoyZQkIeyLsac0AlX22icZgtvIDcpegpmgMv496XozJLo4Imjv0sk3etPRuj6X6aSjv+GvwOeTbViAneuEUYPnMSdSXG1JEQAARjCGYywicxe8Cz1cnPCmS14fapv0kA9rnr5JMDtN7Lqx6AF3d6dcBaQJ/9QDpIjzGgT2iiWqbz9JJA5mArfzgelrPcRpCO8LhcxvcH4nFgD//xlMDCVs4tKguuUUVmdABZkmFSMGoMysgd/927p+UTdR+iuni3E0dqr0tvHXoMbl8swpy5+gFTdjoOAg9tKPfNLgXb4zW9xFRSrNi3z3sPYglp2TGo9tOPulKG71a7RKb0PjLnmAnXyqPEw3AQE8nRk60FiDQOovMTLShPrKVcaTiFWCgW9Mly9Rmmv2iYYk/efnNz6l4+zSMROfxYsTUO3mHxStkQxZgoiE8WMzxvj8yaHK5rmrcr6prO6uH4oY+I6H5S0uwrJ+ZndMknIboiKm57vwnR1iTsZFymt0ADTkKRQcAywylEmaQdKm+TXwNsAKwzWSFlpAA97ihw88V3yaSxFOoX/4gqkqQlReoM9IbfoQhYbFGRt1UOeyV29k37Z+BixtUsmfxDd7ym2CHH7kg4GnxGA8F/7CHTpVzh3c6Zh3jQEbH2ytrhmFoAjS/nEuzMHklrBxdPhaJnX5uVH7o4EPuJB0JXIML7zmNGYV16CtgcXezGOuwCPR/u0MbCtQXJul0JeIJ64qowaDGgWEmG5RWMjSeAk/FEEN5ChwL0Y5t/EhhGSp1UbX+C1C8ElS5g8Ed2Q0odxYZ3iLozdBgt1Cjh1oPN0PgkgN4muYrIxd8G9w4ajcSaFfdoK0Hh9fJaGkbiJw0Rtq441CZ+vaAGGZSD5n4rQn6QdsI2TTiDfpk8Ni1XYWNfuYGDIEXGZEkT73KbhLEQqsWFayXmkViF7AX3vL24ByLdQ7GFfaUmszxTz8Lyb0xaM96gtRDudIirL+5decyv2u2uS54QA6QRuP8koPn2iim8AER+Zirc3Zyb5eWEx/L6qmW054jKB1dc4cXqN1qJ+mMX3eDkWc4p1Yw8VT/e0BQGX+UmD3u05A9cBpDs9bn3cXlHMTrJPWWseK088kaHvYsFW99rM4BZ+W1wdyIXxRb66qt4g6awaBHjDsPm6gf0SDRcu2xZjEU5lPkkleJw3tVTJE+1EvcHm9tKk5dBS2iJwv2sfxDha1q/5M53TXYNnTKzK1b98OognaVE+CKTami9U9PazY9Z+rKnY0Kx9xoftWdlP2wMz"
}
In case of a web application, the app will be automatically redirected to returnUrl with a POST http method and a request body that contains authentication challenge result, i.e. MD and PaRes parameters.
- In both cases, MENU backend submits action result details (MD, PasRes) and paymentData along with threeDSAuthenticationOnly: true to the Adyen API POST /paymentDetails endpoint. If authentication challenge was completed successfully, Adyen API responds with resultCode AuthenticationFinished and no action data. Otherwise, if the challenge failed, Adyen API will responds with resultCode Refused.
Meanwhile, regardless of the /paymentDetails response, the app continues to the next step, i.e. order create request during which the actual authentication result will be checked.
